1975 Yamaha MX250 (MX250B) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1975 Yamaha MX250 (MX250B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

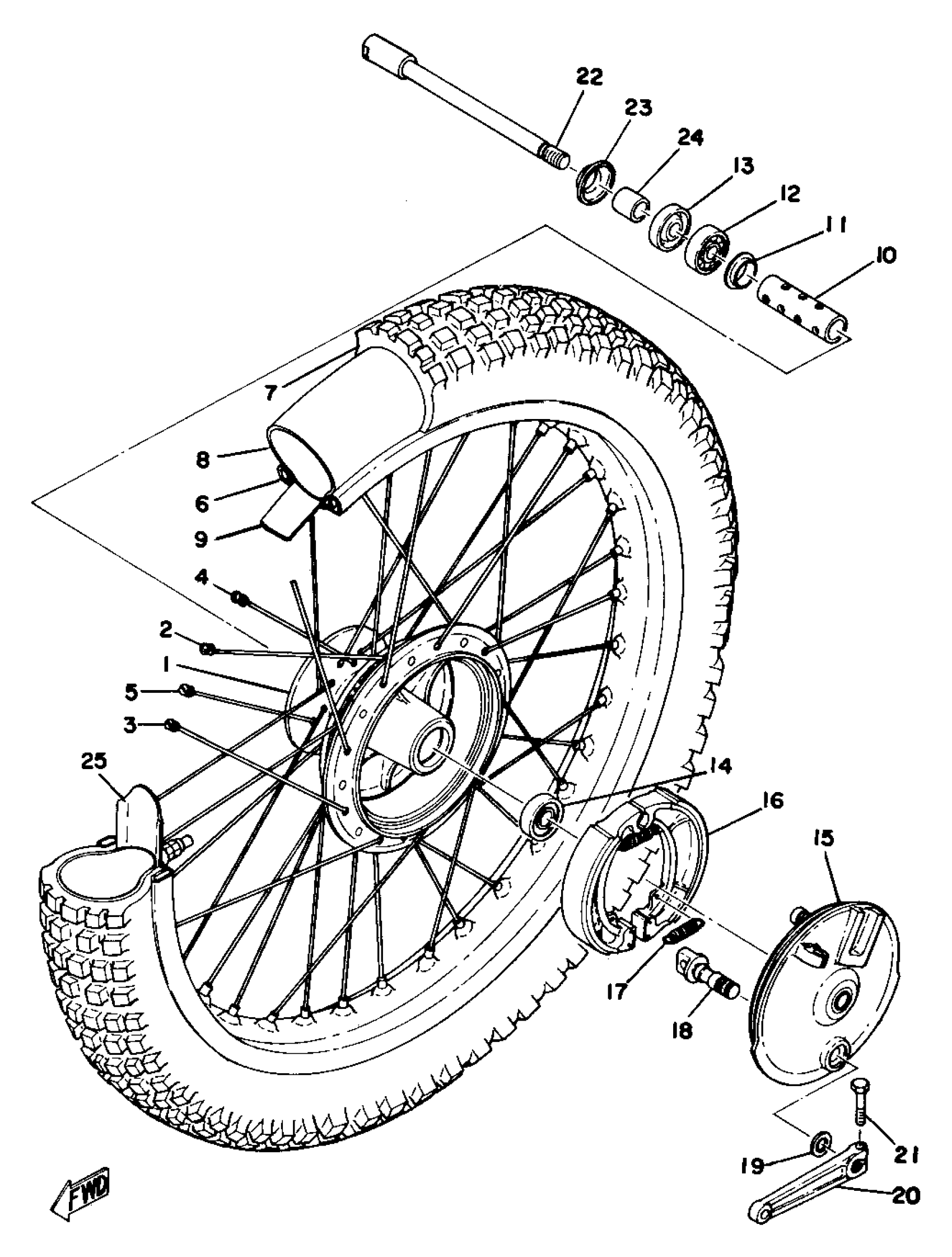

1975 Yamaha MX250 (MX250B) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPOKE SET, FRONT

(322-25104-01-00)

1
Out of stock

1

HUB, FRONT

(322-25111-00-98)

1
Out of stock

2

SPOKE SET, INNER 1

(322-25196-90-00)

1
Out of stock

3

SPOKE SET, OUTER 1

(322-25197-90-00)

1
Out of stock

4

SPOKE SET, INNER 2

(322-25179-90-00)

1
Out of stock

5

SPOKE SET, OUTER 2

(322-25189-90-00)

1
Out of stock

6

RIM 1.60X21

94416-21326-00

1
Out of stock

7

300-21 M1B (TT)

(94130-213A4-00)

1
Out of stock

8

TUBE, FRONT (2A6)

94227-21123-00

1

$43.59

In stock

9

BAND, RIM

(94327-21024-00)

1
Out of stock

10

SPACER

90560-15116-00

1
Out of stock

11

FLANGE, SPACER

146-25116-00-00

1
Out of stock

12

BEARING

93306-20205-00

1

$32.63

In stock

13

OIL SEAL (20X35X7-136)

93102-20009-00

1

$9.10

In stock

14

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

1

$21.28

In stock

15

HUB, REAR

(483-25311-13-98)

1
Out of stock

16

BRAKE SHOE KIT

322-W253A-10-00

—

$31.99

In stock

17

SPRING (5T9)

90506-17328-00

—

$9.32

In stock

18

CAMSHAFT

23X-25151-00-00

1
Out of stock

19

SEAL, CAMSHAFT

137-25159-00-00

1
Out of stock

20

LEVER, CAMSHAFT 1

322-25155-00-00

1
Out of stock

21

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

22

AXLE, WHEEL

(431-25181-00-00)

1
Out of stock

23

COVER, HUB DUST

322-25118-00-00

—

$16.17

In stock

24

COLLAR (322-25183-00)

90387-15418-00

1
Out of stock

25

SPACER, BEAD

1T1-25194-00-00

—

$53.98

In stock
