1975 Yamaha MX250 (MX250B) Rear Cushion Diagram

← All diagrams

Find the part on the Rear Cushion diagram for your 1975 Yamaha MX250 (MX250B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

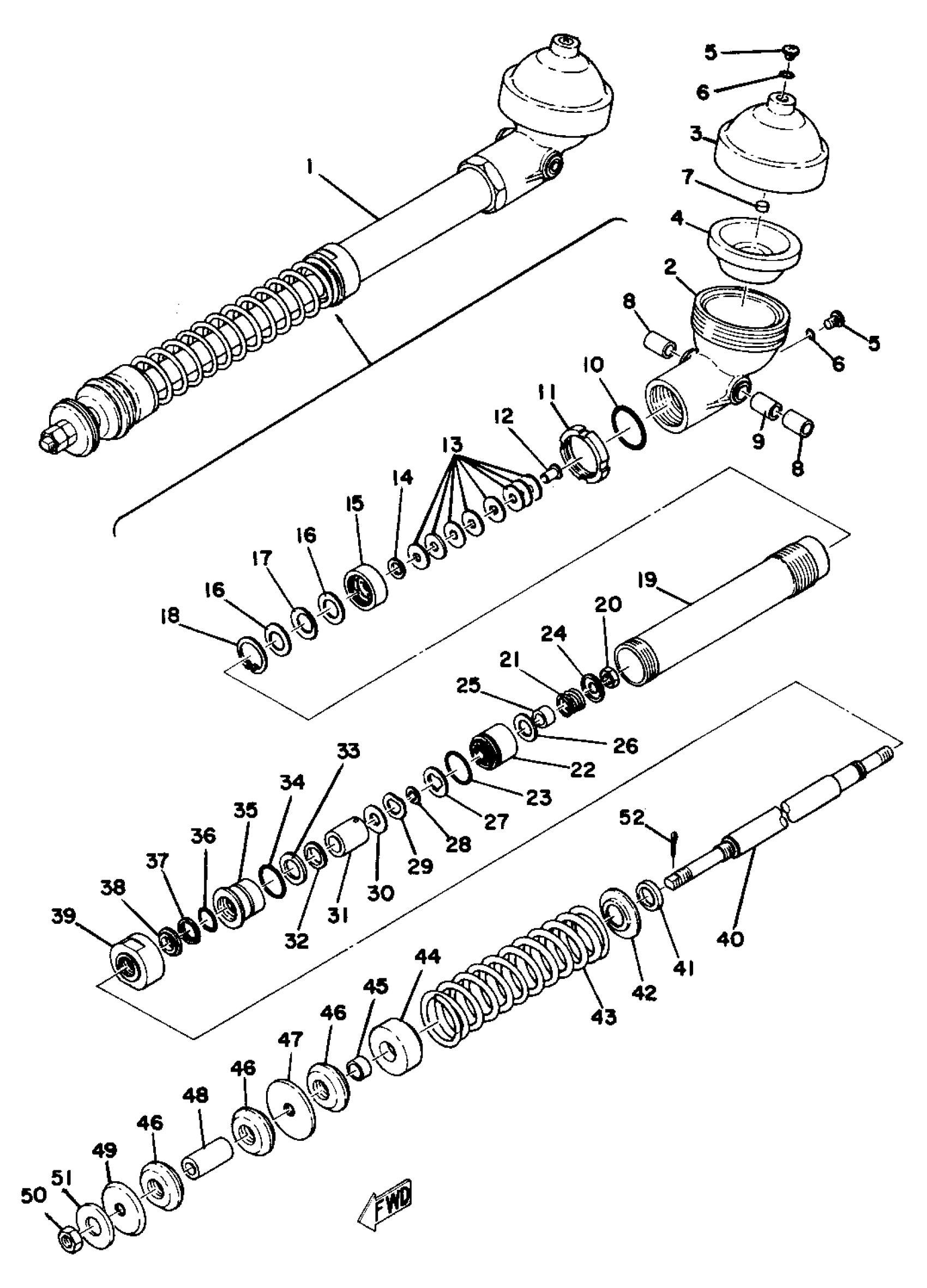

1975 Yamaha MX250 (MX250B) Rear Cushion Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHK/ABS ASSEMBLY, REAR

(509-22210-01-00)

1
Out of stock

1

SPRING SEAT SUB ASSEMBLY

(509-22406-00-00)

1
Out of stock

2

HOUSING, MEMBRANE

(483-22411-01-00)

1
Out of stock

2

. VALVE SUB ASSEMBLY, BTM

509-22405-00-00

1
Out of stock

3

CAP, HOUSING

(483-22412-00-00)

1
Out of stock

4

. NO LONGER AVAILABLE

483-22413-02-00

1
Out of stock

5

SCREW, BIND(2TV)

98980-06008-00

1

$0.58

In stock

6

O-RING (26H)

93210-06632-00

1

$6.68

In stock

7

. VALVE, RUBBER

483-22419-01-00

1
Out of stock

8

BUSH, BIMETAL SOLID

(90382-12019-00)

1
Out of stock

9

. COLLAR (122-148-26)

90387-12493-00

1
Out of stock

10

O-RING (483MXS)

93210-42263-00

—

$17.51

In stock

11

NUT, SPECIAL SHAPE

(90179-44068-00)

1
Out of stock

19

CYLINDER, SHOCK ABS

(509-22471-01-00)

1
Out of stock

20

NUT, SELF LOCKING (23X)

90185-12119-00

1
Out of stock

21

SPRING, COMPRESSION

(90501-29327-00)

1
Out of stock

22

PISTON, SHOCK ABS

(483-22431-00-00)

1
Out of stock

23

. O-RING

93210-31264-00

1
Out of stock

30

WASHER, PLATE

(90201-12525-00)

1
Out of stock

31

STOPPER

(509-22482-01-00)

1
Out of stock

32

SPACER

(90560-18143-00)

1
Out of stock

33

DAMPER 1

(483-22483-02-00)

1
Out of stock

34

. O-RING

93210-31264-00

1
Out of stock

35

HOUSING, SEAL RING

(483-22473-00-00)

1
Out of stock

36

O-RING (122)

93210-23029-00

—

$6.80

In stock

37

OIL SEAL, SO-TYPE

(93104-22052-00)

1
Out of stock

38

. OIL SEAL, SD-TYPE (SD-22-30-55)

93102-22141-00

1
Out of stock

39

CAP, CASE

(483-22472-01-00)

1
Out of stock

40

ROD, PISTON

(509-22481-01-00)

1
Out of stock

41

. WASHER, PLATE

90202-22091-00

1
Out of stock

42

GUIDE, SPRING 1

(483-22214-01-00)

1
Out of stock

42

REBUILD KIT

(510-20000-00-00)

1
Out of stock

43

SPRING, COMPRESSION

(90501-80362-00)

1
Out of stock

43

SPRING, COMPRESSION

(90501-80364-00)

1
Out of stock

43

SPRING, COMPRESSION

(90501-80365-00)

1
Out of stock

44

SEAT, SPRING UPPER

(509-22213-01-00)

1
Out of stock

45

COLLAR

(90387-16477-00)

1
Out of stock

46

. DAMPER 2

483-22492-01-00

1
Out of stock

47

. NUT, SPECIAL SHAPE

90179-16189-00

1
Out of stock

48

. COLLAR (142-22-48)

90387-14274-00

1
Out of stock

49

. NO LONGER AVAILABLE

90209-14059-00

1
Out of stock

50

NUT(6TC)

95337-14600-00

—

$10.25

In stock

51

WASHER, PLATE(3FC)

90201-142M6-00

—
Out of stock

52

PIN COTTER

91490-30025-00

—
Out of stock

52

PIN, COTTER

91490-20025-00

—

$1.31

In stock
