1981 Yamaha MX175 (MX175H) Stand - Footrest Diagram

← All diagrams

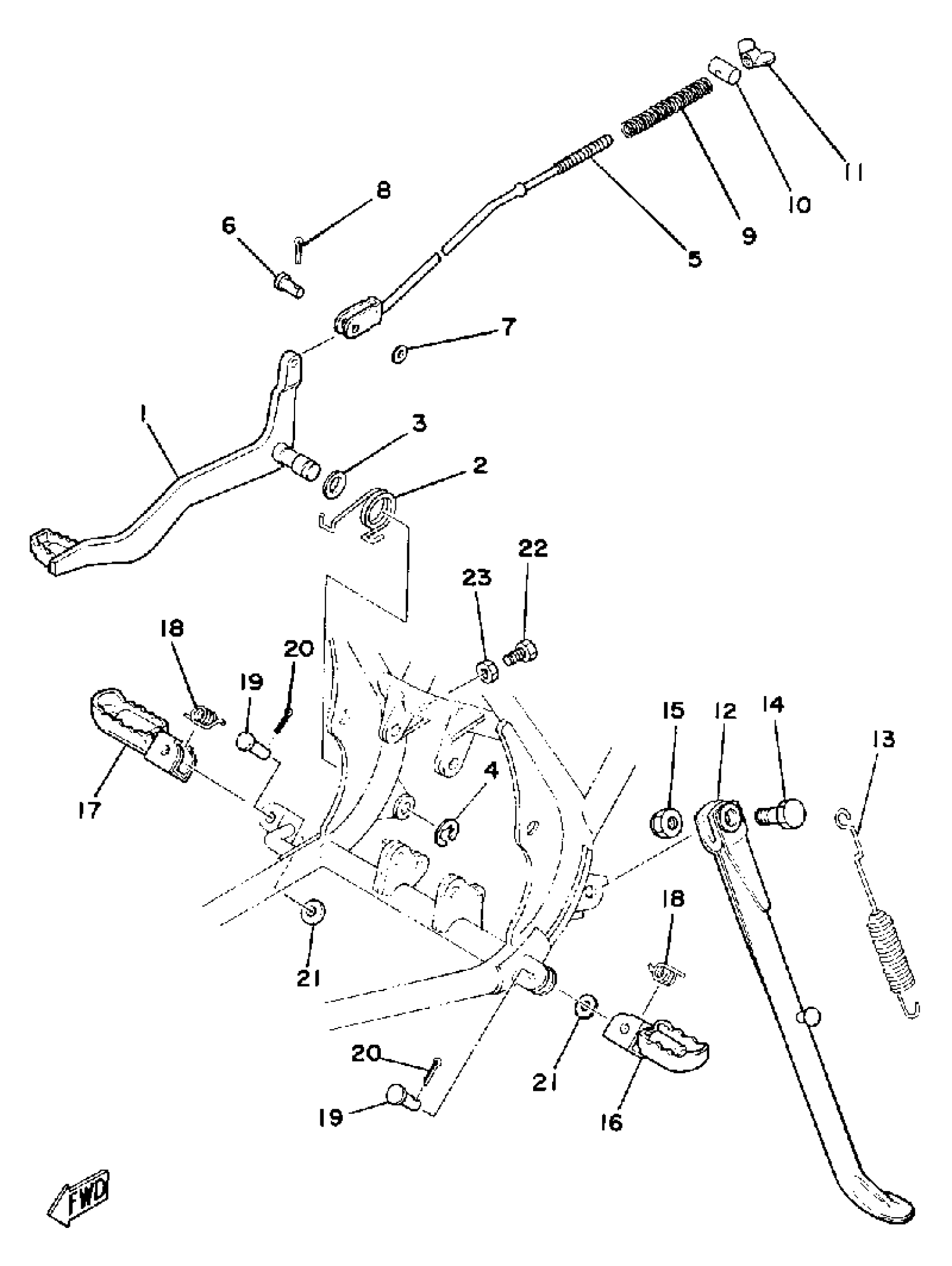

Find the part on the Stand - Footrest diagram for your 1981 Yamaha MX175 (MX175H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha MX175 (MX175H) Stand - Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

2A6-27211-00-00

1
Out of stock

2

SPRING, TENSION (2A6)

90508-32354-00

1
Out of stock

3

WASHER PLATE 611441260000

90201-14212-00

1
Out of stock

4

CIRCLIP (137)

93430-10015-00

1
Out of stock

5

ROD, BRAKE

1W2-27231-00-00

1
Out of stock

6

PIN, WITH HOLE (248-27228-00)

90240-06006-00

—
Out of stock

7

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

8

PIN, COTTER

91490-25020-00

1

$2.94

In stock

9

SPRING, (180-27236-00)

90501-10245-00

1

$6.17

In stock

10

PIN 1562723700

90249-12008-00

1

$4.70

In stock

11

NUT (25K)

90179-06411-00

1

$5.10

In stock

12

STAND, SIDE

1W1-27311-10-00

1
Out of stock

13

SPRING (434)

90507-29008-00

1
Out of stock

14

BOLT

90109-10473-00

1

$6.71

In stock

15

NUT, U

90185-10037-00

1

$6.68

In stock

16

FOOTREST 1

22W-27411-01-90

—
Out of stock

17

FOOTREST 2

22W-27421-01-90

—

$29.63

In stock

18

—

$3.26

In stock

19

PIN, CLEVIS (2A6)

91701-08038-00

—

$3.91

In stock

20

PIN, COTTER

91490-25020-00

1

$2.94

In stock

21

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

22

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

23

NUT(650)

95380-06700-00

—

$6.17

In stock
