1981 Yamaha MX175 (MX175H) Frame-Tool Diagram

← All diagrams

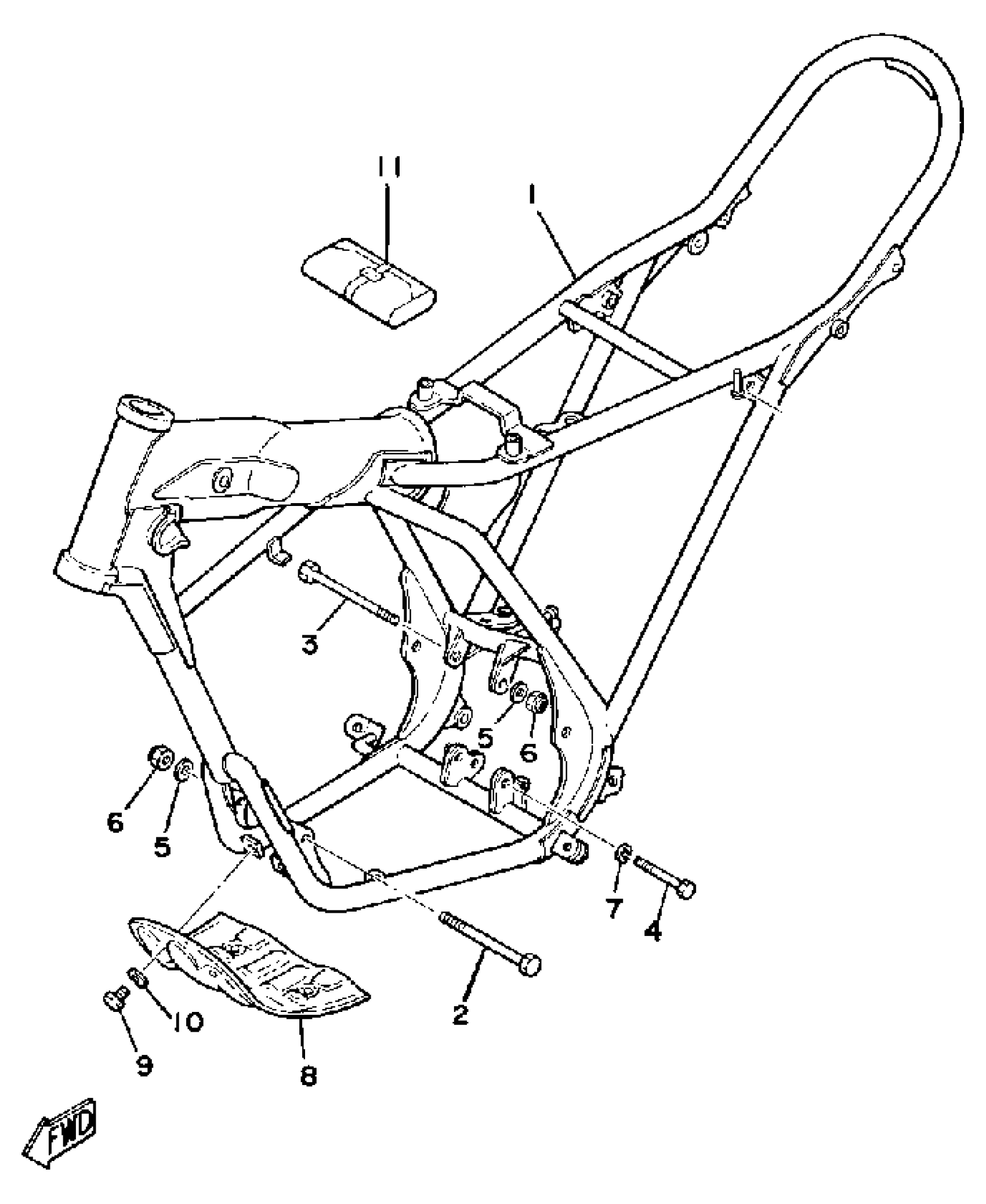

Find the part on the Frame-Tool diagram for your 1981 Yamaha MX175 (MX175H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha MX175 (MX175H) Frame-Tool Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(3M2-21110-00-33)

1
Out of stock

2

BOLT (1W1)

90105-08099-00

1

$5.34

In stock

3

BOLT, WASHER BASED (401)

90105-08120-00

1

$6.26

In stock

4

BOLT

90105-10037-00

—

$7.51

In stock

5

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

6

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

7

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

8

PROTECTOR, ENGINE

(2A6-21471-00-90)

1
Out of stock

9

BOLT (661)

97013-06012-00

1

$4.71

In stock

10

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

11

TOOL KIT

2A6-W2810-00-00

1

$87.63

In stock
