1981 Yamaha MX175 (MX175H) Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1981 Yamaha MX175 (MX175H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

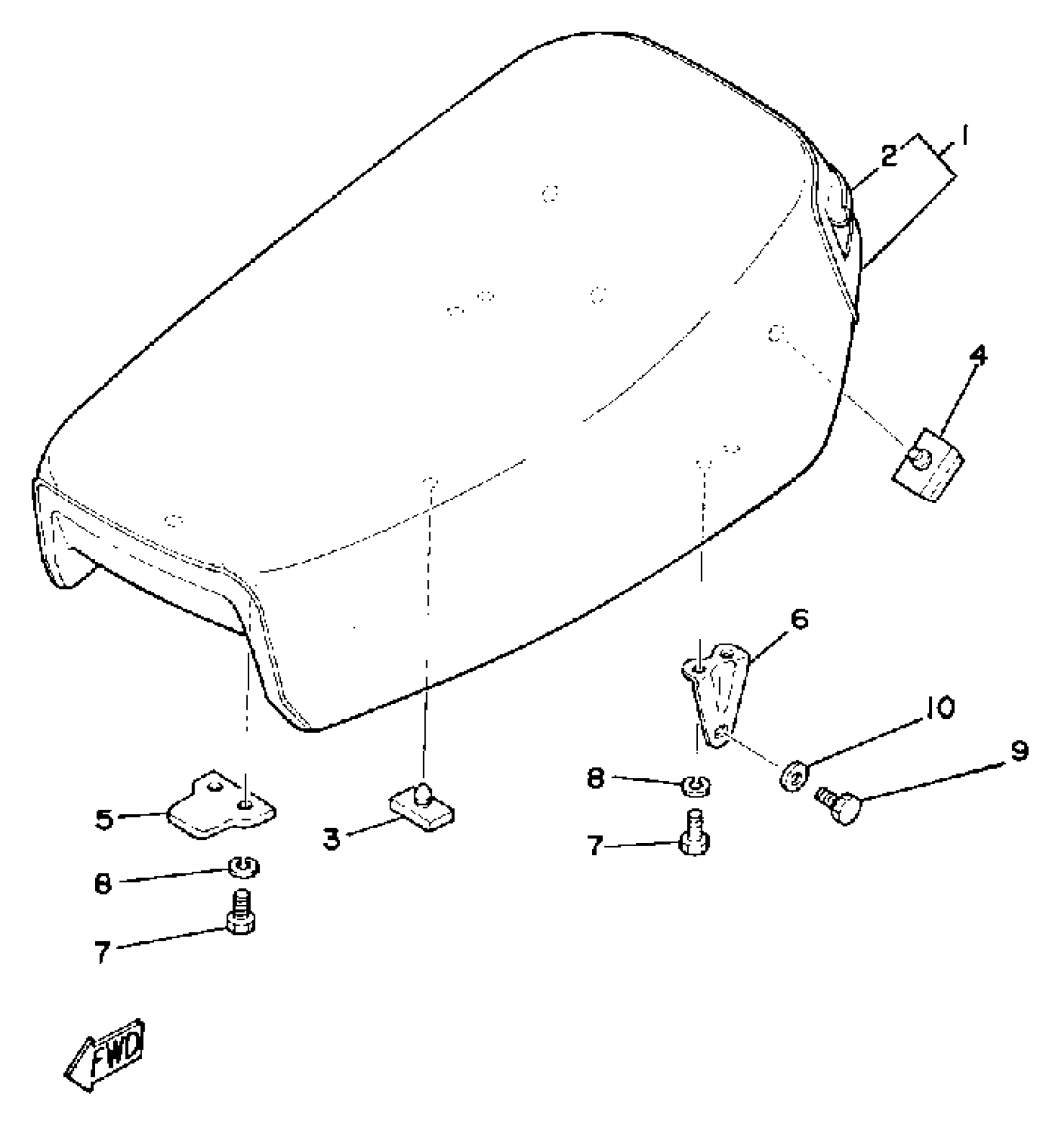

1981 Yamaha MX175 (MX175H) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEMI-DBL-SEAT ASSEMBLY (2N4-24770-90)

2N4-W2473-00-00

1
Out of stock

2

. COVER, SM-DBL SEAT

3M2-24771-00-00

1
Out of stock

3

DAMPER, SEAT

509-24724-00-00

1

$9.46

In stock

4

DAMPER, SEAT

214-24724-00-00

1

$6.72

In stock

5

BRACKET, SEAT

1M1-24748-00-00

1
Out of stock

6

BRACKET, SEAT REAR

2A6-24738-00-00

—

$15.78

In stock

7

BOLT (661)

97013-06012-00

1

$4.71

In stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

BOLT(62E)

97013-08012-00

—

$2.48

In stock

10

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock
