1981 Yamaha MX175 (MX175H) Intake Diagram

← All diagrams

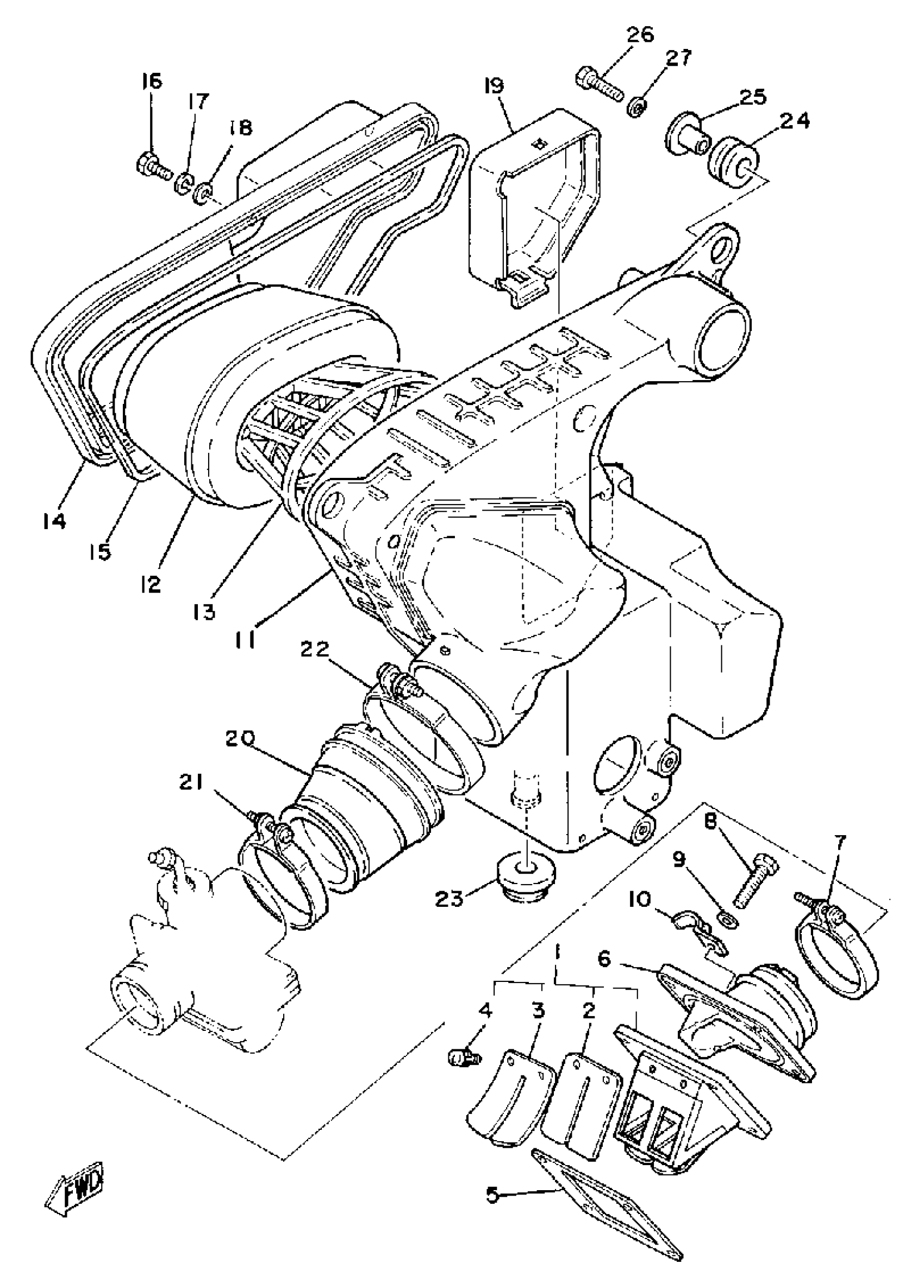

Find the part on the Intake diagram for your 1981 Yamaha MX175 (MX175H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha MX175 (MX175H) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

345-13610-20-00

1

$218.63

In stock

2

REED, VALVE

345-13613-70-00

1

$62.56

In stock

3

. STOPPER, REED VALVE

345-13616-70-00

1
Out of stock

4

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

5

GASKET, VALVE SEAT

87A-13621-00-00

1

$7.97

In stock

6

JOINT, CARBURETOR

401-13565-01-00

1
Out of stock

7

CLAMP, HOSE (5H0)

90460-43179-00

1

$16.69

In stock

8

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

9

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

10

CLAMP 363154850100

90462-05005-00

—

$6.92

In stock

11

CASE, AIR CLEANER 1

3M2-14411-00-00

1
Out of stock

12

ELEMENT, AIR CLEANER

2A6-14451-01-00

1
Out of stock

13

UNAVAILABLE IN PRICE BOOK

2A6-14458-00-00

1
Out of stock

14

CAP, CLEANER CASE 1

2A6-14412-00-00

1
Out of stock

15

SEAL

51Y-14462-00-00

1

$11.61

In stock

16

SCREW,PAN HEAD (646)

98580-05012-00

—

$5.60

In stock

17

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

18

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

19

COVER 1

2A6-14417-00-00

1
Out of stock

20

JOINT, AIR CLEANER 1

2A7-14453-00-00

1
Out of stock

21

CLAMP HOSE 278144550000

90460-49058-00

—
Out of stock

22

HOSE CLAMP ASSY

90450-64004-00

—

$12.00

In stock

23

GROMMET (509)

90480-18171-00

—

$6.55

In stock

24

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

25

COLLAR 437216330000

90387-07391-00

—

$7.74

In stock

26

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

27

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
