1981 Yamaha MX175 (MX175H) Clutch Diagram

← All diagrams

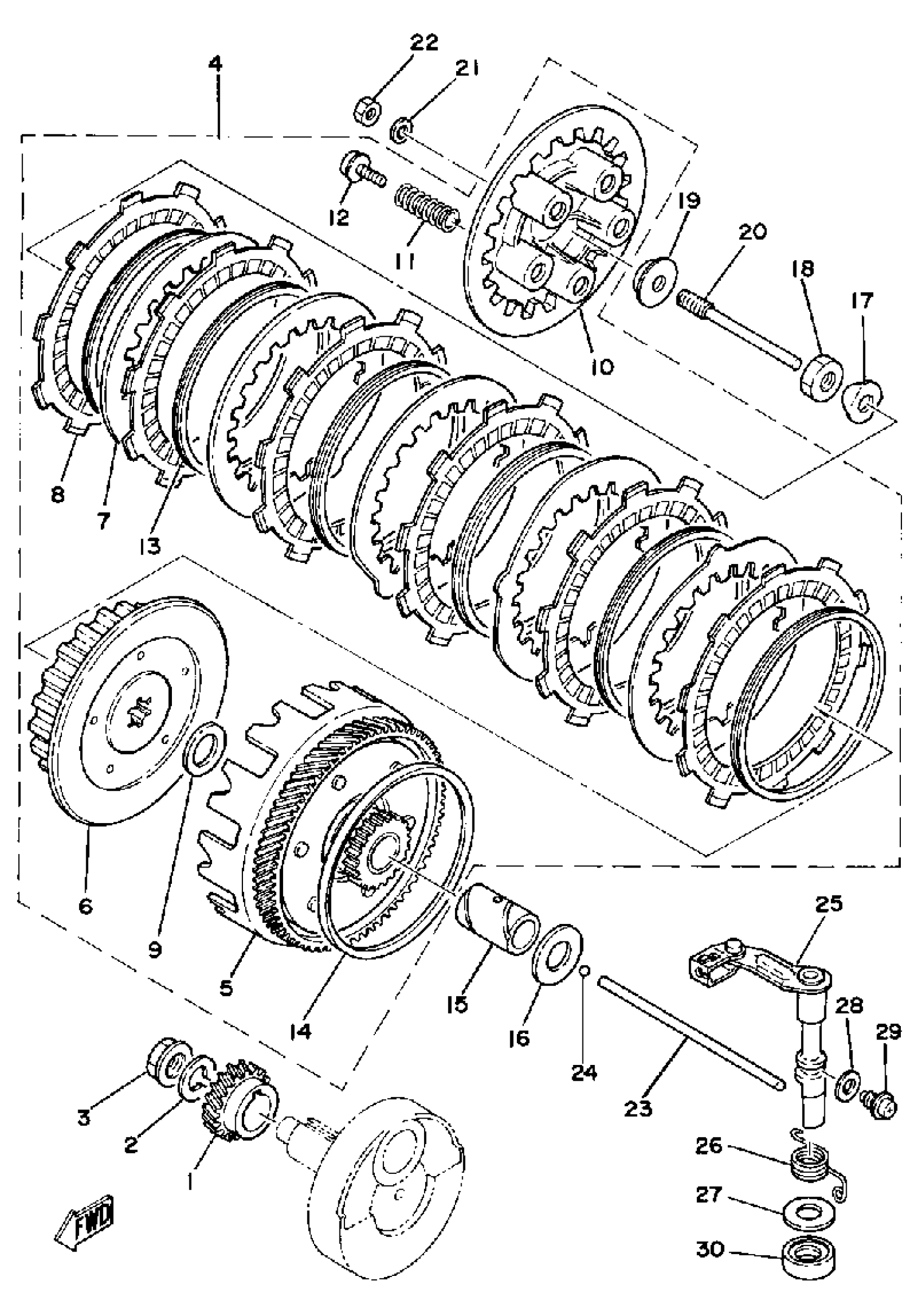

Find the part on the Clutch diagram for your 1981 Yamaha MX175 (MX175H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha MX175 (MX175H) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRI DRIVE

1W1-16111-00-00

1
Out of stock

2

WASHER, SPRING (1W1)

90204-12007-00

1

$6.92

In stock

3

NUT(1EE)

90179-12659-00

1

$5.37

In stock

4

CLUTCH ASSEMBLYCLUTCH ASSEMBLY (2A7-16301-00)

3J1-16300-00-00

1
Out of stock

5

. PRI DRVN GEAR COMP (71T)

2A7-16150-00-00

1
Out of stock

6

. BOSS, CLUTCH

1G8-16371-00-00

1
Out of stock

7

PLATE, CLUTCH 1

2A6-16324-10-00

1
Out of stock

8

PLATE, FRICTION

36X-16321-00-00

1

$15.88

In stock

9

WASHER, PLATE(2YY)

90201-180P2-00

1
Out of stock

10

. PLATE, PRESSURE 1

1W1-16351-00-00

1
Out of stock

11

SPRING, COMPRESSION (2A6)

90501-20474-00

1
Out of stock

12

SCREW, WITH WASHER (537)

90159-05011-00

1

$2.45

In stock

13

. RING, CUSHION

307-16367-00-00

1
Out of stock

14

RING, FRICTION

(2A7-16369-00-00)

1
Out of stock

15

SPACER (525)

90560-17147-00

—

$25.35

In stock

16

WASHER, PLATE (4V2)

90201-174E1-00

—

$6.71

In stock

17

WASHER, LOCK (2K6)

90215-14204-00

—
Out of stock

18

NUT, HEXAGON

90170-14171-00

—

$7.26

In stock

19

PLATE, PUSH

1W1-16358-01-00

—

$20.06

In stock

20

ROD, PUSH

1W1-16356-02-00

—
Out of stock

21

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

22

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

23

ROD, PUSH 2

2X3-16357-00-00

—
Out of stock

24

BALL

93503-16003-00

—

$2.14

In stock

25

PUSH LEVER ASSEMBLY

2X3-16380-01-00

1
Out of stock

26

SPRING, TORSION (1W1)

90508-20345-00

—
Out of stock

27

WASHER PLATE 150251530000

90201-14217-00

—
Out of stock

28

GASKET(3AJ)

90430-08204-00

—

$6.36

In stock

29

SCREW (1M1)

90149-08108-00

—

$12.06

In stock

30

OIL SEAL (14X25X5-2H7)

93104-14059-00

—
Out of stock
← Intake Shift CAM-Fork →
