LIGHTING KIT

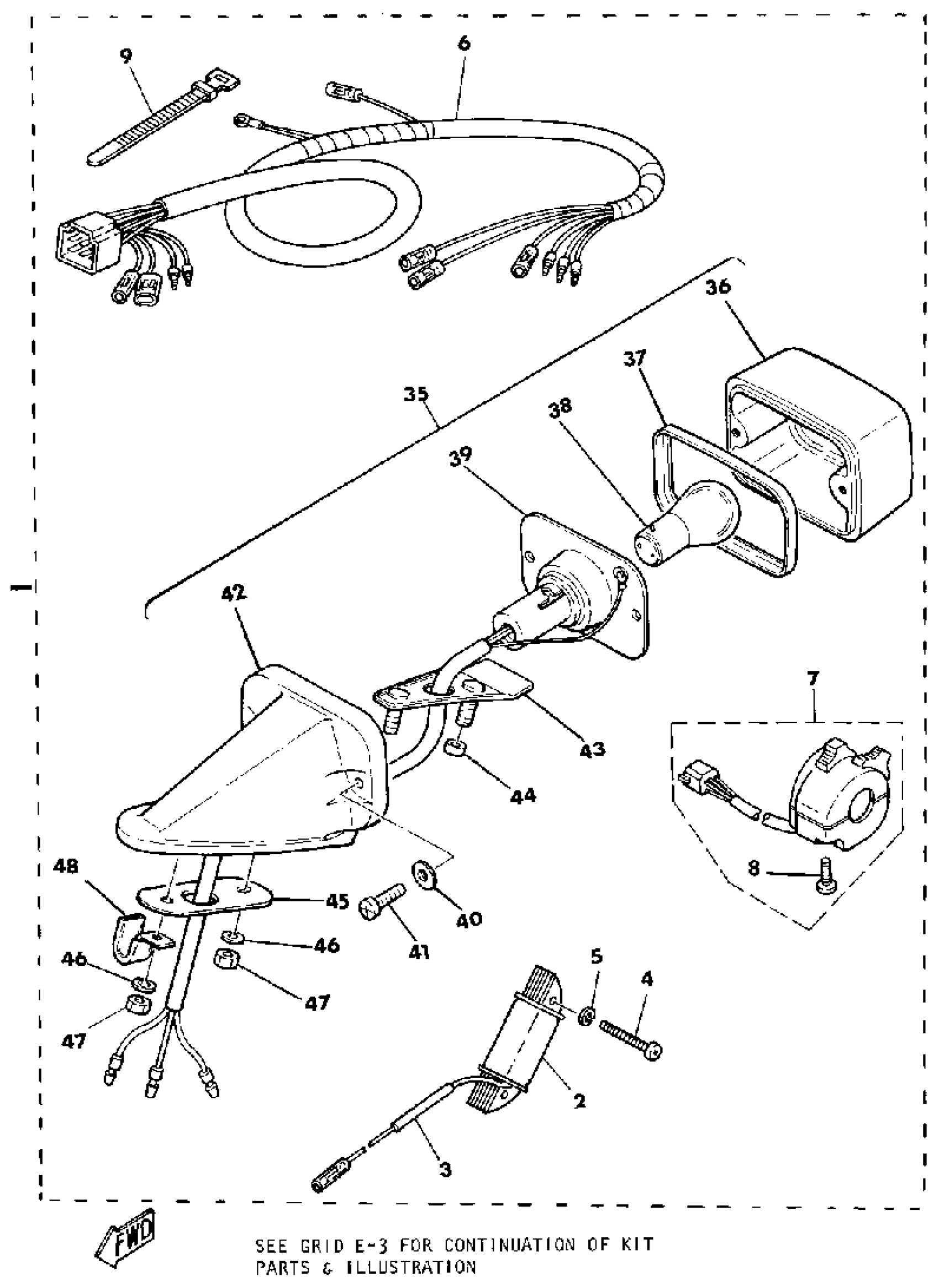

1980 Yamaha MX175 (MX175G) Lighting KIT Diagram
Find the part on the Lighting KIT diagram for your 1980 Yamaha MX175 (MX175G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
MX175 LIGHTING KIT
(ACC-01100-61-00)
2
COIL, LIGHTING 1
(3M2-85513-20-00)
3
LEAD WIRE ASSEMBLY
(3M2-85515-21-00)
6
. WIRE HARNESS ASSEMBLY
3M2-82590-90-00
7
SWITCH, HANDLE 3
1W2-83973-00-98
10
UNAVAILABLE IN PRICE BOOK
(1W2-84110-60-)
11
RIM, HEADLIGHT
(1W2-84115-60-00)
12
. COVER, HEADLIGHT
1W2-84144-60-00
13
. LENS ASSEMBLY
3R8-84120-60-00
14
. BULB, HL 6V25/25W
527-84114-09-XX
15
. SOCKET
1W2-84112-60-00
16
. SPRING, REFLECTOR
1W2-84324-60-00
18
YBS67-5 WASHER, SPRING
92990-05100-00
19
BODY ASSEMBLY, HEADLIGHT
1W2-84130-60-00
20
COLLAR, BODY FTNG
(1W2-84145-60-00)
21
. COLLAR, BODY FTNG
1L9-84338-60-00
22
STAY, HEADLIGHT 1
(3M2-84118-00-00)
23
STAY, HEADLIGHT 2
(3M2-84119-00-00)
30
DAMPER, HDLT STAY
1W2-84143-00-00
35
TAILLIGHT ASSEMBLY
434-84500-64-00
36
LENS, TAIL LAMP
434-84521-69-00
37
RIM,TAILLIGHT
5AU-83323-01-00
38
BULB,TAIL LAMP(6V17/5.3W)
122-84514-30-00
39
. CORD, TAILLIGHT
434-84517-61-00
41
. SCREW, LENS FITTING
434-84524-61-00
42
. BRACKET, TAILLIGHT
434-84519-64-00
43
TAILLIGHT ASSEMBLY
434-84500-64-00
44
COLLAR
(434-84557-60-00)
45
WASHER, SPECIAL
1W2-84525-00-00
46
YBS67-5 WASHER, SPRING
92990-05100-00
