1980 Yamaha MX175 (MX175G) Handle Switch-Lever Diagram

← All diagrams

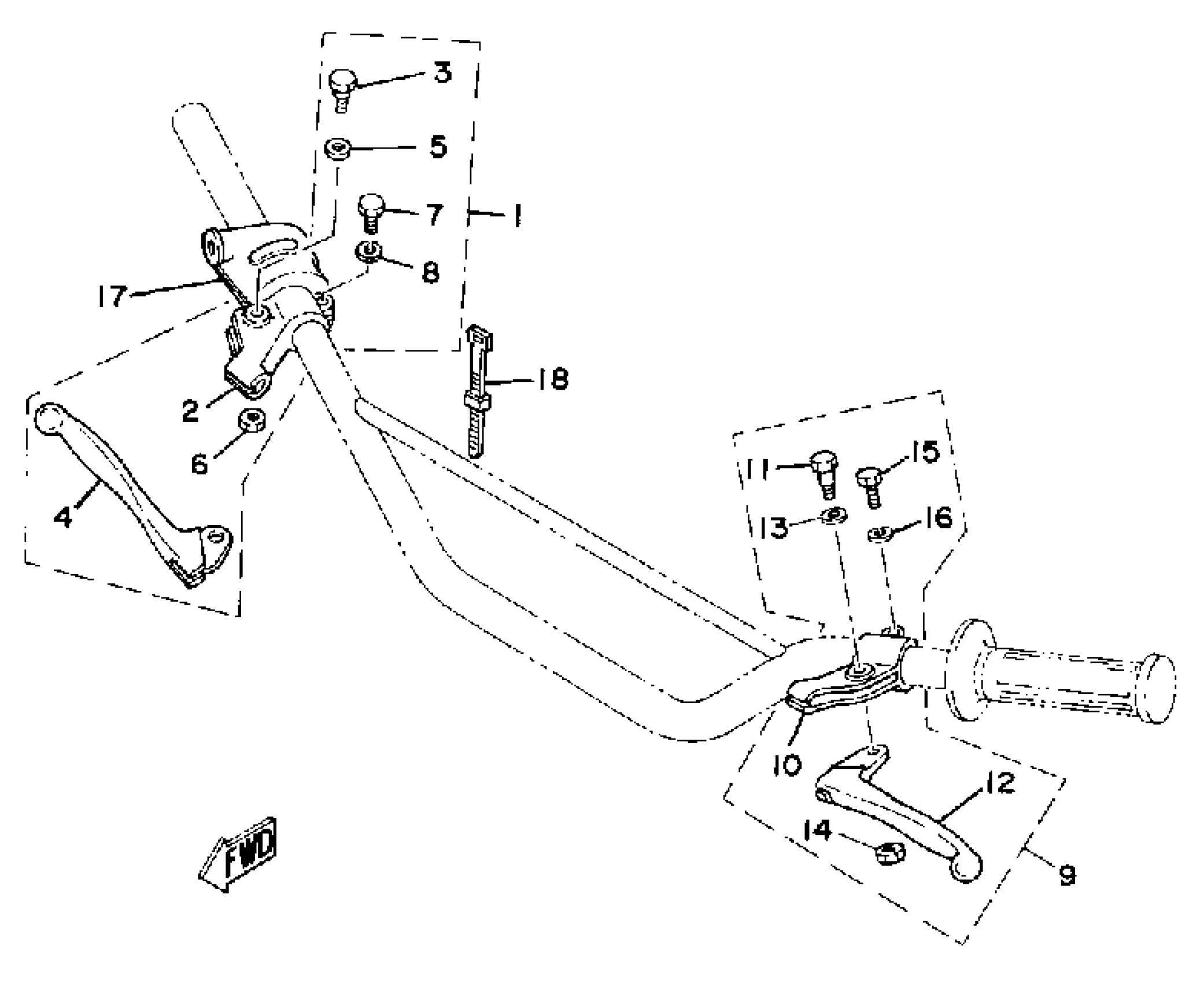

Find the part on the Handle Switch-Lever diagram for your 1980 Yamaha MX175 (MX175G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha MX175 (MX175G) Handle Switch-Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER HOLDER ASSEMBLY R

(2A6-W8292-02-00)

1
Out of stock

2

HOLDER, LEVER 2

516-82921-30-00

1
Out of stock

3

BOLT(3GB)

90109-061F3-00

1

$4.85

In stock

4

LEVER (R.H)

2A6-83922-00-00

1

$36.69

In stock

5

WASHER, PLATE 1562722600

90201-08083-00

1
Out of stock

6

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

7

BOLT, HEXAGON

97013-06022-00

1

$1.20

In stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

LEVER HOLDER ASSEMBLY 1

(1J3-82910-23-00)

1
Out of stock

10

HOLDER, LEVER (L.H)

214-82911-01-00

1

$48.32

In stock

11

BOLT(3GB)

90109-061F3-00

1

$4.85

In stock

12

LEVER, HANDLE (L.H)

1J3-83912-20-00

1

$38.79

In stock

13

WASHER, PLATE 1562722600

90201-08083-00

1
Out of stock

14

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

15

BOLT, HEXAGON

97013-06022-00

1

$1.20

In stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

SWITCH, HANDLE 1

(2X6-83976-00-98)

1
Out of stock

18

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock
