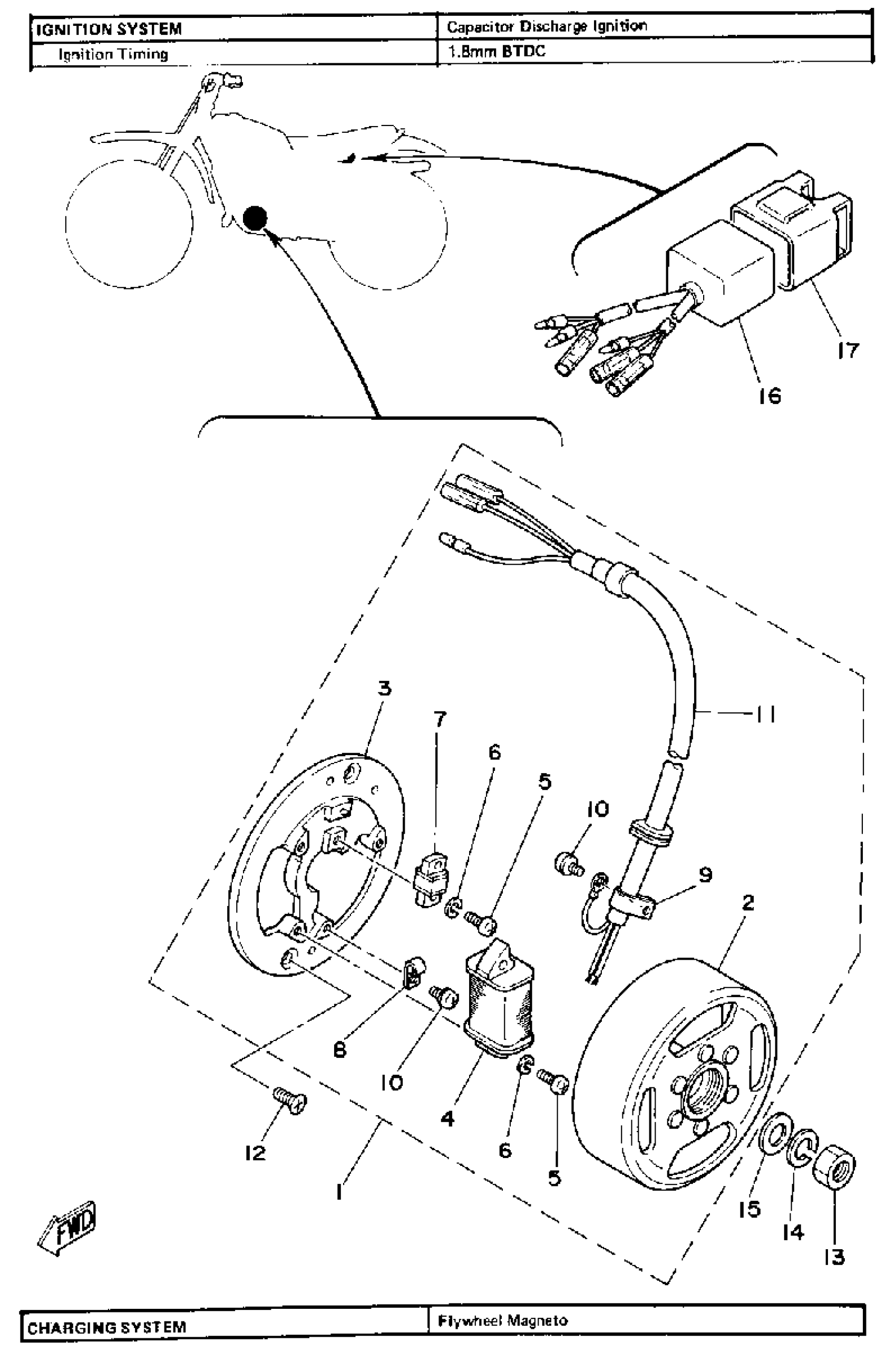

Yamaha MX175G (MX175) 1980 C - D - I - MAGNETO Diagram

#

Description
Price

1

C D I MAGNETO ASSEMBLY.

3M2-85500-90-00

Unavailable

2

. ROTOR ASSEMBLY

3M2-85550-20-00

Unavailable

3

. BASE, MAGNETO

3M2-85509-21-00

Unavailable

4

. COIL, SOURCE

3M2-85512-20-00

Unavailable

5

SCREW, PAN HEAD(GA5)

98580-04014-00

$2.60

6

YBS67-4 WASHER, SPRING

92990-04100-00

$0.58

7

. COIL, PULSER

3M2-85580-20-00

Unavailable

8

CLAMP, LEAD

(445-85528-20-00)

Unavailable

9

CLAMP, LEAD

104-81328-20-00

$3.85

10

SCREW, PAN HEAD(3XP)

98517-04006-00

$3.86

11

. LEAD WIRE ASSEMBLY

3M2-85515-20-00

Unavailable

12

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

Unavailable

13

NUT(55K)

90170-12347-00

$7.88

14

WASHER, PLATE (583)

90201-12593-00

$6.35

15

YBS67-12 WASHER,SPRING

92990-12100-00

$6.58

16

CDI UNIT ASSEMBLY

3M2-85540-20-00

Unavailable

17

BAND

2A7-85546-00-00

Unavailable
