1979 Yamaha MX175 (MX175F) Shifter 2 Diagram

← All diagrams

Find the part on the Shifter 2 diagram for your 1979 Yamaha MX175 (MX175F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

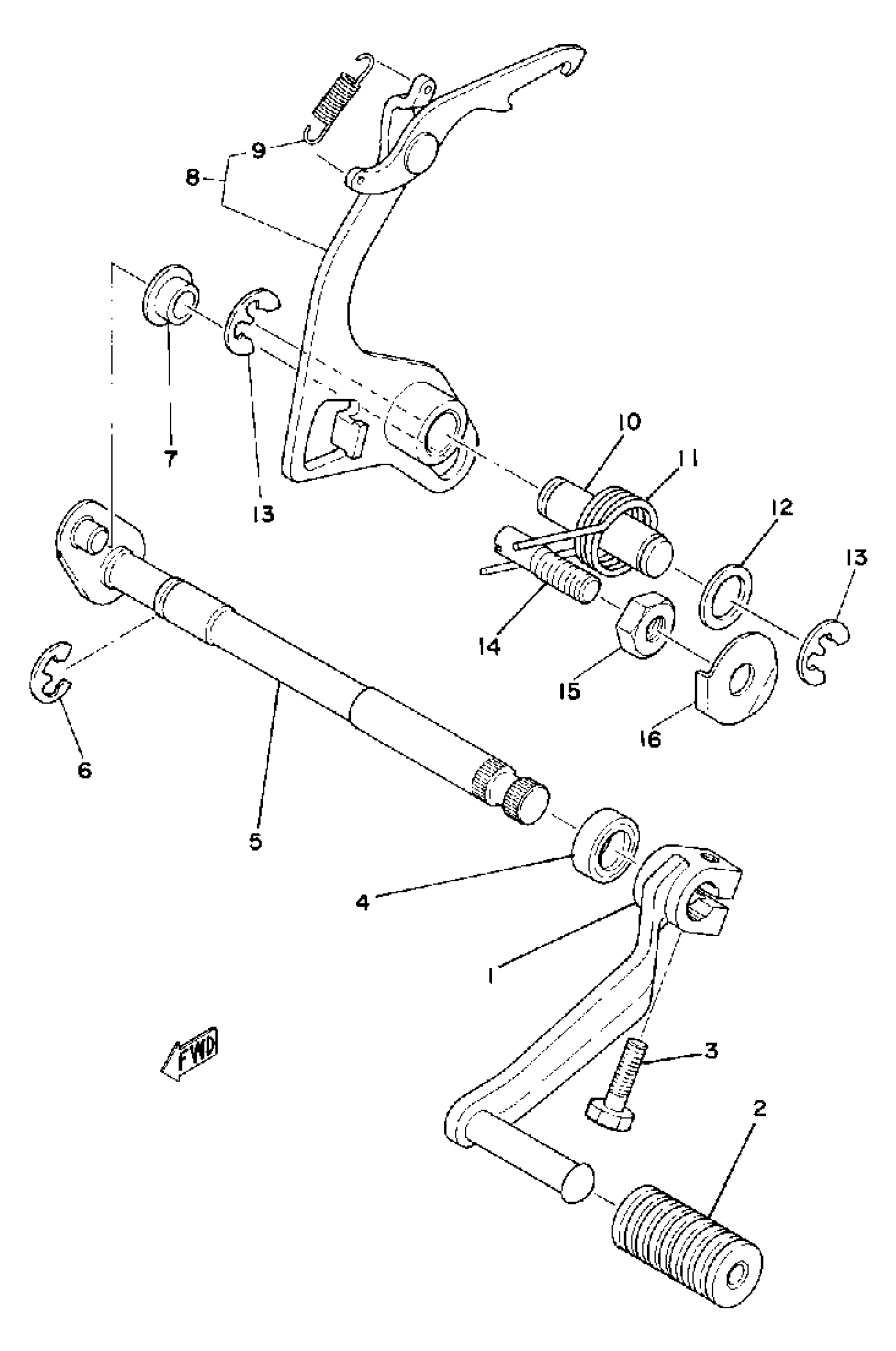

1979 Yamaha MX175 (MX175F) Shifter 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT PEDAL ASSY

2A6-18110-00-00

—

$35.52

In stock

2

COVER, CHANGE PEDAL

132-18113-01-00

1
Out of stock

3

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

4

OIL SEAL

93101-12173-00

1
Out of stock

5

. SHIFT SHAFT ASSEMBLY 1

1W1-18101-03-00

1
Out of stock

6

CIRCLIP

99006-10600-00

1

$6.91

In stock

7

ROLLER, CHANGE LEVER

401-18178-00-00

1

$17.98

In stock

8

SHIFT LEVER ASSY

4F2-18120-00-00

—

$40.88

In stock

9

SPRING, TENSION (1W1)

90506-08155-00

1

$9.17

In stock

10

—

$4.86

In stock

11

SPRING, TORSION (1W1)

90508-32349-00

1

$8.72

In stock

12

WASHER (692)

90201-12M34-00

1

$3.47

In stock

13

CIRCLIP

99006-10600-00

1

$6.91

In stock

14

SCREW (1W1)

90149-08111-00

—

$3.74

In stock

15

NUT (583)

90170-08193-00

1
Out of stock

16

WASHER LOCK 248181390000

90215-08014-00

—

$5.38

In stock
