1979 Yamaha MX175 (MX175F) Shifter 1 Diagram

← All diagrams

Find the part on the Shifter 1 diagram for your 1979 Yamaha MX175 (MX175F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

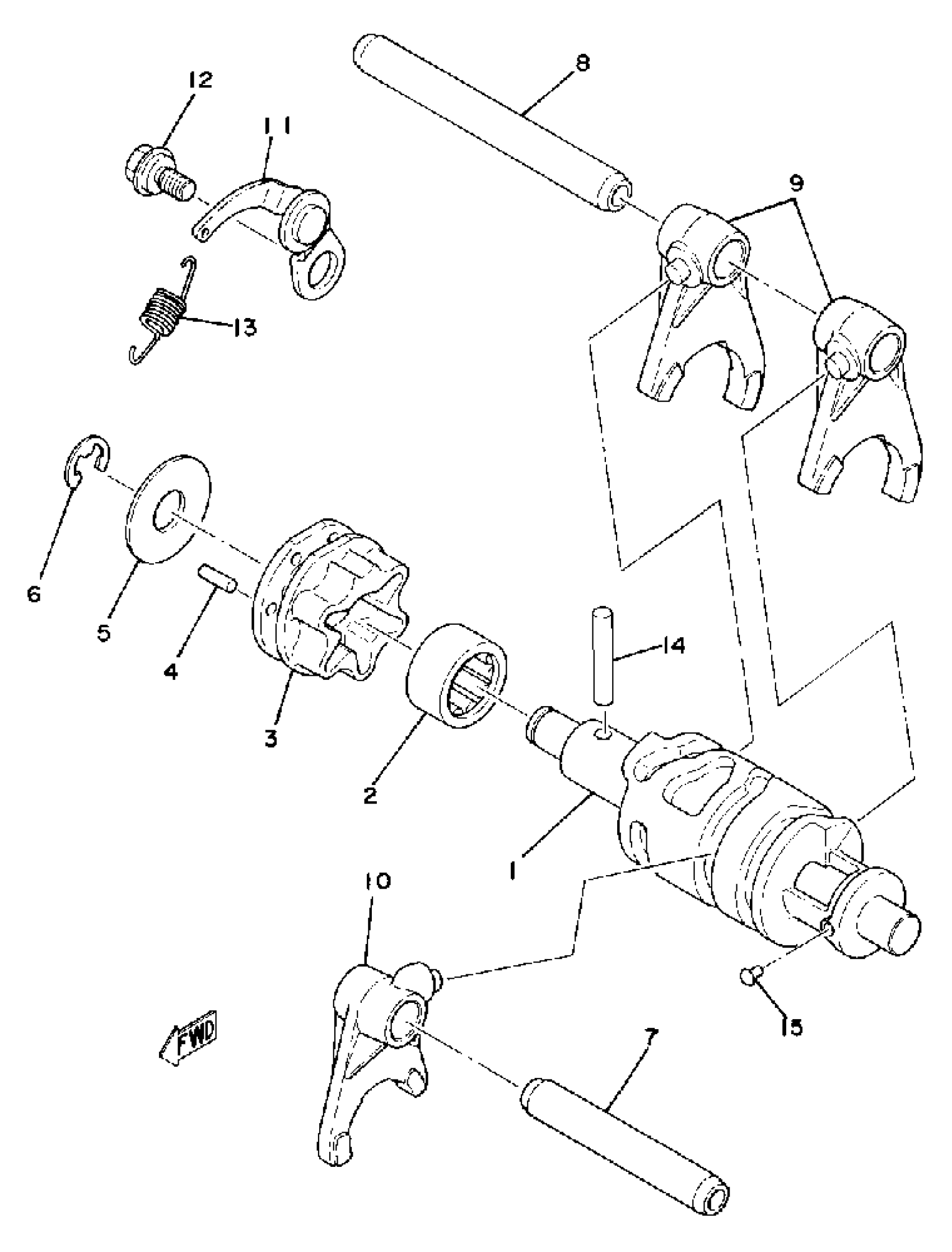

1979 Yamaha MX175 (MX175F) Shifter 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSY

1W1-18540-00-00

1
Out of stock

2

BRG,CYL-CAL ROLLER 12G KY

93315-21813-00

1

$31.48

In stock

3

SEGMENT, SHIFT CAM

1W1-18185-00-00

—
Out of stock

4

PIN,DOWEL (168)

93604-12037-00

1
Out of stock

5

PLATE, SIDE

1W1-18561-00-00

1

$6.38

In stock

6

CIRCLIP(2R6)

99001-08600-00

1
Out of stock

7

BAR, SHIFT FORK GUIDE 1

2A6-18531-00-00

—

$24.58

In stock

8

BAR, SHIFT FORK GUID 2

2A6-18535-00-00

—

$29.34

In stock

9

FORK, SHIFT 1

2A6-18511-00-00

1

$32.35

In stock

10

FORK, SHIFT 2

2A6-18512-00-00

—

$33.32

In stock

11

STOPPER LEVER ASSY

1W1-18140-00-00

—

$27.62

In stock

12

BOLT

90109-06190-00

1

$3.49

In stock

13

SPRING, TENSION (1W1)

90506-09156-00

—

$5.62

In stock

14

PIN,DOWEL (611)

93604-30018-00

1

$2.45

In stock

15

POINT,NEUTRAL (150610)

136-18542-00-00

1

$5.31

In stock
