1979 Yamaha MX175 (MX175F) Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1979 Yamaha MX175 (MX175F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

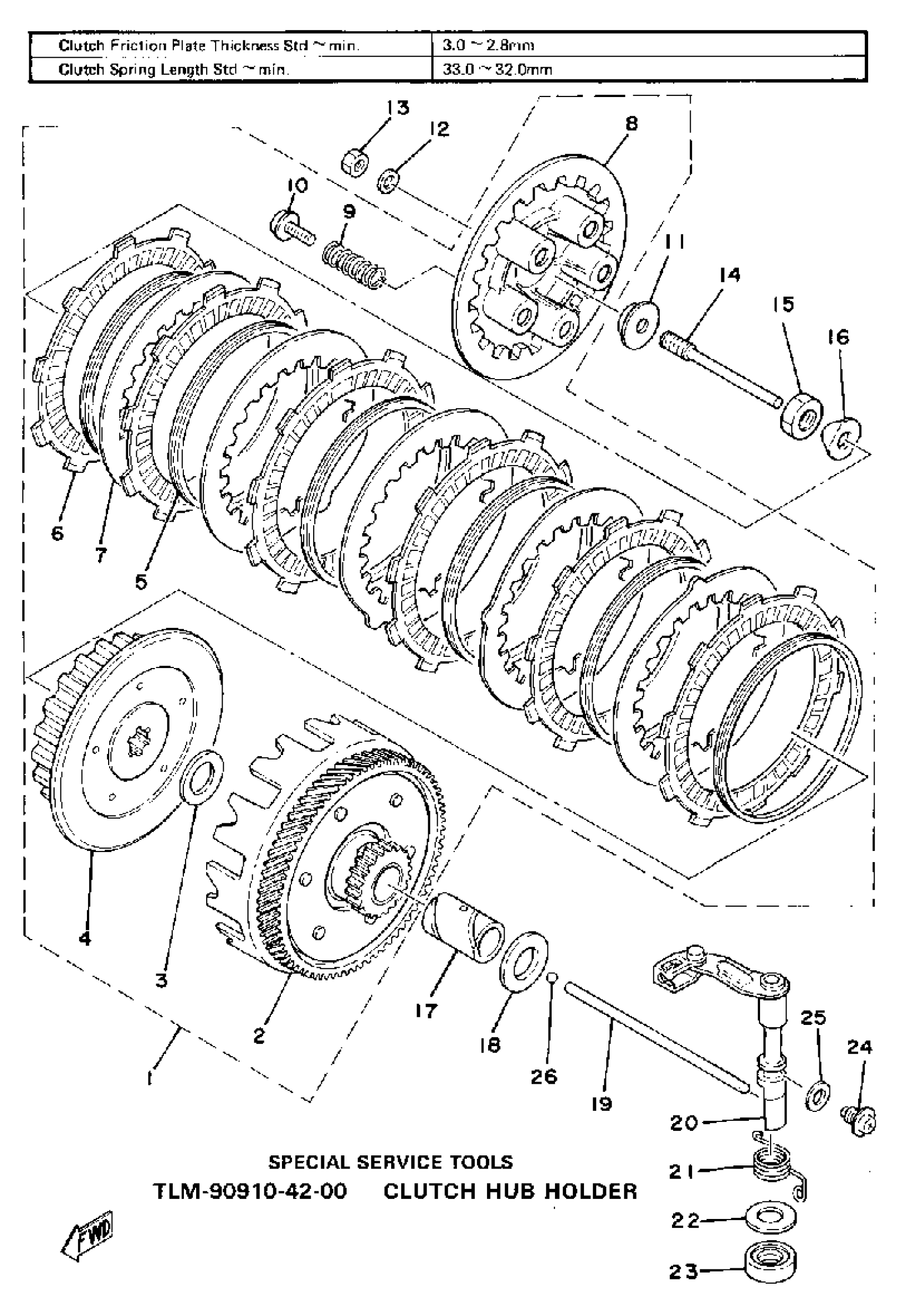

1979 Yamaha MX175 (MX175F) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLUTCH ASSEMBLYCLUTCH ASSEMBLY (2A7-16301-00)

3J1-16300-00-00

1
Out of stock

2

. PRI DRVN GEAR COMP (71T)

2A7-16150-00-00

1
Out of stock

3

WASHER, PLATE(2YY)

90201-180P2-00

1
Out of stock

4

. BOSS, CLUTCH

1G8-16371-00-00

1
Out of stock

5

. RING, CUSHION

307-16367-00-00

1
Out of stock

6

PLATE, FRICTION

36X-16321-00-00

1

$15.88

In stock

7

PLATE, CLUTCH 1

2A6-16324-10-00

1
Out of stock

8

. PLATE, PRESSURE 1

1W1-16351-00-00

1
Out of stock

9

SPRING, COMPRESSION (2A6)

90501-20474-00

1
Out of stock

10

SCREW, WITH WASHER (537)

90159-05011-00

1

$2.45

In stock

11

PLATE, PUSH

1W1-16358-01-00

1

$20.06

In stock

12

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

13

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

14

ROD, PUSH

1W1-16356-02-00

—
Out of stock

15

NUT, HEXAGON

90170-14171-00

1

$7.26

In stock

16

WASHER, LOCK (2K6)

90215-14204-00

—
Out of stock

17

SPACER (525)

90560-17147-00

—

$25.35

In stock

18

WASHER, PLATE (4V2)

90201-174E1-00

—

$6.71

In stock

19

ROD, PUSH 2

1W1-16357-00-00

1
Out of stock

20

PUSH LEVER ASSEMBLY

(1W1-16380-00-00)

1
Out of stock

21

SPRING, TORSION (1W1)

90508-20345-00

—
Out of stock

22

WASHER PLATE 150251530000

90201-14217-00

—
Out of stock

23

OIL SEAL (14X25X5-2H7)

93104-14059-00

—
Out of stock

24

SCREW (1M1)

90149-08108-00

—

$12.06

In stock

25

GASKET(3AJ)

90430-08204-00

—

$6.36

In stock

26

BALL

93503-16003-00

—

$2.14

In stock
