1979 Yamaha MX175 (MX175F) Kick Starter Diagram

← All diagrams

Find the part on the Kick Starter diagram for your 1979 Yamaha MX175 (MX175F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

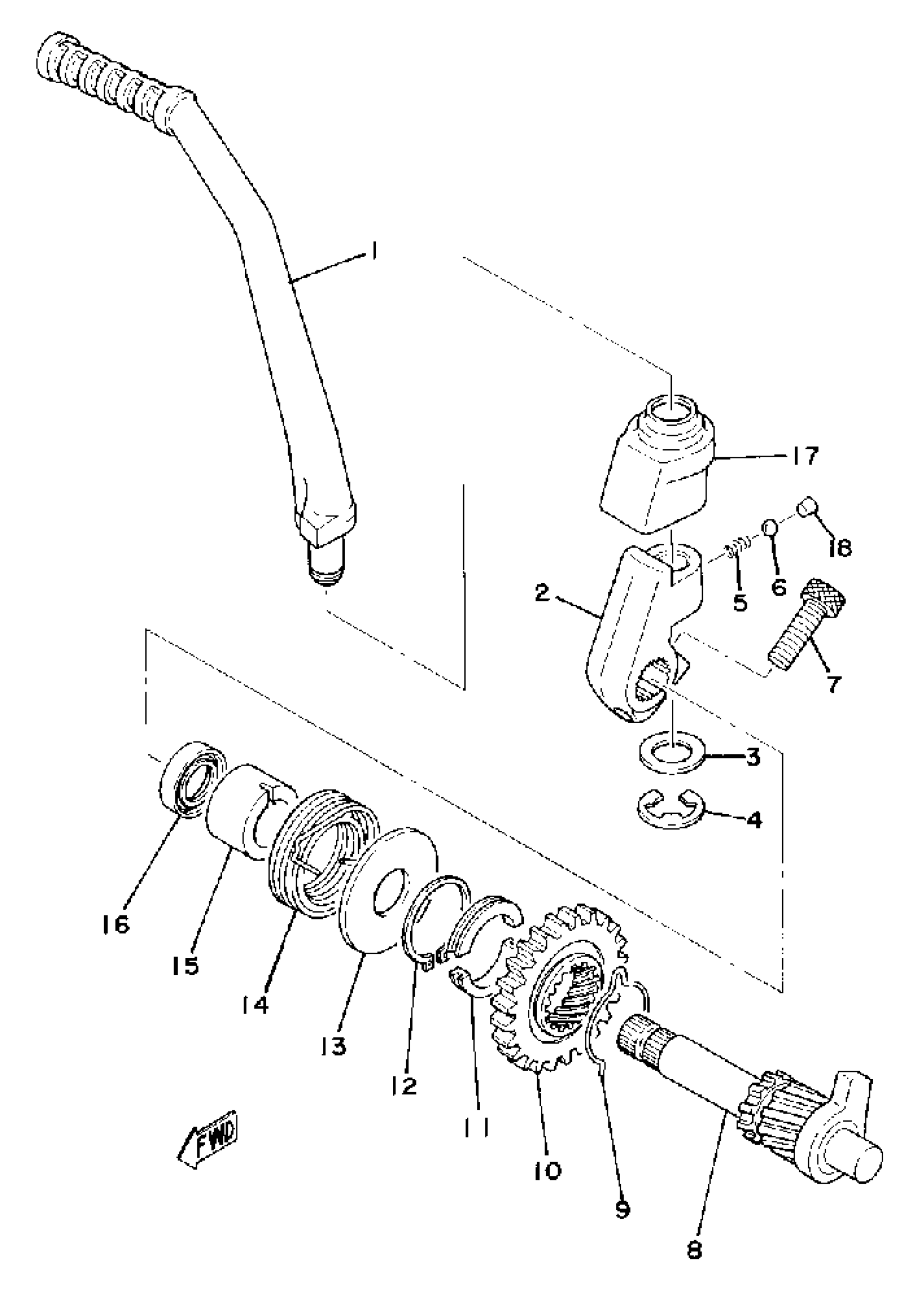

1979 Yamaha MX175 (MX175F) Kick Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK CRANK ASSEMBLY (1W1-15611-02-33)

1W1-15620-01-00

1
Out of stock

2

BOSS, KICK CRANK

1W1-15621-01-00

—

$92.40

In stock

3

WASHER, PLATE (525)

90201-12541-00

1
Out of stock

4

CIRCLIP (137)

93430-08007-00

1

$6.17

In stock

5

SPRING, COMPRESSION (1W1)

90501-10459-00

1
Out of stock

6

BALL

93503-16003-00

1

$2.14

In stock

7

BOLT, SOCKET

91317-08025-00

1

$6.25

In stock

8

KICK AXLE ASSEMBLY

2A6-15660-01-00

1
Out of stock

9

CLIP 315156870000

90468-26048-00

1
Out of stock

10

GEAR, KICK

1W1-15641-00-00

—
Out of stock

11

HOLDER, KICK GEAR

248-15654-00-00

1

$6.49

In stock

12

CIRCLIP(4A6)

99009-30400-00

1

$6.55

In stock

13

COVER, SPRING

401-15676-00-00

1

$6.43

In stock

14

SPRING, TORSION (1W1)

90508-26346-00

—

$16.45

In stock

15

SPACER, KICK AXLE SPRING

1W1-15666-00-00

1

$15.17

In stock

16

OIL SEAL (17X25X4-401)

93101-17062-00

—

$12.58

In stock

17

COVER, KICK CRANK BOSS

1W1-15618-01-00

—

$34.11

In stock

18

PLUG, TAPER

90336-06030-00

1
Out of stock
