1979 Yamaha MX175 (MX175F) Crankcase-Cylinder Diagram

← All diagrams

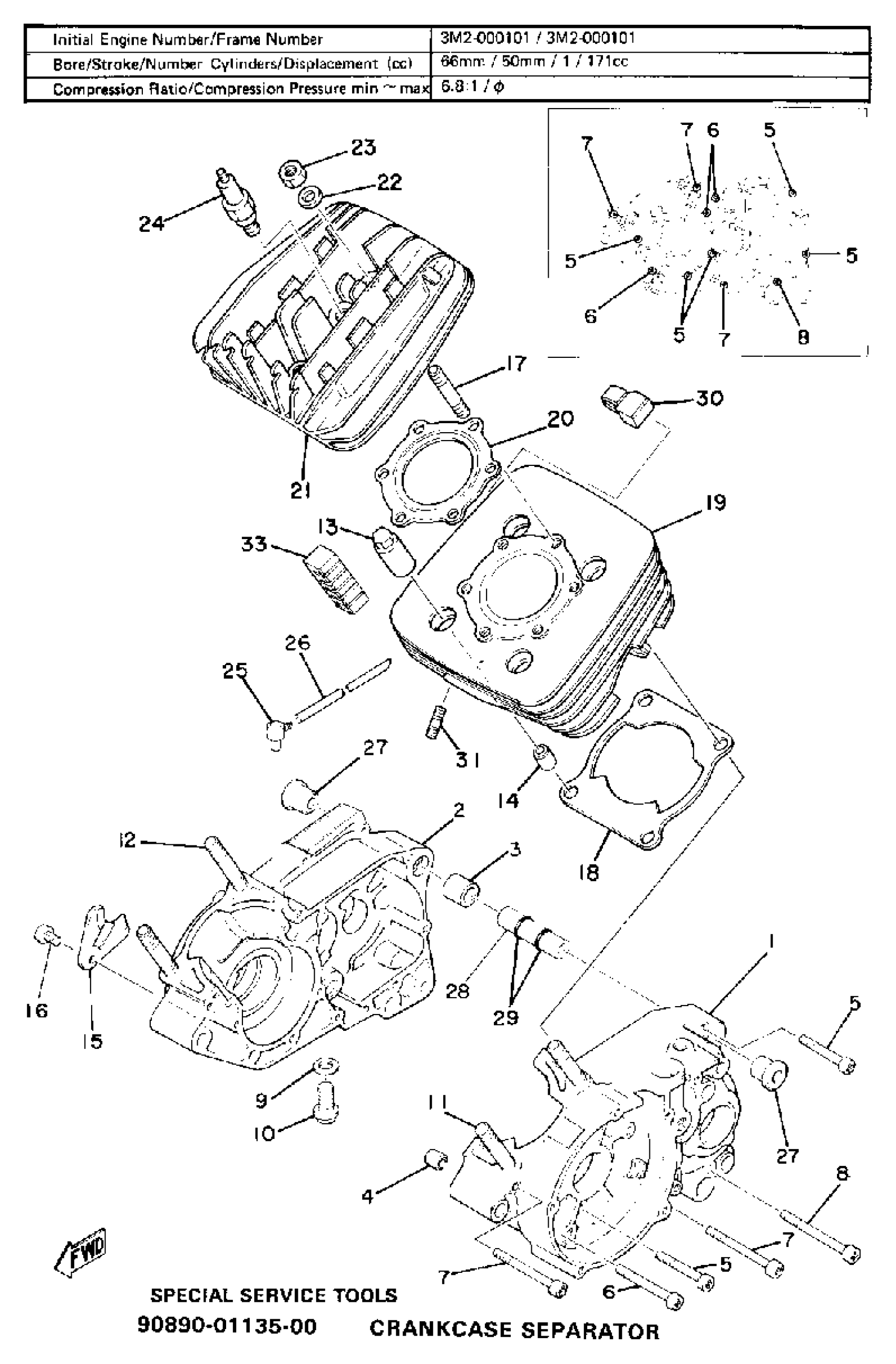

Find the part on the Crankcase-Cylinder diagram for your 1979 Yamaha MX175 (MX175F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha MX175 (MX175F) Crankcase-Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

3M2-15111-00-00

1
Out of stock

2

CRANKCASE 2

2A6-15121-01-00

1
Out of stock

3

PIN, DOWEL

99530-20020-00

1
Out of stock

4

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

5

SCREW PAN HEAD

98580-06550-00

1

$6.17

In stock

6

SCREW, BIND (JH1)

98580-06560-00

—

$6.86

In stock

7

SCREW PAN HEAD

98580-06570-00

1

$17.32

In stock

8

SCREW PAN HEAD

98580-06575-00

1

$10.95

In stock

9

GASKET (3JD1)

90430-12207-00

1

$6.77

In stock

10

1

$6.71

In stock

11

BOLT, STUD

95617-10630-00

1
Out of stock

12

BOLT,STUD

95617-10640-00

1
Out of stock

13

NUT

90179-10021-00

1

$21.54

In stock

14

PIN, DOWEL

99530-14016-00

1

$3.20

In stock

15

HOLDER (R.H)

304-15128-00-00

1

$5.80

In stock

16

SCREW, PAN

98507-08010-00

—
Out of stock

17

BOLT STUD 363111790000

90116-08104-00

—

$14.38

In stock

18

GASKET, CYLINDER

18G-11351-02-00

—

$6.25

In stock

19

CYLINDER 1

2A7-11311-00-00

1
Out of stock

20

GASKET, CYLINDER HEAD

1W2-11181-00-00

—

$15.04

In stock

21

HEAD, CYLINDER 1

2A7-11111-00-00

1
Out of stock

22

WASHER, PLATE (397)

90201-08100-00

—

$6.17

In stock

23

NUT(6L2)

95333-08600-00

—

$3.20

In stock

24

BR8ES NGK SCREW TOP 4PK

BR8-ES000-00-00

1
Out of stock

25

BREATHER

5UG-15371-00-00

—

$33.79

In stock

26

HOSE (L1050)

90445-072G8-00

—

$23.46

In stock

27

DAMPER

90388-08003-00

—

$16.29

In stock

28

SPACER, ENGINE MOUNT

401-15317-00-00

—

$12.20

In stock

29

O-RING (P95)

93210-11073-00

—
Out of stock

30

ABSORBER 5

2A6-11129-00-00

1
Out of stock

31

BOLT STUD 306111790000

90116-06016-00

—

$3.49

In stock
