1979 Yamaha MX175 (MX175F) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1979 Yamaha MX175 (MX175F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

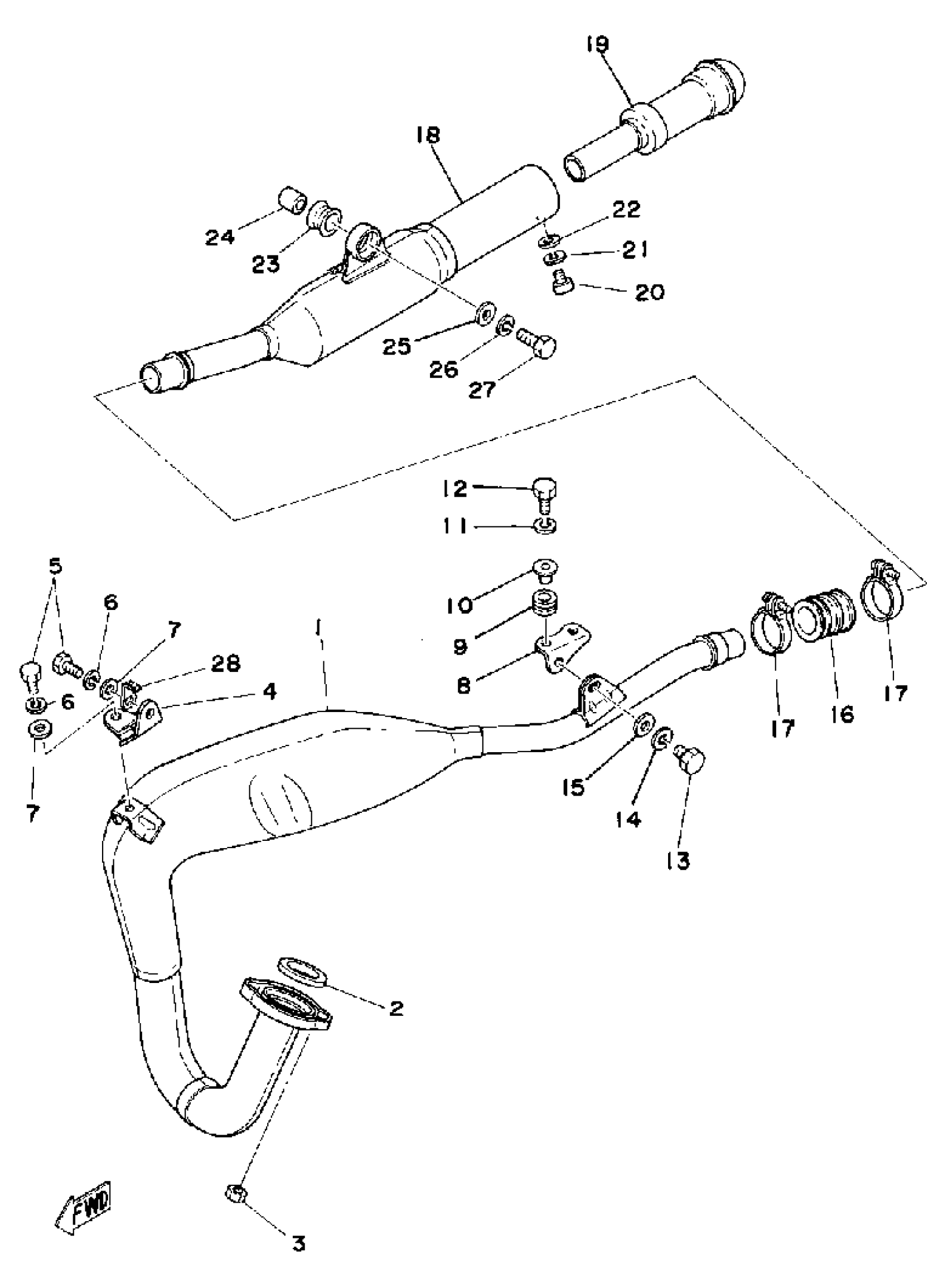

1979 Yamaha MX175 (MX175F) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L (2A6-14610-00)

3J0-14610-00-00

1
Out of stock

2

GASKET, EXHAUST PIPE

3PA-14613-10-00

1
Out of stock

3

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

4

STAY, MUFFLER 2

2A6-14772-01-00

1
Out of stock

5

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

8

STAY, MUFFLER 1

5V7-14771-00-00

1
Out of stock

9

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

10

COLLAR

90387-06158-00

1

$6.17

In stock

11

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

12

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

13

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

14

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

15

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

16

GASKET, MUFFLER JOINT

1W2-14714-00-00

—
Out of stock

17

CLAMP, HOSE

90460-37130-00

1
Out of stock

18

SILENCER, EXHAUST

2A6-14753-00-00

1
Out of stock

19

PIPE, OUTLET

1M1-14752-01-00

1
Out of stock

20

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

23

DAMPER

565-14747-00-00

—
Out of stock

24

COLLAR (437)

90387-08258-00

—
Out of stock

25

WASHER, PLATE(8AT)

90201-081R9-00

—
Out of stock

26

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

27

BOLT, HEXAGON

97013-08030-00

—

$3.20

In stock
