1976 Yamaha MX125 (MX125C) Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1976 Yamaha MX125 (MX125C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

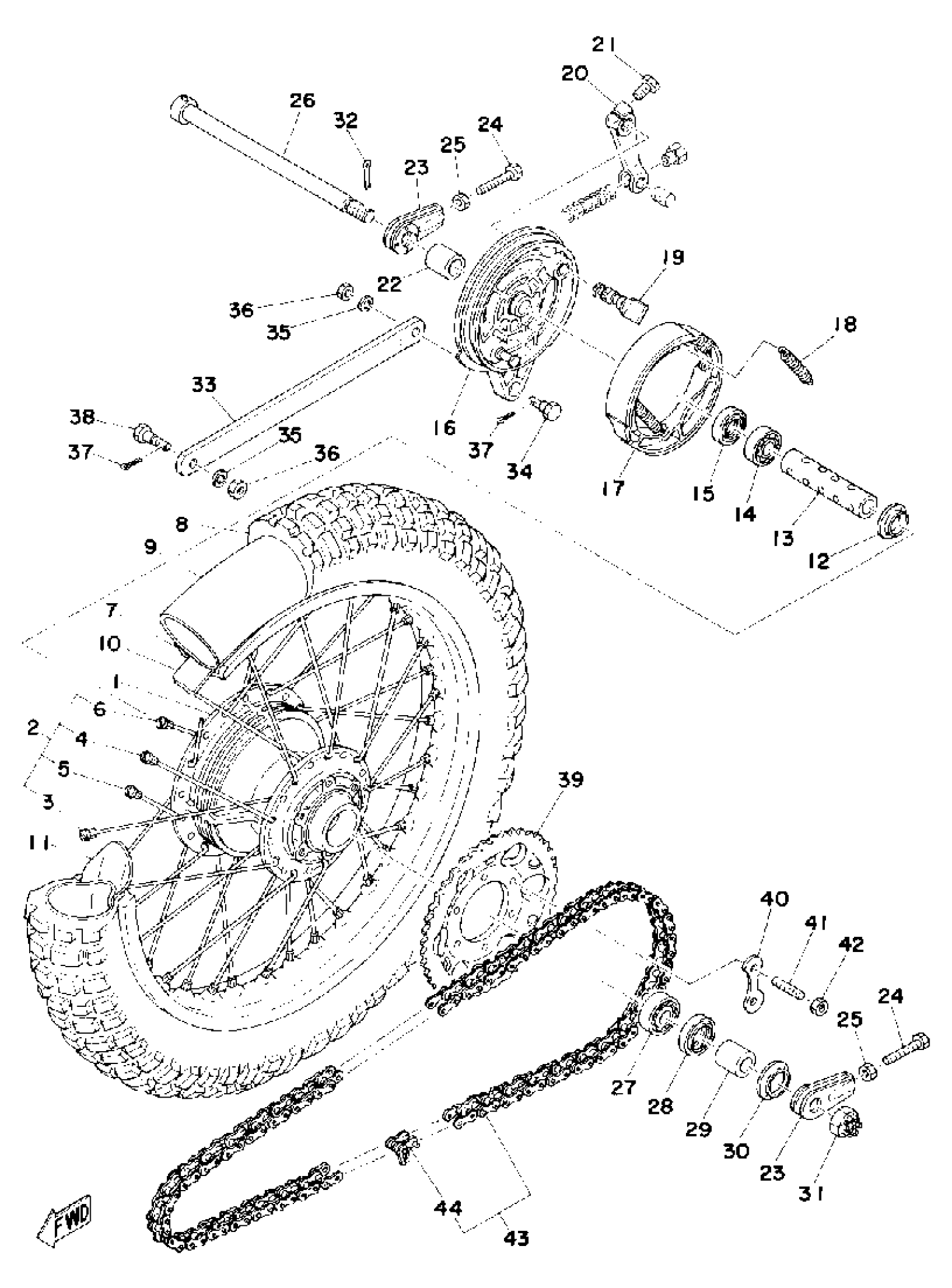

1976 Yamaha MX125 (MX125C) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

(537-25311-01-98)

1
Out of stock

2

SPOKE SET, REAR

537-25304-01-00

1
Out of stock

3

SPOKE SET, INNER 2

(537-25396-90-00)

1
Out of stock

4

SPOKE SET, OUTER 2

(537-25397-90-00)

1
Out of stock

5

SPOKE SET, INNER 1

(537-25391-90-00)

1
Out of stock

6

SPOKE SET, OUTER 1

(537-25392-90-00)

1
Out of stock

7

RIM 1.85X18

94418-18245-00

1
Out of stock

8

410X18 DUN SR SPRT

(94141-18171-00)

1
Out of stock

9

TUBE (2RH)

94232-18113-00

1
Out of stock

10

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

11

SPACER, BEAD

2X3-25394-00-00

1
Out of stock

12

FLANGE, SPACER

146-25115-00-00

1

$6.17

In stock

13

SPACER(23A)

90560-15312-00

1

$34.42

In stock

14

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

1

$21.28

In stock

15

OIL SEAL (22X35X5)

93104-22018-00

1
Out of stock

16

PLATE, BRAKE SHOE

(401-25321-00-98)

1
Out of stock

17

BRAKE SHOE SET-2PCS

183-W2536-00-00

1
Out of stock

18

SPRING (5T9)

90506-17328-00

—

$9.32

In stock

19

CAMSHAFT

26A-25351-00-00

1
Out of stock

20

. LEVER, CAMSHAFT (168-25355-00)

4V5-25355-00-00

1
Out of stock

21

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

22

COLLAR

90387-15115-00

1
Out of stock

23

PULLER, CHAIN

248-25388-00-00

—

$35.90

In stock

24

BOLT

90101-08060-00

—

$4.92

In stock

25

. NUT

95380-08700-00

1

$3.07

In stock

26

AXLE, WHEEL

537-25381-00-00

1
Out of stock

27

BEARING

93306-30212-00

—

$33.35

In stock

28

SEAL,OIL

93106-26005-00

—

$6.67

In stock

29

COLLAR (401-25377-00)

90387-15424-00

1
Out of stock

30

COVER, DUST

401-25367-00-00

—

$7.66

In stock

31

NUT, CASTLE(2UJ)

90171-14056-00

—

$10.57

In stock

32

PIN, COTTER

91490-30030-00

—

$7.15

In stock

33

BAR, TENSION

(537-25371-00-00)

1
Out of stock

34

BOLT (183-25378-00)

90109-08368-00

—

$7.00

In stock

35

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

36

. NUT

95380-08700-00

1

$3.07

In stock

37

PIN, COTTER

91490-20025-00

—

$1.31

In stock

38

BOLT 1092537300

90109-08063-00

—
Out of stock

39

SPROCKET, DRIVN 45T

(565-25445-20-33)

1
Out of stock

40

WASHER

537-25412-00-00

1
Out of stock

41

BOLT, STUD (537 HUB)

90116-10221-00

—

$4.08

In stock

42

NUT (682)

95380-10700-00

1

$5.78

In stock

43

428HD 114L

94580-34114-00

1
Out of stock

44

CHAIN JOINT

(94680-06031-00)

1
Out of stock
