1976 Yamaha MX125 (MX125C) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1976 Yamaha MX125 (MX125C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

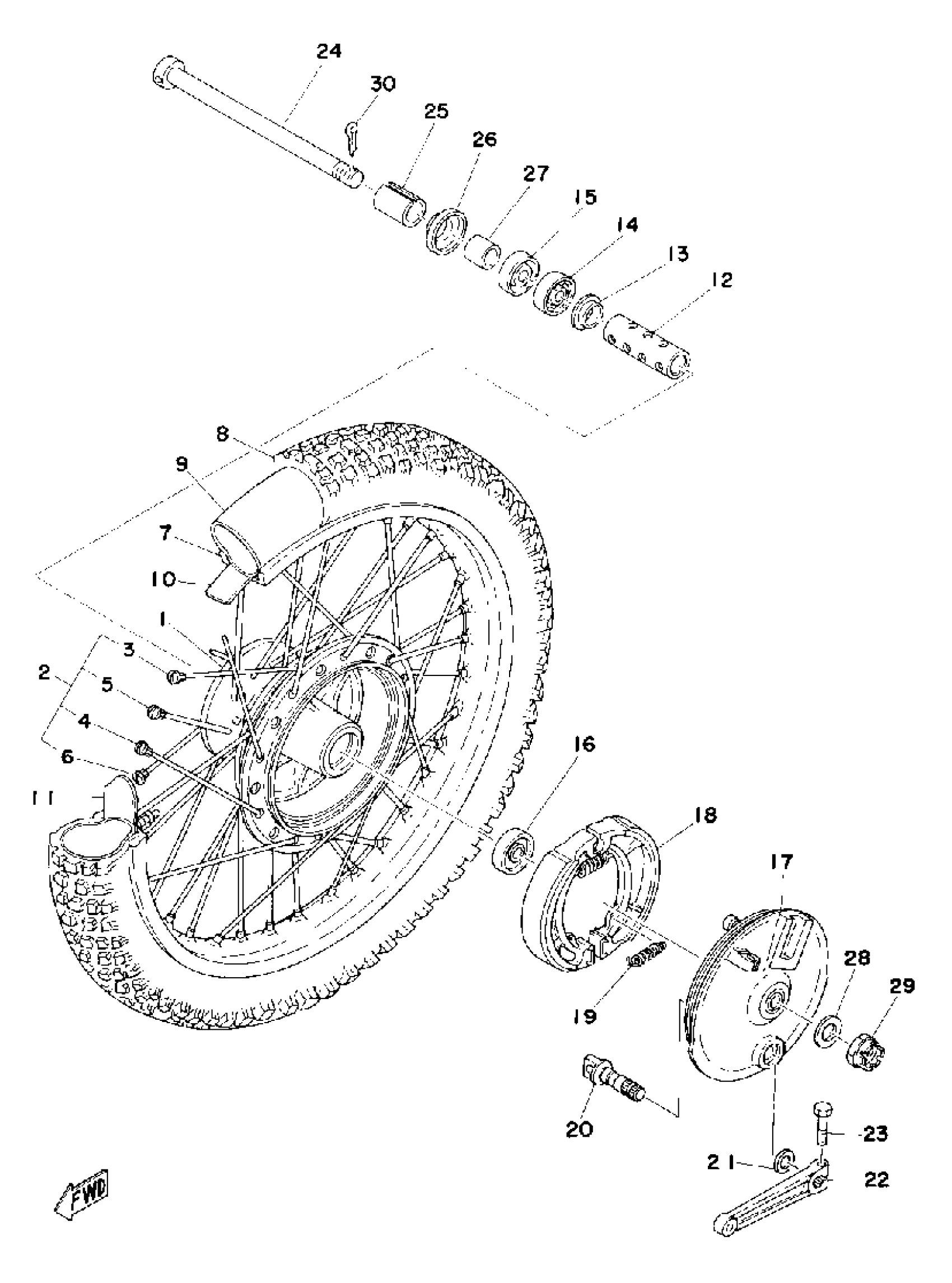

1976 Yamaha MX125 (MX125C) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(322-25111-00-98)

1
Out of stock

2

SPOKE SET, FRONT

(322-25104-01-00)

1
Out of stock

3

SPOKE SET, INNER 1

(322-25196-90-00)

1
Out of stock

4

SPOKE SET, OUTER 1

(322-25197-90-00)

1
Out of stock

5

SPOKE SET, INNER 2

(322-25179-90-00)

1
Out of stock

6

SPOKE SET, OUTER 2

(322-25189-90-00)

1
Out of stock

7

RIM 1.60X21

94416-21326-00

1
Out of stock

8

300-21 M1B (TT)

(94130-213A4-00)

1
Out of stock

9

TUBE, FRONT (2A6)

94227-21123-00

1

$43.59

In stock

10

BAND, RIM

(94327-21024-00)

1
Out of stock

11

SPACER, BEAD

1T2-25394-00-00

—

$41.05

In stock

12

SPACER

90560-15116-00

1
Out of stock

13

FLANGE, SPACER

146-25116-00-00

1
Out of stock

14

BRG, R-B (7H4)

93306-20211-00

1

$22.05

In stock

15

OIL SEAL (20X35X7-136)

93102-20009-00

1

$9.10

In stock

16

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

—

$21.28

In stock

17

PLATE, BRAKE SHOE

(322-25121-00-98)

1
Out of stock

18

BRAKE SHOE KIT

322-W253A-10-00

—

$31.99

In stock

19

SPRING (5T9)

90506-17328-00

—

$9.32

In stock

20

CAMSHAFT

(431-25151-00-00)

1
Out of stock

21

SEAL, CAMSHAFT

137-25159-00-00

1
Out of stock

22

LEVER, CAMSHAFT 1

322-25155-00-00

1
Out of stock

23

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

24

AXLE, WHEEL

275-25181-00-00

1
Out of stock

25

COLLAR (322-25186-00)

90387-15116-00

1
Out of stock

26

COVER, HUB DUST

322-25118-00-00

—

$16.17

In stock

27

COLLAR (322-25183-00)

90387-15418-00

1
Out of stock

28

WASHER, PLAIN

92990-14200-00

—

$1.71

In stock

29

NUT, CASTLE(2UJ)

90171-14056-00

—

$10.57

In stock

30

PIN, COTTER

91490-30030-00

—

$7.15

In stock
