1976 Yamaha MX125 (MX125C) Front Fork Diagram

← All diagrams

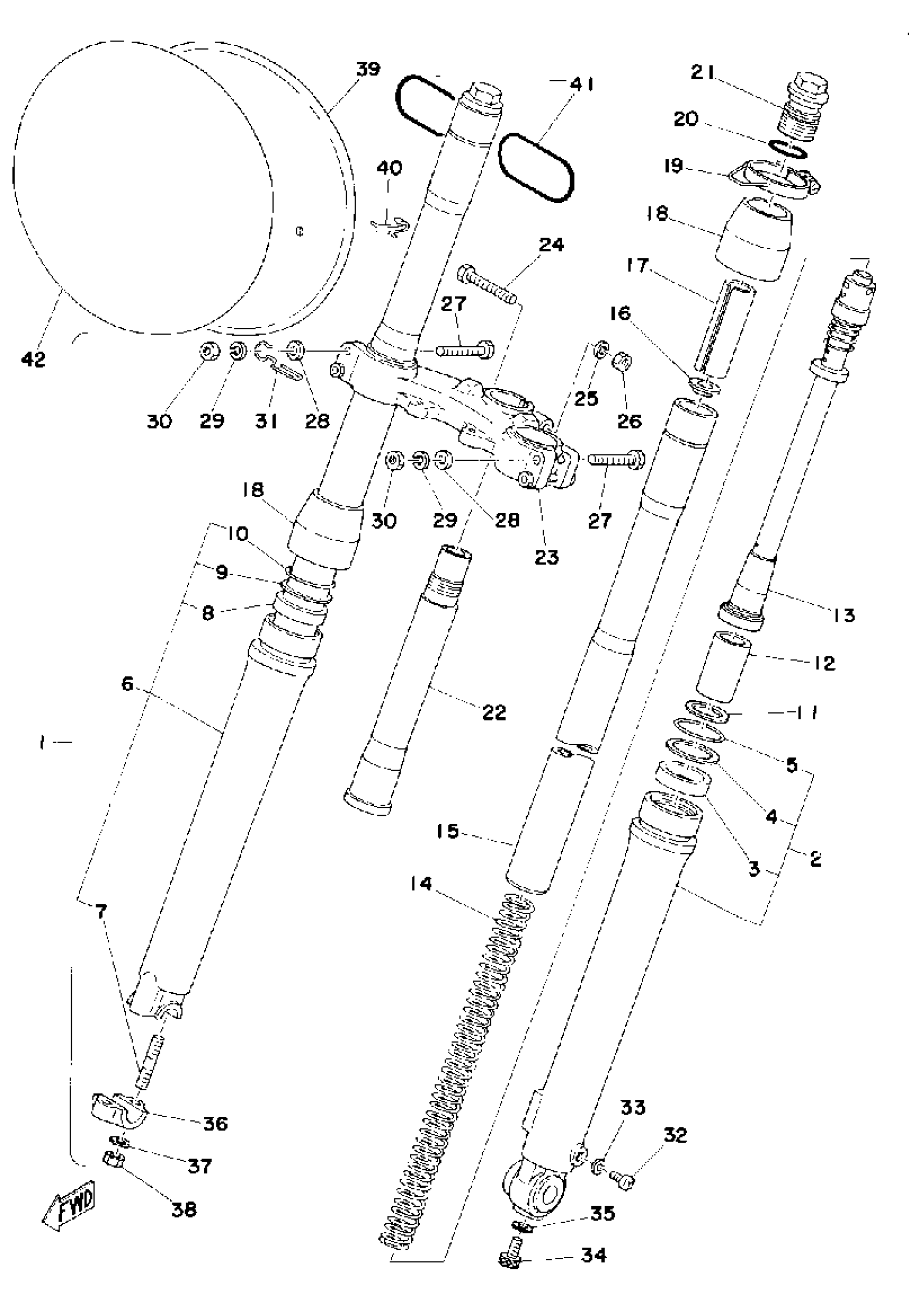

Find the part on the Front Fork diagram for your 1976 Yamaha MX125 (MX125C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha MX125 (MX125C) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(509-23101-01-00)

1
Out of stock

2

TUBE, OUTER 1

(498-23126-00-00)

1
Out of stock

3

OIL SEAL

584-23145-50-00

1

$52.72

In stock

4

.. WASHER, OIL SEAL

214-23146-00-00

1
Out of stock

5

.. CLIP, OIL SEAL

214-23156-00-00

1
Out of stock

6

TUBE, OUTER 2

(498-23136-00-00)

1
Out of stock

7

BOLT, STUD (278)

90116-08261-00

1
Out of stock

8

OIL SEAL

584-23145-50-00

1

$52.72

In stock

9

.. WASHER, OIL SEAL

214-23146-00-00

1
Out of stock

10

.. CLIP, OIL SEAL

214-23156-00-00

1
Out of stock

11

. CIRCLIP, INNER

93450-30033-00

1
Out of stock

12

PISTON, FRONT FORK

(509-23171-00-00)

1
Out of stock

13

CYLINDER, FRONT FORK

(509-23170-01-00)

1
Out of stock

14

SPRING, FRONT FORK

(509-23141-01-00)

1
Out of stock

15

TUBE, INNER 1

(509-23124-01-00)

1
Out of stock

16

. SEAT, SPRING UPPER

278-23142-50-00

1
Out of stock

17

SPACER

(33Y-23118-00-00)

1
Out of stock

18

. SEAL, DUST

292-23144-00-00

1
Out of stock

19

CLAMP, HOSE

(90460-54061-00)

1
Out of stock

20

. GASKET

214-23114-00-00

1
Out of stock

21

BOLT, CAP

(291-23111-60-00)

1
Out of stock

22

SHAFT, STEERING

(1E6-23341-00-00)

1
Out of stock

23

BRACKET, LOWER

(483-23345-00-33)

1
Out of stock

24

BOLT 2

(322-23356-00-00)

1
Out of stock

25

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

26

NUT

(322-23357-00-00)

1
Out of stock

27

BOLT (1E6)

90101-08340-00

—

$2.72

In stock

28

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

29

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

30

NUT, HEXAGON

(90170-08180-00)

1
Out of stock

31

HOLDER, CABLE 2

(434-23319-00-00)

1
Out of stock

32

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

33

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

34

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

35

GASKET

509-23158-L0-00

—

$14.34

In stock

36

. HOLDER, AXLE (291-23167-60)

291-23167-61-00

1
Out of stock

37

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

38

NUT, HEXAGON

(90170-08176-00)

1
Out of stock

39

PLATE, NUMBER

322-23485-00-00

1
Out of stock

40

STAY, PLATE

431-23486-02-00

1
Out of stock

41

O-RING

(93210-44280-00)

1
Out of stock

42

EMBLEM

322-23395-00-00

1
Out of stock
