1974 Yamaha MX125 (MX125A) Transmission Diagram

← All diagrams

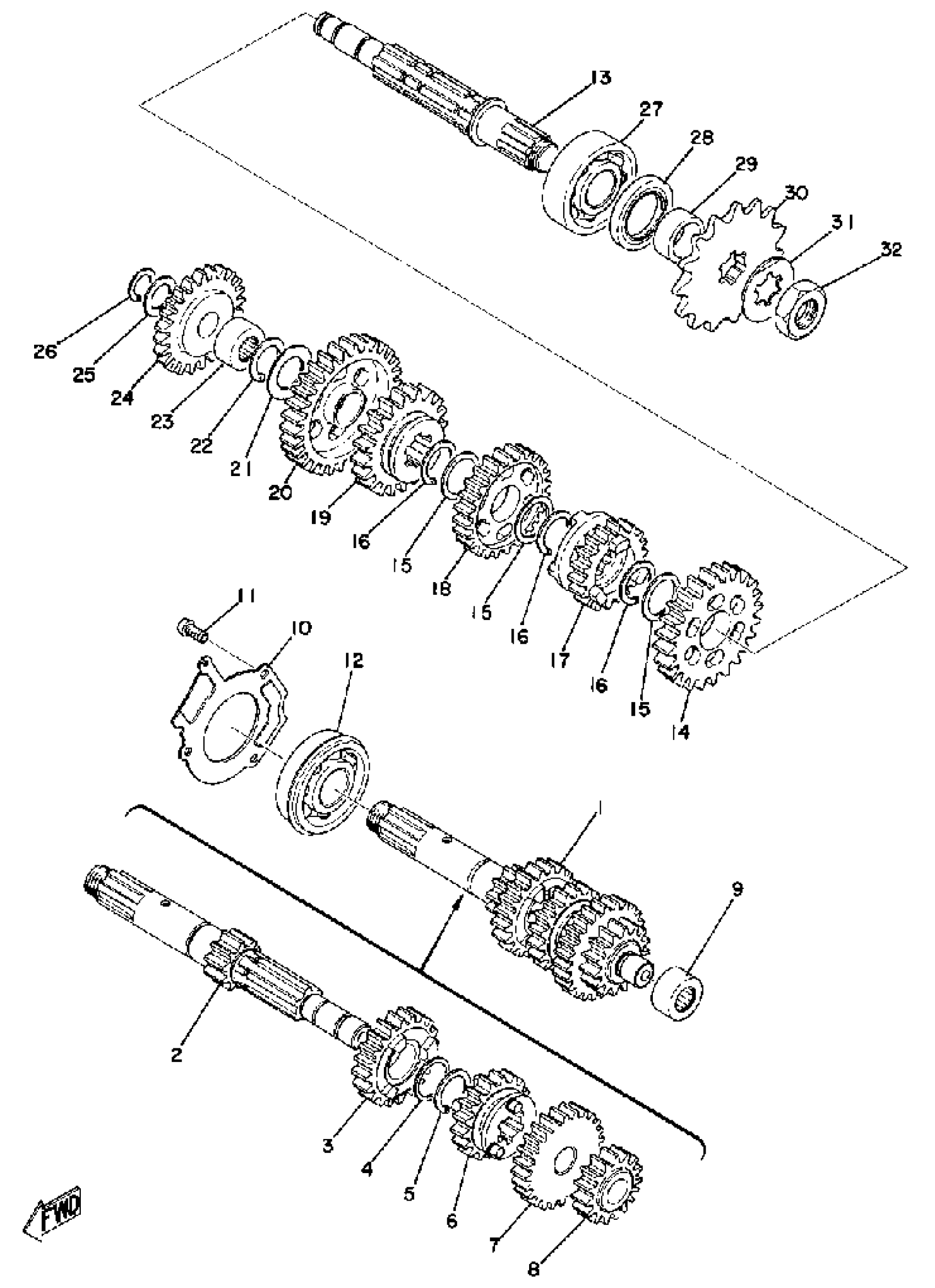

Find the part on the Transmission diagram for your 1974 Yamaha MX125 (MX125A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha MX125 (MX125A) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MAIN AXLE

(401-17410-60-00)

1
Out of stock

2

AXLE, MAIN

(401-17411-00-00)

1
Out of stock

3

GEAR, 4TH PINION

(427-17141-00-00)

1
Out of stock

4

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

5

CIRCLIP (525)

93410-20038-00

1

$2.62

In stock

6

. GEAR, 3RD PINION (19T)

427-17131-00-00

1
Out of stock

7

GEAR, 5TH PINION

(427-17151-00-00)

1
Out of stock

8

GEAR, 2ND PINION

(427-17121-00-00)

1
Out of stock

9

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

1
Out of stock

10

PLATE, COVER

401-17471-00-00

1
Out of stock

11

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock

12

1

$54.91

In stock

13

AXLE, DRIVE

315-17421-01-00

—

$146.51

In stock

14

GEAR, 2ND WHEEL

427-17221-00-00

1
Out of stock

15

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

16

CIRCLIP (525)

93410-20038-00

1

$2.62

In stock

17

GEAR, 5TH WHEEL

(427-17251-00-00)

1
Out of stock

18

GEAR, 3RD WHEEL

427-17231-00-00

—
Out of stock

19

MAIN AXLE

(315-17410-00-00)

1
Out of stock

20

GEAR, 2ND PINION

(315-17121-00-00)

1
Out of stock

21

SHIM, DRIVE AXLE

164-17427-00-06

—

$5.15

In stock

22

CIRCLIP

93440-15012-00

—
Out of stock

23

BEARING, CYLINDRICAL(2TV)

93311-31567-00

—
Out of stock

24

GEAR, KICK IDLE

401-15651-00-00

1
Out of stock

25

WASHER

(132-15653-00-10)

1
Out of stock

26

CIRCLIP(13M)

99009-13400-00

—

$5.66

In stock

27

1

$54.91

In stock

28

OIL SEAL (26X38X5-181)

93102-26042-00

—

$4.20

In stock

29

COLLAR (525)

90387-20491-00

—

$13.71

In stock

30

SPROCKET,DRIVE 14T(5N01746141)

93822-14043-00

—
Out of stock

30

SPROCKET,DRIVE 15T(1741746150)

93822-15065-00

—
Out of stock

30

—

$18.58

In stock

31

WASHER, LOCK (1L8)

90215-16127-00

—

$8.91

In stock

32

NUT,SPEC'L SHAPE

90179-16018-00

—

$11.26

In stock
