1974 Yamaha MX125 (MX125A) Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1974 Yamaha MX125 (MX125A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

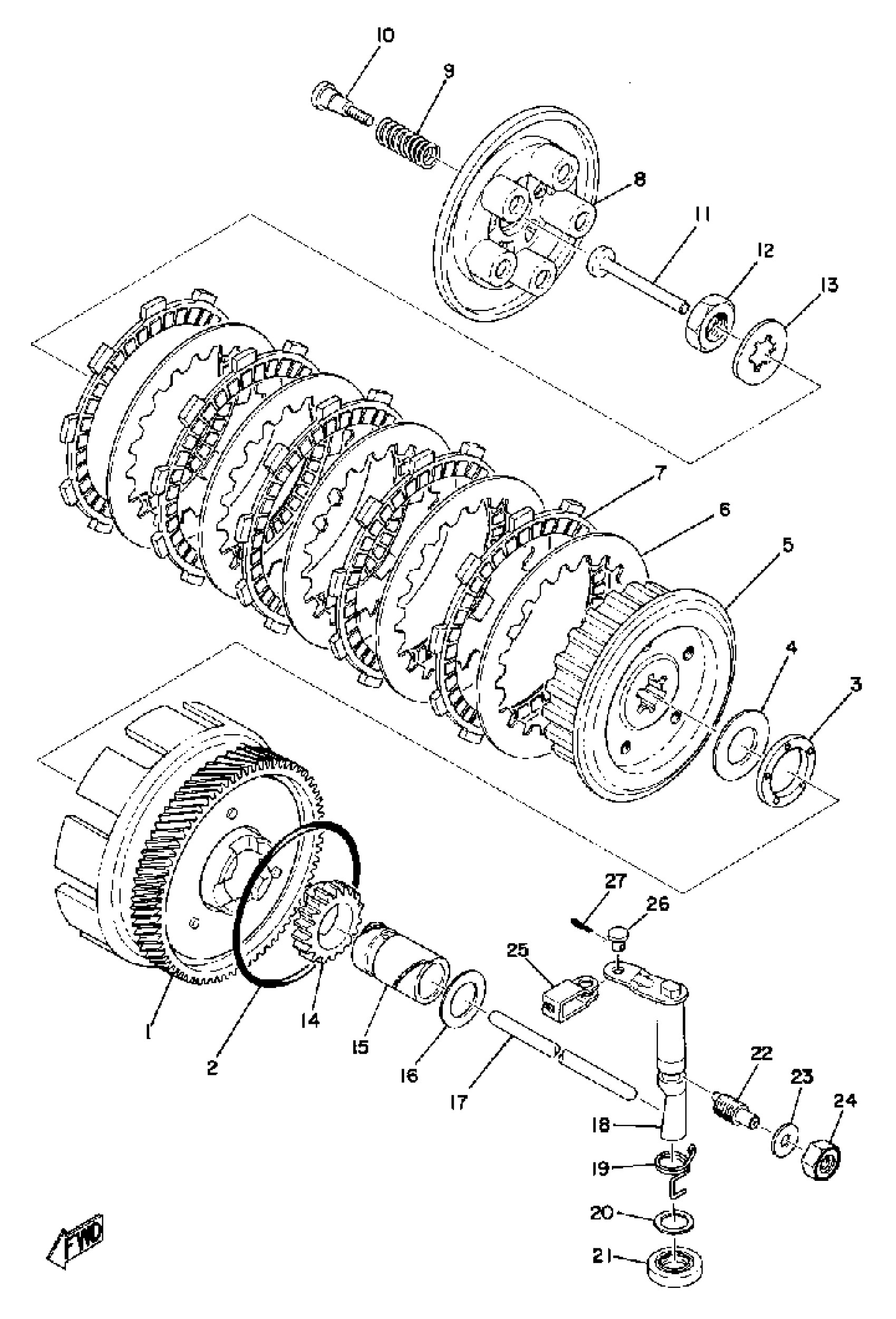

1974 Yamaha MX125 (MX125A) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRI DRVN GEAR

(401-16150-00-00)

1
Out of stock

1

CLUTCH ASSEMBLY

(401-16301-00-00)

1
Out of stock

2

O-RING (173)

93210-85075-00

1

$4.52

In stock

2

O-RING (353)

93210-98202-00

1
Out of stock

3

. BEARING, FLAT #41

93341-22603-00

1
Out of stock

4

. PLATE, THRUST 1

174-16154-00-00

1
Out of stock

5

. BOSS, CLUTCH

174-16371-01-00

1
Out of stock

6

PLATE, CLUTCH 1

336-16324-10-00

1

$17.51

In stock

7

PLATE,FRICTION

401-16321-09-00

1
Out of stock

8

PLATE, PRESSURE

132-16351-00-00

1

$50.51

In stock

9

SPRING (137-16333-00)

90501-20122-00

1
Out of stock

10

SCREW, SPECL SHAPE

(90149-05147-00)

1
Out of stock

11

ROD,PUSH (1)

137-16356-00-00

1

$28.05

In stock

12

NUT,SPEC'L SHAPE

90179-16018-00

1

$11.26

In stock

13

WASHER, LOCK (1L8)

90215-16127-00

1

$8.91

In stock

14

GEAR, KICK PINION

261-15631-01-00

1
Out of stock

15

COLLAR (174-16181-00)

90387-20439-00

1
Out of stock

16

PLATE, THRUST 2

248-16164-01-00

1
Out of stock

17

ROD, PUSH 2

401-16357-00-00

1
Out of stock

18

AXLE, PUSH LEVER

401-16382-02-00

1
Out of stock

19

SPRING, TORSION

90508-14132-00

1
Out of stock

20

WASHER PLATE 150251530000

90201-14217-00

—
Out of stock

21

OIL SEAL (14X25X5-2H7)

93104-14059-00

—
Out of stock

22

SCREW, ADJUSTING

364-16343-00-00

—
Out of stock

23

GASKET (3JD1)

90430-12207-00

—

$6.77

In stock

24

NUT, CLUTCH ADJUSTING

583-16344-00-00

—
Out of stock

25

JOINT

214-16389-00-00

—
Out of stock

26

PIN, WITH HOLE (248-27228-00)

90240-06006-00

—
Out of stock

27

. PIN, COTTER

91401-10015-00

1
Out of stock
