1974 Yamaha MX125 (MX125A) Kick Starter Diagram

← All diagrams

Find the part on the Kick Starter diagram for your 1974 Yamaha MX125 (MX125A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

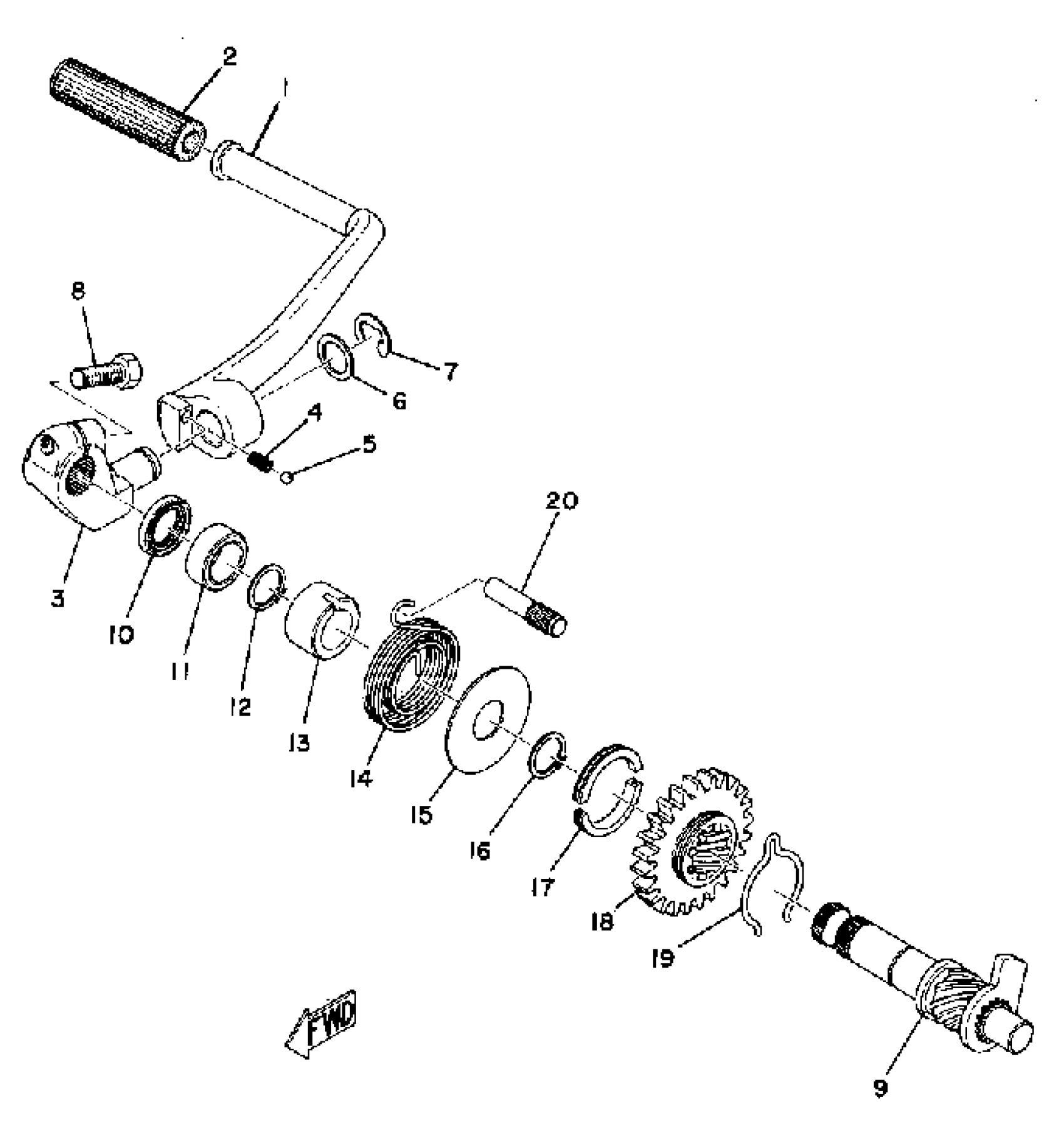

1974 Yamaha MX125 (MX125A) Kick Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANK, KICK

401-15611-00-93

1
Out of stock

2

COVER, KICK LEVER

156-15618-01-00

1

$6.43

In stock

3

BOSS, KICK CRANK

401-15621-00-00

1
Out of stock

4

SPRING COMPRESSION278156220000

90501-12081-00

1
Out of stock

5

BALL (12R)

93507-32031-00

1
Out of stock

6

WASHER PLATE 278156130000

90201-15234-00

1

$6.78

In stock

7

CIRCLIP

99006-10600-00

1

$6.91

In stock

8

BOLT, SOCKET

91317-08025-00

1

$6.25

In stock

9

KICK AXLE ASY

401-15660-02-00

1
Out of stock

10

OIL SEAL (17X25X4-401)

93101-17062-00

1

$12.58

In stock

11

SPACER

90560-17032-00

1
Out of stock

12

CIRCLIP(1EY)

99009-17400-00

1
Out of stock

13

SPACER

401-15666-00-00

1
Out of stock

14

1

$5.45

In stock

15

COVER, SPRING

401-15676-00-00

1

$6.43

In stock

16

CIRCLIP(4A6)

99009-30400-00

—

$6.55

In stock

17

HOLDER, KICK GEAR

248-15654-00-00

—

$6.49

In stock

18

GEAR, KICK

315-15641-00-00

—
Out of stock

19

CLIP 315156870000

90468-26048-00

—
Out of stock

20

STOPPER, KICK SPRING

257-15668-00-00

1
Out of stock
