1974 Yamaha MX125 (MX125A) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1974 Yamaha MX125 (MX125A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

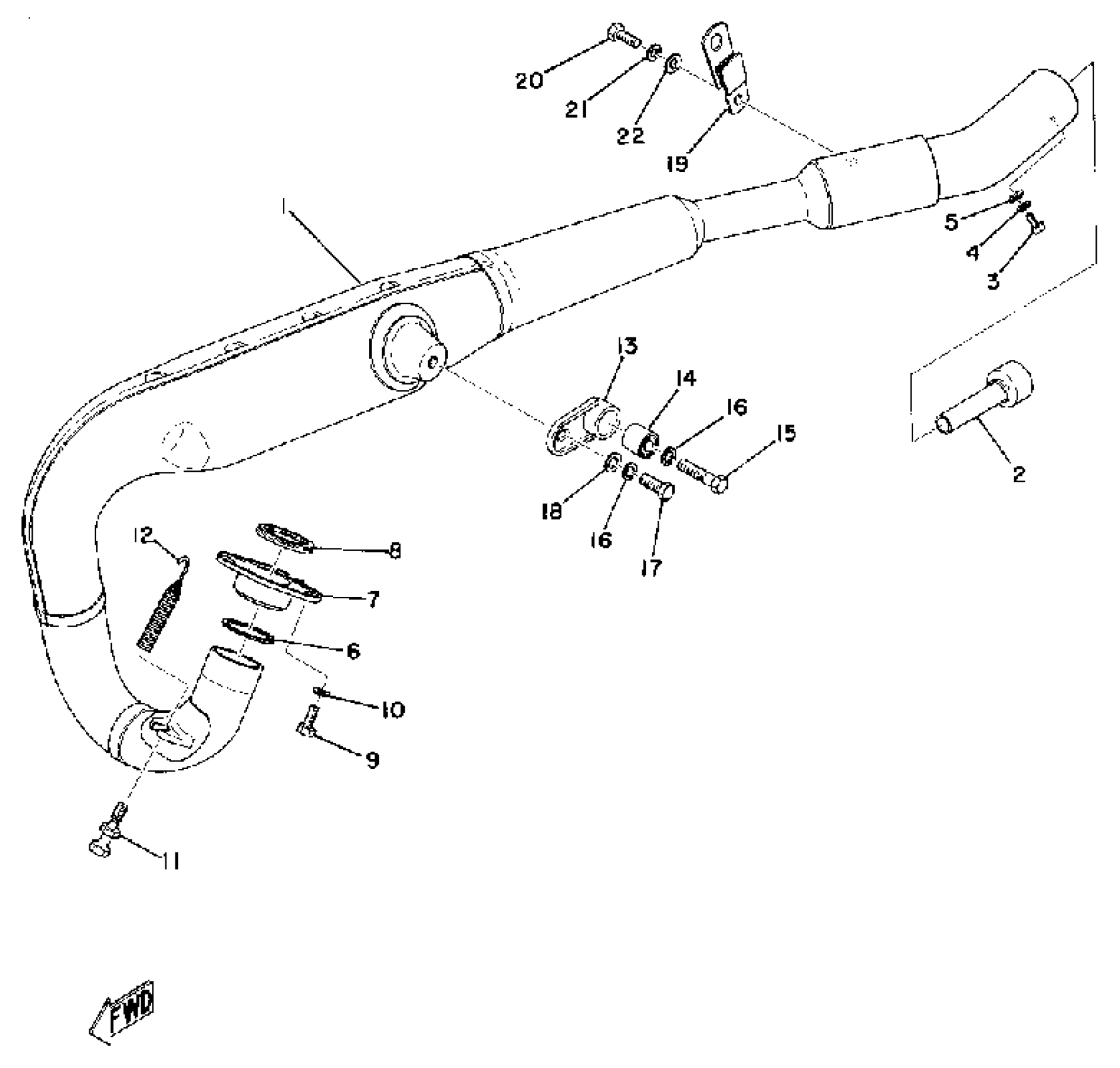

1974 Yamaha MX125 (MX125A) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L

(402-14610-01-00)

1
Out of stock

2

. PIPE, OUTLET

291-14752-30-00

1
Out of stock

3

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

4

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

5

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

6

GASKET

248-14623-10-00

1

$6.22

In stock

7

NUT, RING

2K5-14612-00-00

1
Out of stock

8

GASKET, EXHAUST PIPE

3PA-14613-10-00

1
Out of stock

9

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

BOLT (322-14684-10)

90109-08305-00

1
Out of stock

12

SPRING,TENSION

90507-20012-00

1
Out of stock

13

STAY, MUFFLER 1

363-14771-00-00

1
Out of stock

14

BUSHING, REAR CUSHION

164-22216-00-00

1

$12.17

In stock

15

BOLT

97013-08035-00

1

$4.80

In stock

16

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

17

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

18

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

19

STAY, MUFFLER 1

308-14771-00-00

1
Out of stock

19

STAY 5

363-14782-10-00

1
Out of stock

20

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock
