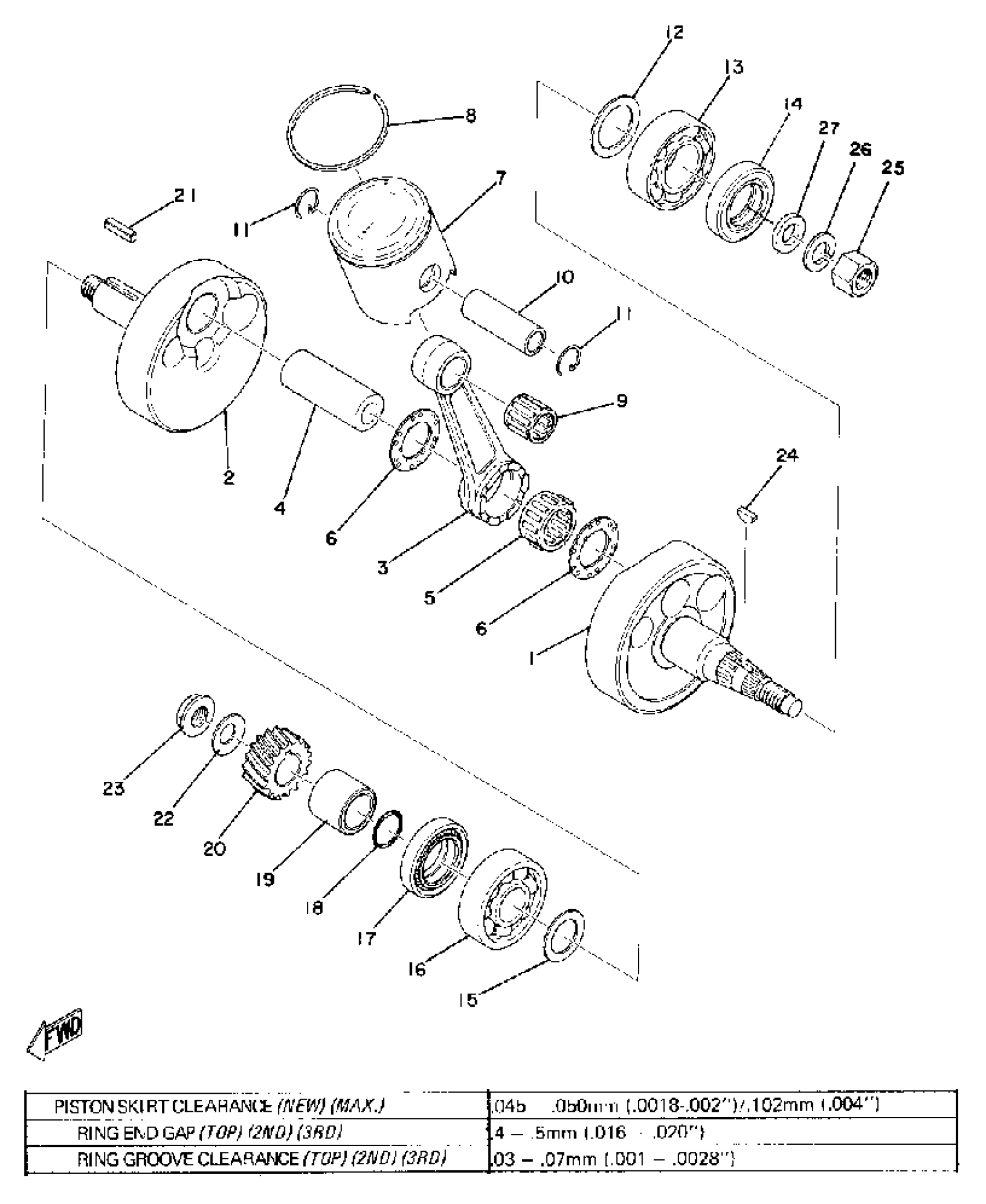

Find the part on the Crank - Piston diagram for your 1974 Yamaha MX125 (MX125A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha MX125 (MX125A) Crank - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

(401-11400-02-00)

1
Out of stock

1

CRANK 1

(452-11412-00-00)

1
Out of stock

2

CRANK 2

(401-11422-00-00)

1
Out of stock

2

PISTON KIT STD

(401-11630-00-00)

1
Out of stock

2

PISTON KIT 2ND

(401-11630-20-00)

1
Out of stock

2

PISTON KIT 3RD

(401-11630-30-00)

1
Out of stock

2

PISTON KIT 4TH

(401-11630-40-00)

1
Out of stock

2

UNAVAILABLE IN PRICE BOOK

401-11631-10-00

1
Out of stock

3

. ROD, CONNECTING

3R2-11651-01-00

1
Out of stock

4

PIN, CRANK 1

3M5-11681-00-00

1

$21.97

In stock

5

BEARING, CYLINDRICAL(3SB)

93310-422C8-00

1

$42.77

In stock

6

WASHER (29L)

90209-22248-00

—
Out of stock

7

PISTON STD

(401-11631-00-96)

1
Out of stock

7

PISTON 1 O/S 0.25

(401-11635-00-00)

1
Out of stock

7

PISTON 2 O/S 0.50

401-11636-00-00

1
Out of stock

7

PISTON 3 O/S 0.75

401-11637-00-00

1
Out of stock

7

PISTON 4 O/S 1.00

401-11638-00-00

1
Out of stock

8

RING, PISTON STD

401-11611-01-00

1
Out of stock

8

RING, PISTON 1ST

401-11611-11-00

1
Out of stock

8

RING, PISTON 2ND

401-11611-21-00

1
Out of stock

8

RING, PISTON 3RD

401-11611-31-00

1
Out of stock

8

RING, PISTON 4TH

401-11611-41-00

1
Out of stock

9

BEARING, NEEDLE (24X)

93310-216L2-00

—

$28.54

In stock

10

PIN, PISTON

137-11633-10-00

—

$21.92

In stock

11

CIRCLIP (137-11634-00)

93450-17025-00

—

$6.17

In stock

12

. SHIM, CRANK 1

132-11561-00-03

1
Out of stock

12

SHIM, CRANK 1

132-11561-00-05

1
Out of stock

13

—

$35.25

In stock

14

OIL SEAL (25X40X8-248)

93102-25061-00

—

$11.00

In stock

15

SHIM, CRANK 1

136-11561-00-04

1
Out of stock

15

SHIM, CRANK 1

136-11561-00-05

1
Out of stock

15

SHIM, CRANK 1

136-11561-00-06

1
Out of stock

15

SHIM, CRANK 1

136-11561-00-07

1
Out of stock

15

OIL SEAL (28X40X8-132)

93103-28011-00

—

$12.05

In stock

15

—

$54.91

In stock

18

O-RING(3KX)

93210-180A6-00

—

$4.78

In stock

19

COLLAR (4Y2)

90387-205E9-00

—
Out of stock

20

GEAR, PRIMARY DRIVE (C)

401-16111-00-30

—
Out of stock

21

KEY, STRAIGHT 3531154600

90282-05005-00

—
Out of stock

22

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

—
Out of stock

23

NUT(1EE)

90179-12659-00

—

$5.37

In stock

24

KEY WOODRUFF 146115450000

90280-03017-00

—

$5.78

In stock

25

NUT(55K)

90170-12347-00

—

$8.43

In stock

26

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

27

WASHER (492)

90201-12535-00

—
Out of stock
