1980 Yamaha MX100 (MX100G) Stand - Footrest Diagram

← All diagrams

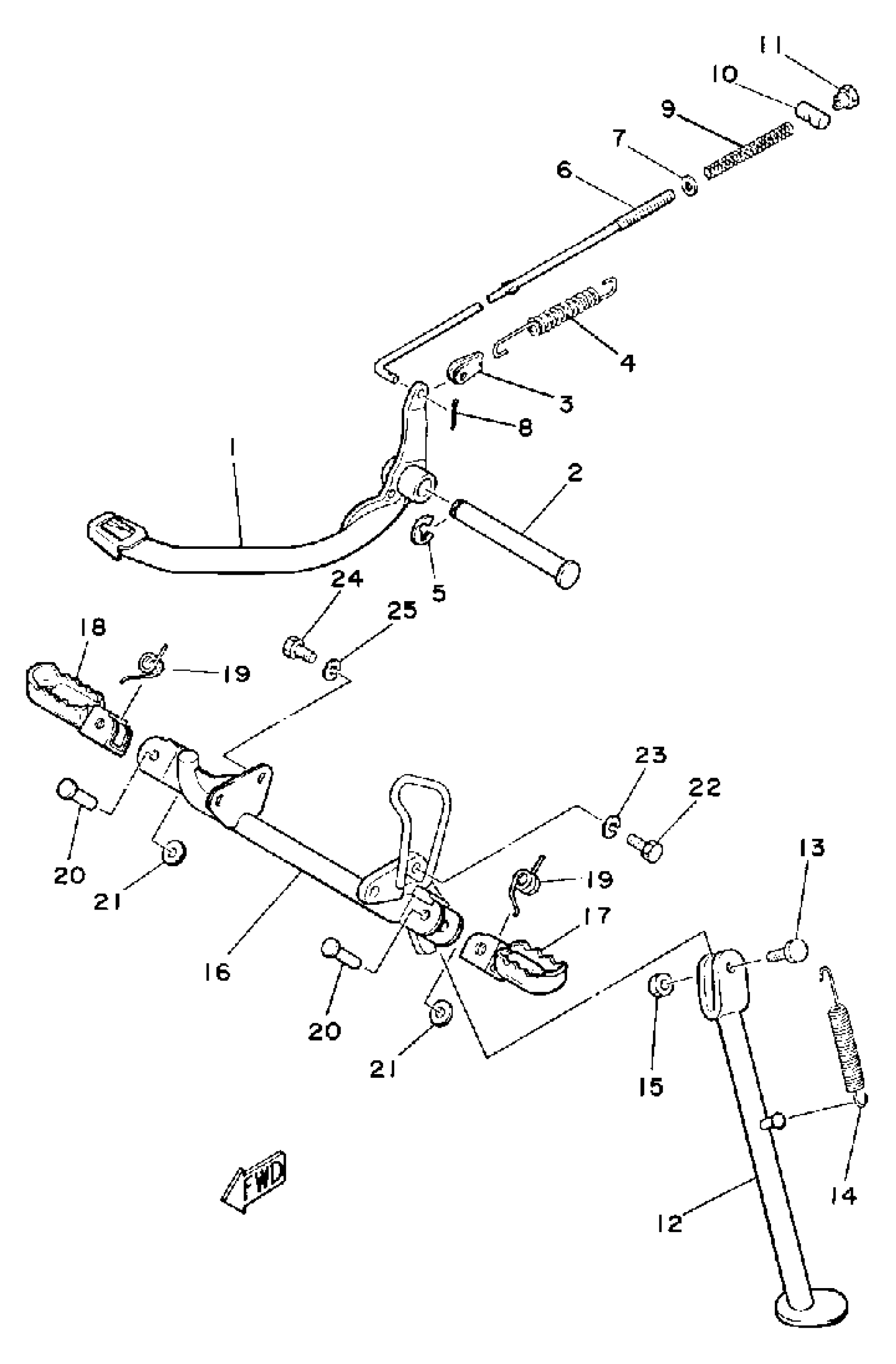

Find the part on the Stand - Footrest diagram for your 1980 Yamaha MX100 (MX100G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha MX100 (MX100G) Stand - Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL,BRAKE

538-27211-01-00

1
Out of stock

2

SHAFT, BRAKE PEDAL

2A3-27212-00-00

1
Out of stock

3

HOOK

1T9-27254-00-00

1
Out of stock

4

SPRING, TENSION

90506-20157-00

1
Out of stock

5

CIRCLIP (122)

93430-12008-00

1

$5.10

In stock

6

ROD, BRAKE

1T9-27231-00-00

1
Out of stock

7

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

8

PIN, COTTER

91490-20025-00

1

$1.31

In stock

9

SPRING, (180-27236-00)

90501-10245-00

1

$6.17

In stock

10

PIN 1562723700

90249-12008-00

1

$4.70

In stock

11

NUT (25K)

90179-06411-00

1

$5.10

In stock

12

STAND, SIDE

367-27311-02-R4

1
Out of stock

13

BOLT 137273170000

90109-08031-00

1

$7.52

In stock

14

1

$9.80

In stock

15

. NUT

95380-08700-00

1

$3.07

In stock

16

FOOTREST

1T9-27451-02-R4

1
Out of stock

17

FOOTREST 1

22W-27411-01-90

—
Out of stock

18

FOOTREST 2

22W-27421-01-90

—

$29.63

In stock

19

—

$3.26

In stock

20

PIN (214-27418-00)

90243-08006-00

—

$10.68

In stock

21

—

$6.58

In stock

22

BOLT, HEXAGON

97013-08020-00

—

$1.54

In stock

23

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

24

BOLT, HEXAGON

97013-08016-00

—

$1.32

In stock

25

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock
