1974 Yamaha MX100 (MX100A) Steering Diagram

← All diagrams

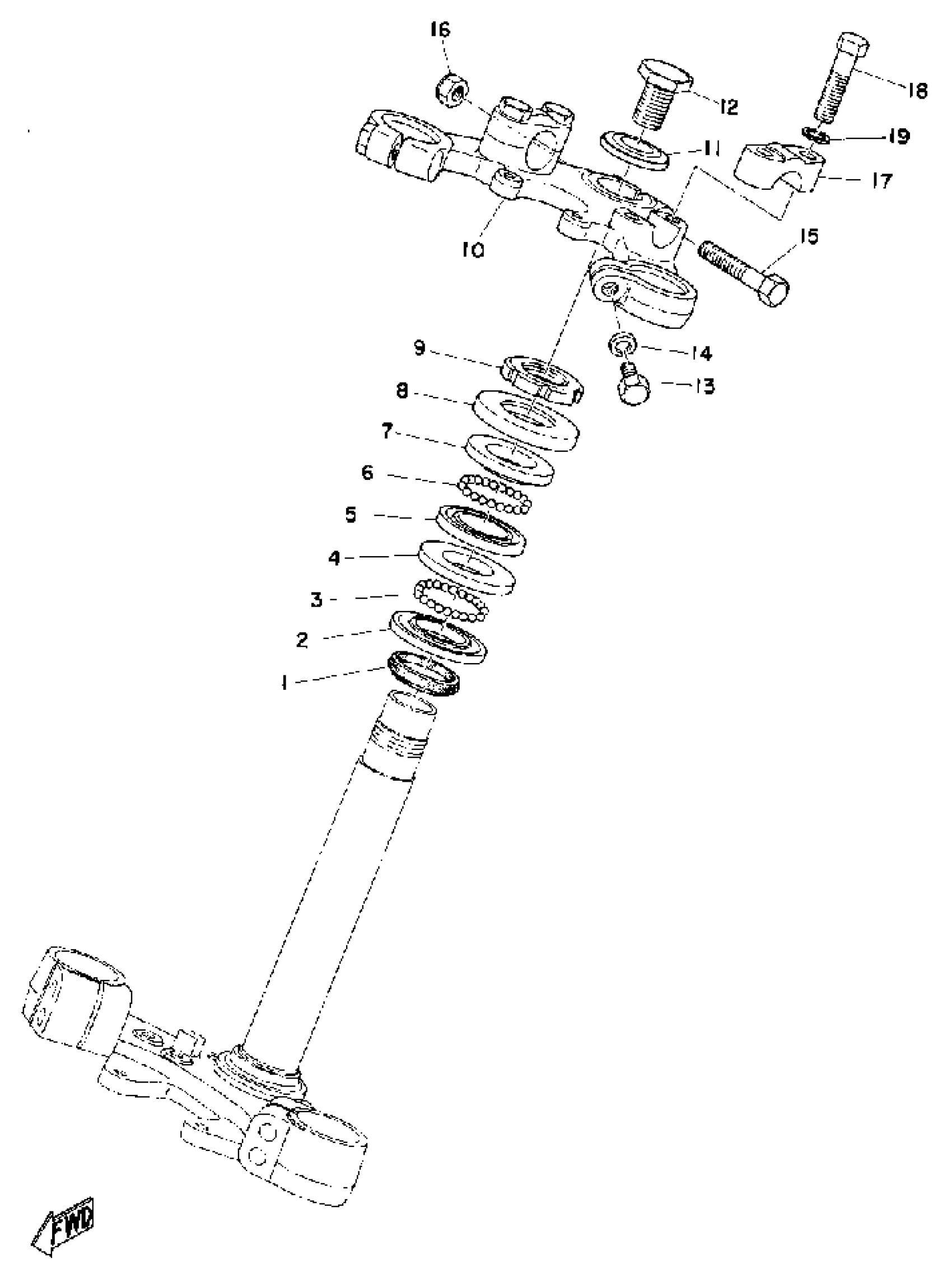

Find the part on the Steering diagram for your 1974 Yamaha MX100 (MX100A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha MX100 (MX100A) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAL, DUST

164-23462-00-00

1

$6.42

In stock

2

RACE, BALL 1

B6E-23411-00-00

1

$7.02

In stock

3

BALL

93501-04011-00

1
Out of stock

4

RACE, BALL 2

B6E-23412-00-00

1

$9.71

In stock

5

RACE, BALL 1

BP2-23411-00-00

1

$8.40

In stock

6

BALL

93503-16003-00

1

$2.14

In stock

7

RACE, BALL 2

BP2-23412-00-00

1

$5.71

In stock

8

COVER, BALL RACE

122-23416-00-00

1

$6.40

In stock

9

NUT

90179-25004-00

1

$20.78

In stock

10

CROWN, HANDLE

(248-23435-03-33)

1
Out of stock

11

WASHER, SPECIAL SHAPE

90209-14022-00

1
Out of stock

12

BOLT

90101-14113-00

1
Out of stock

13

BOLT (8J7)

97013-10030-00

1

$8.91

In stock

14

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

15

BOLT

97013-08045-00

—
Out of stock

16

NUT, U

95617-08100-00

—

$6.78

In stock

17

HOLDER, HANDLE UPPER

401-23441-00-98

1
Out of stock

18

BOLT

97013-08035-00

—

$4.80

In stock

19

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock
