1974 Yamaha MX100 (MX100A) Front Wheel Diagram

← All diagrams

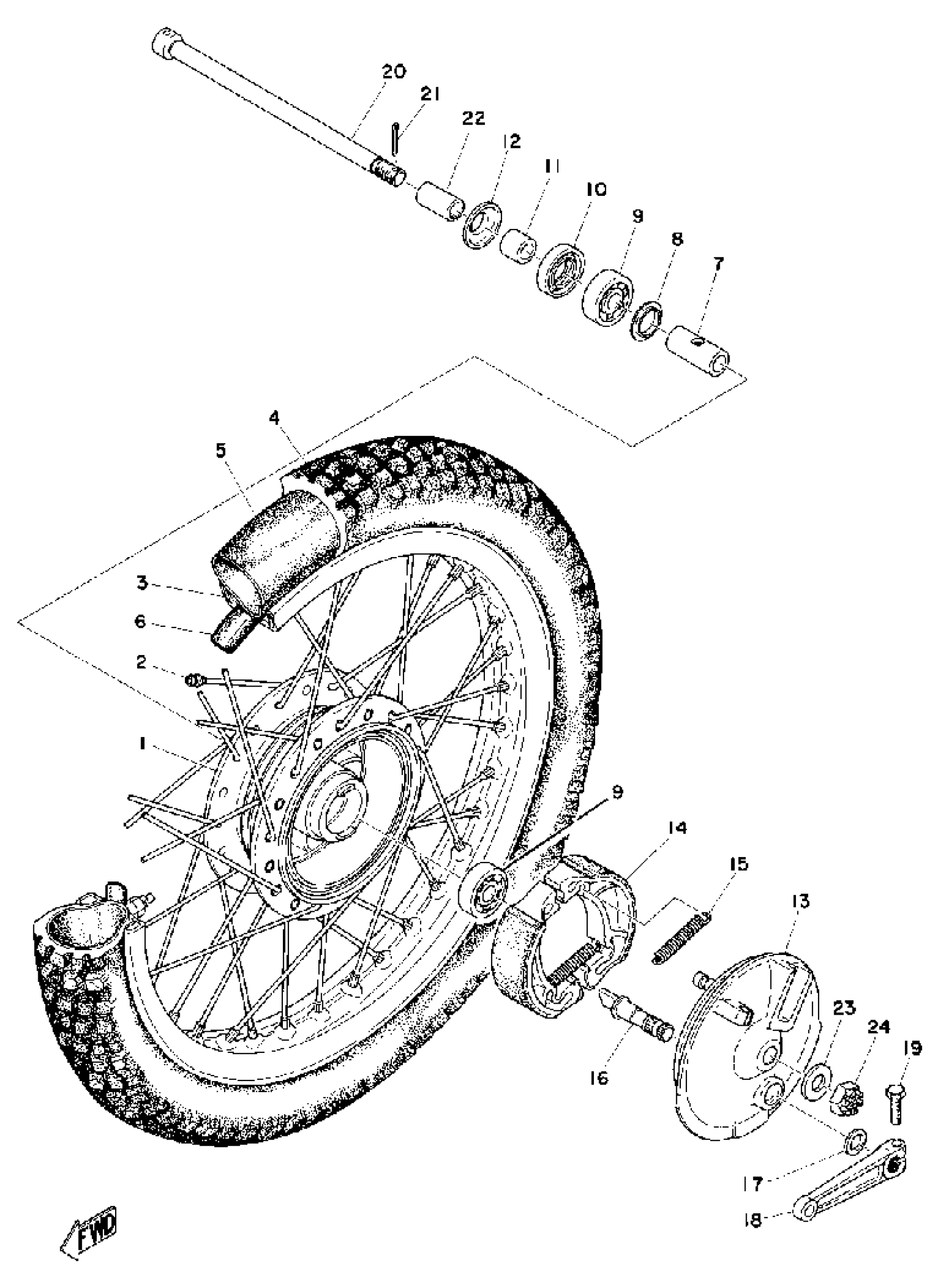

Find the part on the Front Wheel diagram for your 1974 Yamaha MX100 (MX100A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha MX100 (MX100A) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(248-25111-00-38)

1
Out of stock

2

SPOKE SET, FRONT

276-25104-40-00

1
Out of stock

2

SPOKE SET, INNER 1

(276-25196-80-00)

1
Out of stock

2

SPOKE SET, OUTER 1

(276-25197-80-00)

1
Out of stock

3

RIM (1.40-19)

94414-19003-00

1
Out of stock

4

275X19 YOKO Y620

(94127-19321-00)

1
Out of stock

5

TUBE (2.75-19)(3GX)

94227-19292-00

—

$33.15

In stock

6

BAND, RIM

94327-19111-00

1

$12.51

In stock

7

SPACER

90560-12138-00

—

$12.83

In stock

8

FLANGE, SPACER

109-25315-00-00

1

$6.20

In stock

9

BEARING

93306-30102-00

1
Out of stock

10

OIL SEAL (18X37X8-109)

93102-18008-00

1

$22.31

In stock

11

COLLAR 1832518300

90387-12095-00

1

$4.63

In stock

12

COVER, HUB DUST

2K5-25118-00-00

1
Out of stock

13

PLATE, BRAKE SHOE

(402-25121-00-00)

1
Out of stock

14

BRAKE SHOE SET-2 PCS

326-W2536-00-00

1
Out of stock

15

SPRING, TENSION (566).

90506-16150-00

—

$6.98

In stock

16

CAM SHAFT

122-25351-02-00

—

$36.95

In stock

17

SEAL, CAMSHAFT

137-25159-00-00

1
Out of stock

18

LEVER, CAMSHAFT 1 (401-25155-00)

401-25155-11-00

1
Out of stock

19

BOLT(3DM)

97024-06020-00

—

$6.17

In stock

20

AXLE, WHEEL

427-25181-10-00

1
Out of stock

21

PIN, COTTER

91490-30030-00

—

$7.15

In stock

22

COLLAR

90387-12099-00

1
Out of stock

23

YBS66-12 WASHER,PLAIN

92990-12200-00

—

$6.17

In stock

24

NUT CASTLE(481)

90171-12005-00

—

$7.35

In stock
