1974 Yamaha MX100 (MX100A) Rear Wheel Diagram

← All diagrams

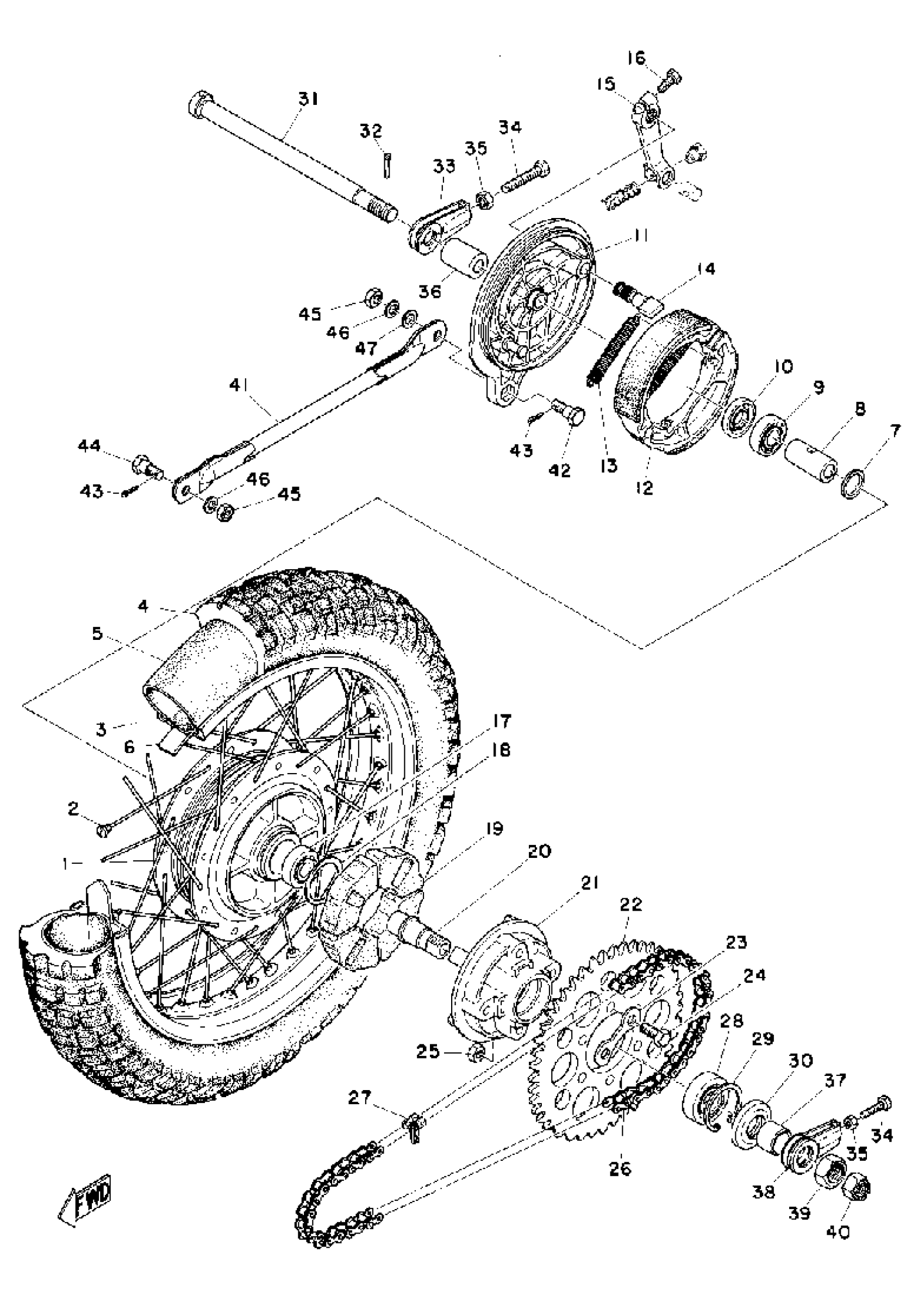

Find the part on the Rear Wheel diagram for your 1974 Yamaha MX100 (MX100A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha MX100 (MX100A) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

183-25311-00-00

1
Out of stock

2

SPOKE SET, REAR

183-25304-01-00

1
Out of stock

2

SPOKE SET, INNER 2

(183-25396-90-00)

1
Out of stock

2

SPOKE SET, OUTER 2

(183-25397-90-00)

1
Out of stock

3

RIM (1.40-18)

94414-18545-00

1

$107.12

In stock

4

325X18 YOKO RAYON

(94132-18089-00)

1
Out of stock

5

TUBE (5H5)

94227-18195-00

1
Out of stock

6

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

7

FLANGE, SPACER

146-25116-00-00

1
Out of stock

8

SPACER 136253170000

90560-15136-00

—

$17.45

In stock

9

BRG, R-B (7H4)

93306-20211-00

1

$22.05

In stock

10

OIL SEAL (22X35X5)

93104-22018-00

1
Out of stock

11

BRAKE SHOE PLATE ASSY

437-25026-10-35

—

$189.92

In stock

12

BRAKE SHOE SET-2PCS

183-W2536-00-00

1
Out of stock

13

SPRING (5T9)

90506-17328-00

—

$9.32

In stock

14

CAMSHAFT

2RH-25351-00-00

—

$29.14

In stock

15

LEVER, CAM SHAFT

214-25355-00-00

—

$63.43

In stock

16

BOLT(3DM)

97024-06020-00

—

$6.17

In stock

17

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

—

$21.28

In stock

18

O-RING (183)

93210-42101-00

—

$7.74

In stock

19

DAMPER, CLUTCH

304-25364-01-00

—

$21.12

In stock

20

SHAFT, SPROCKET

183-25387-00-00

—
Out of stock

21

CLUTCH, HUB

58K-25366-00-00

1
Out of stock

22

SPROCKET, DRIVEN 49T

276-25449-10-00

1
Out of stock

22

SPROCKET, DRIVEN 52T

276-25452-10-00

1
Out of stock

22

SPROCKET, DRIVN 55T

(276-25455-10-33)

1
Out of stock

23

WASHER

4AW-25412-00-00

—

$4.24

In stock

24

BOLT(1AJ)

90101-08672-00

—

$2.69

In stock

25

NUT(3KX)

90179-08639-00

—

$7.95

In stock

25

NUT(6L2)

95333-08600-00

—

$3.20

In stock

26

428 STD 110L

(94504-28110-00)

1
Out of stock

27

JOINT, CHAIN(3KX)

94681-64001-00

—
Out of stock

28

BEARING(3BN)

93306-00438-00

—

$32.22

In stock

29

CIRCLIP(5U8)

99009-42500-00

—

$6.77

In stock

30

SEAL,OIL

93106-26005-00

—

$6.67

In stock

31

AXLE, WHEEL

382-25381-00-00

1
Out of stock

32

PIN, COTTER

91490-30030-00

—

$7.15

In stock

33

PULLER, CHAIN

248-25388-00-00

—

$35.90

In stock

34

BOLT

90101-08060-00

—

$4.92

In stock

35

. NUT

95380-08700-00

1

$3.07

In stock

36

COLLAR

90387-15425-00

1
Out of stock

37

COLLAR 183253860000

90387-20165-00

—

$5.77

In stock

38

PULLER, CHAIN 1

214-25388-00-00

1
Out of stock

39

NUT, HEXAGON

90170-20167-00

—
Out of stock

40

NUT, CASTLE(2UJ)

90171-14056-00

—

$10.57

In stock

41

BAR, TENSION

(401-25371-01-00)

1
Out of stock

42

BOLT 1092537300

90109-08063-00

—
Out of stock

43

PIN, COTTER

91490-20025-00

—

$1.31

In stock

44

BOLT (183-25378-00)

90109-08368-00

—

$7.00

In stock

45

. NUT

95380-08700-00

1

$3.07

In stock

46

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

47

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock
