1974 Yamaha MX100 (MX100A) Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1974 Yamaha MX100 (MX100A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

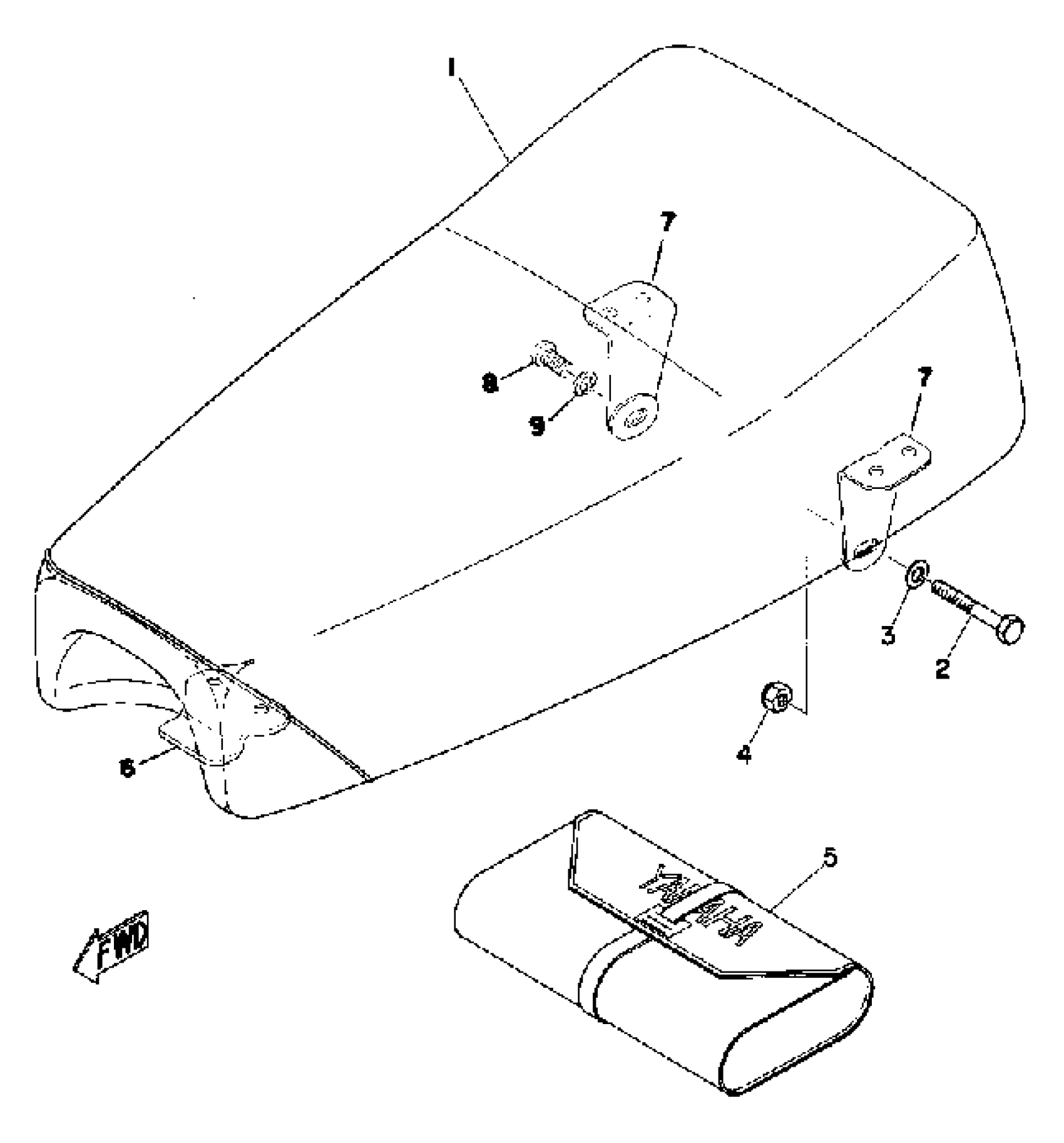

1974 Yamaha MX100 (MX100A) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SM-DBL SEAT

(401-24771-00-00)

1
Out of stock

1

SEMI-DBL SEAT ASSEMBLY

(427-24770-00-00)

1
Out of stock

2

BOLT

97013-08045-00

—
Out of stock

3

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

4

NUT, U

95617-08100-00

1

$6.78

In stock

5

TOOL KIT

(363-28100-10-00)

1
Out of stock

6

BRACKET, SEAT

2Y0-24748-00-00

1
Out of stock

7

BRACKET, SEAT

(322-24738-00-00)

1
Out of stock

8

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
