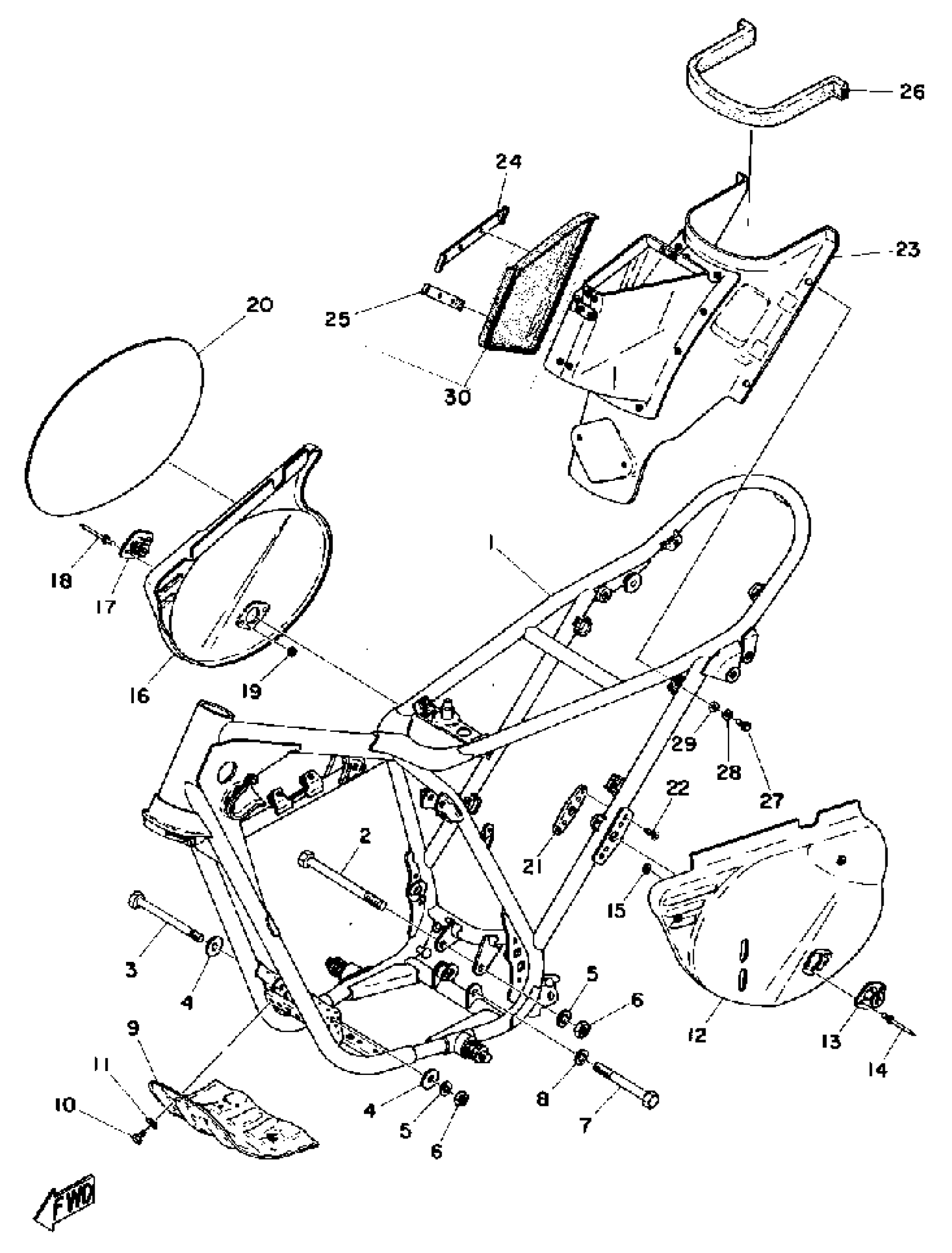

Find the part on the Frame - Side Cover diagram for your 1974 Yamaha MX100 (MX100A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha MX100 (MX100A) Frame - Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT

403-21511-01-20

1
Out of stock

2

BOLT, WASHER BASED (401)

90105-08120-00

1

$6.26

In stock

3

BOLT

90105-08024-00

1

$6.46

In stock

4

WASHER (401)

90209-08050-00

1

$7.75

In stock

5

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

6

. NUT, SELF-LOCKING

90185-09M01-00

1

$8.70

In stock

7

BOLT

90105-10037-00

—

$7.51

In stock

8

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

9

PROTECTOR, ENGINE

(401-21471-00-90)

1
Out of stock

10

BOLT (661)

97013-06012-00

1

$4.71

In stock

11

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

12

BOX, AIR CLEANER

(401-21240-02-00)

1
Out of stock

12

BOX, AIR CLEANER

(401-21240-02-00)

1
Out of stock

13

BRACKET, FRT UPR 2

(438-21416-01-33)

1
Out of stock

14

RIVET,BLIND

90267-40080-00

1
Out of stock

15

WASHER

90201-04015-00

—
Out of stock

16

BOX, AIR CLEANER

(401-21240-02-00)

1
Out of stock

16

FENDER, FRONT

453-21511-01-00

1
Out of stock

17

BRACKET, FRT UPR 2

(438-21416-01-33)

1
Out of stock

18

RIVET,BLIND

90267-40080-00

1
Out of stock

19

WASHER

90201-04015-00

—
Out of stock

20

BOX, AIR CLEANER

(401-21240-02-00)

1
Out of stock

21

NUT, PLATE

363-21736-00-00

1
Out of stock

22

SCREW, FLAT

98707-03008-00

—

$5.62

In stock

23

BOX, AIR CLEANER

(401-21240-02-00)

1
Out of stock

24

. PATCH 1

402-21256-00-00

1
Out of stock

25

. PATCH 1

402-21256-00-00

1
Out of stock

26

BOX, AIR CLEANER

(401-21240-02-00)

1
Out of stock

27

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

28

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

29

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

30

. SEAL

402-21269-00-00

1
Out of stock
