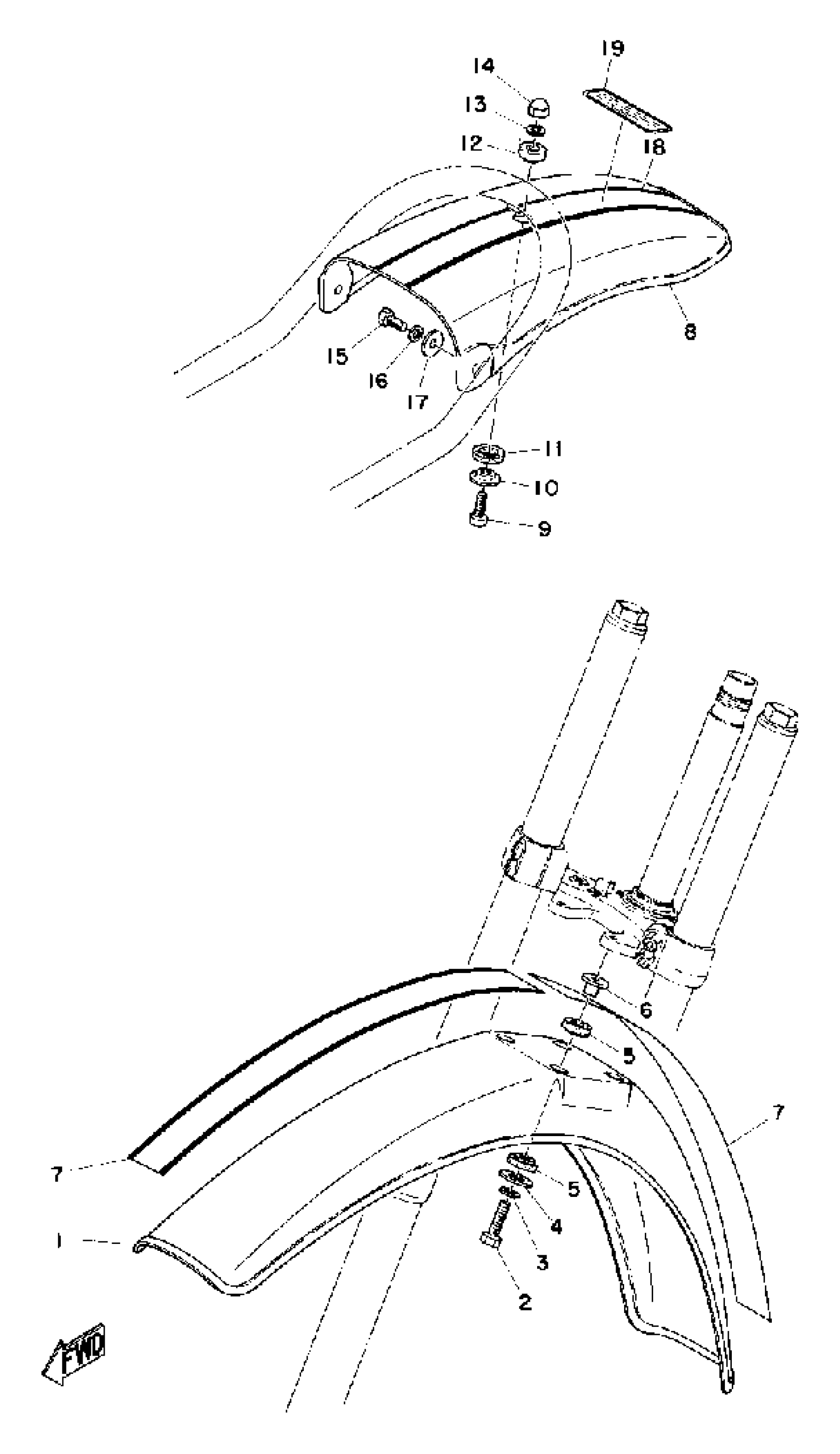

Yamaha MX100A (MX100) 1974 FRONT FENDER - REAR FENDER Diagram

#

Description
Price

1

GRAPHIC, FUEL TNK 3

(427-24246-11-00)

Unavailable

1

SPRING, FRONT FORK

525-23141-01-00

Unavailable

2

BOLT, HEXAGON

97017-06025-00

$2.78

3

WASHER, SPRING

92995-06100-00

$2.95

4

WASHER, PLATE

90201-06380-00

$0.54

5

DAMPER, FENDER

322-21541-00-00

$6.28

6

COLLAR

90387-06158-00

$5.75

7

MOLD, FENDER

(402-21519-00-00)

Unavailable

8

FENDER, REAR

(402-21611-00-00)

Unavailable

8

FENDER, REAR

(453-21611-00-00)

Unavailable

9

SCREW, PAN HEAD(6E5)

97880-06018-00

$3.94

10

WASHER, SPECIAL SHAPE

90209-06087-00

Unavailable

11

DAMPER 2

(322-21639-00-00)

Unavailable

12

DAMPER, FENDER

322-21541-00-00

$6.28

13

WASHER, SPRING

92995-06100-00

$2.95

14

NUT (J17)

95380-06800-00

Unavailable

15

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

16

WASHER, SPRING

92995-06100-00

$2.95

17

WASHER, PLATE

90201-06380-00

$0.54

18

STRIPE, REAR FENDER

(402-21619-00-00)

Unavailable
