1974 Yamaha MX100 (MX100A) Intake Diagram

← All diagrams

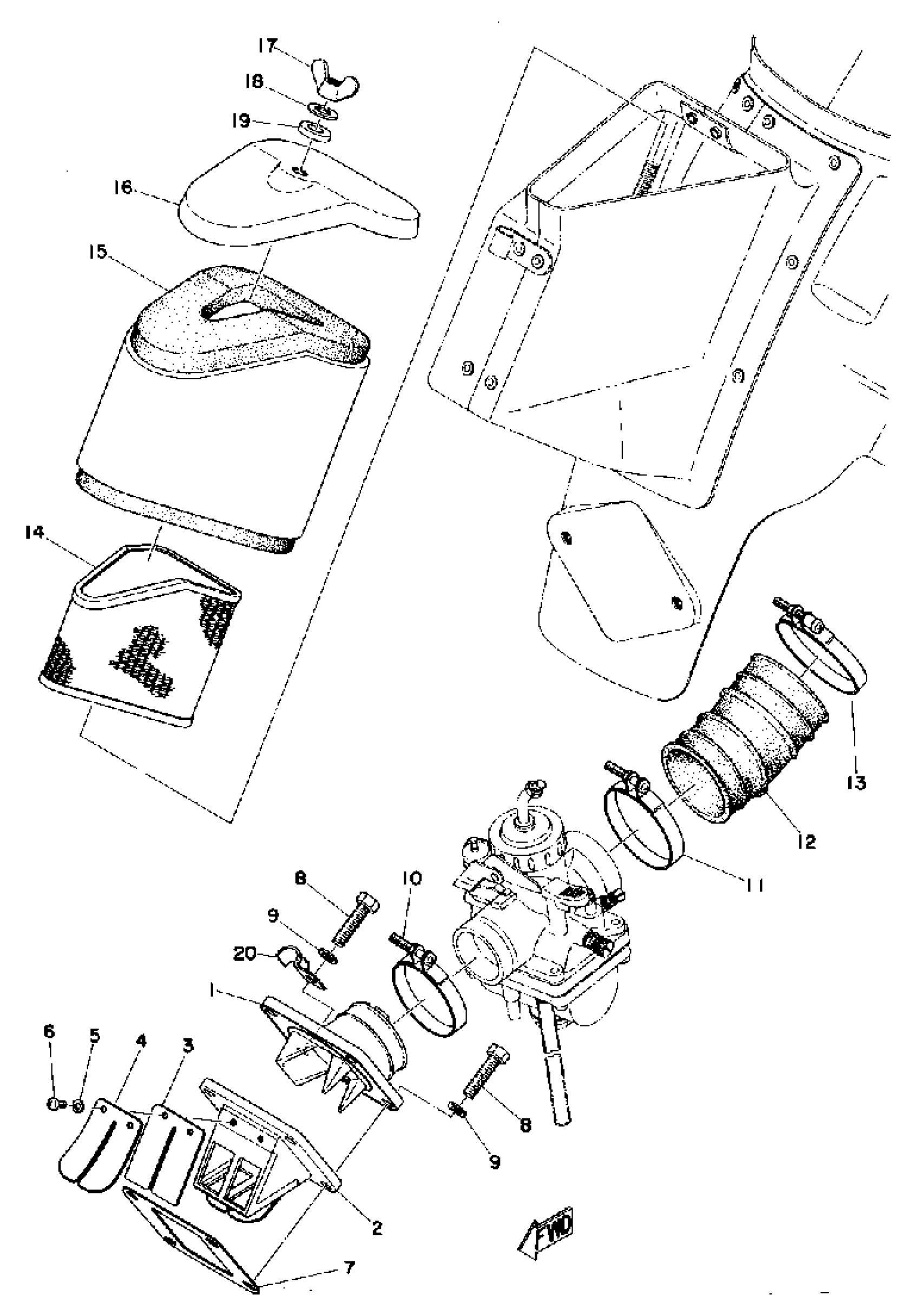

Find the part on the Intake diagram for your 1974 Yamaha MX100 (MX100A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha MX100 (MX100A) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR

401-13565-01-00

1
Out of stock

2

REED VALVE ASSY

345-13610-20-00

1

$218.63

In stock

3

. REED, VALVE (401-13613-00)

2R9-13613-00-00

1
Out of stock

4

. STOPPER, REED VALVE

345-13616-70-00

1
Out of stock

5

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

6

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

7

GASKET, VALVE SEAT

87A-13621-00-00

1

$7.97

In stock

8

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

CLAMP, HOSE (5H0)

90460-43179-00

1

$16.69

In stock

11

CLAMP HOSE 304144550000

90460-51059-00

1

$14.64

In stock

12

JOINT, AIR CLNR 1

401-14453-00-00

1
Out of stock

13

BAND

90460-54062-00

1
Out of stock

14

GUIDE, ELEMENT

(401-14458-00-00)

1
Out of stock

15

ELEMENT, AIR CLNR

401-14451-00-00

1
Out of stock

16

CAP, CLEANER CASE 1

(401-14412-00-00)

1
Out of stock

17

NUT, WING (646)

90175-06008-00

—

$1.88

In stock

18

WASHER, PLATE 1412342700

90202-06008-00

—

$3.91

In stock

19

WASHER, PLATE

90201-06061-00

1
Out of stock

20

CLAMP 363154850100

90462-05005-00

—

$6.92

In stock
