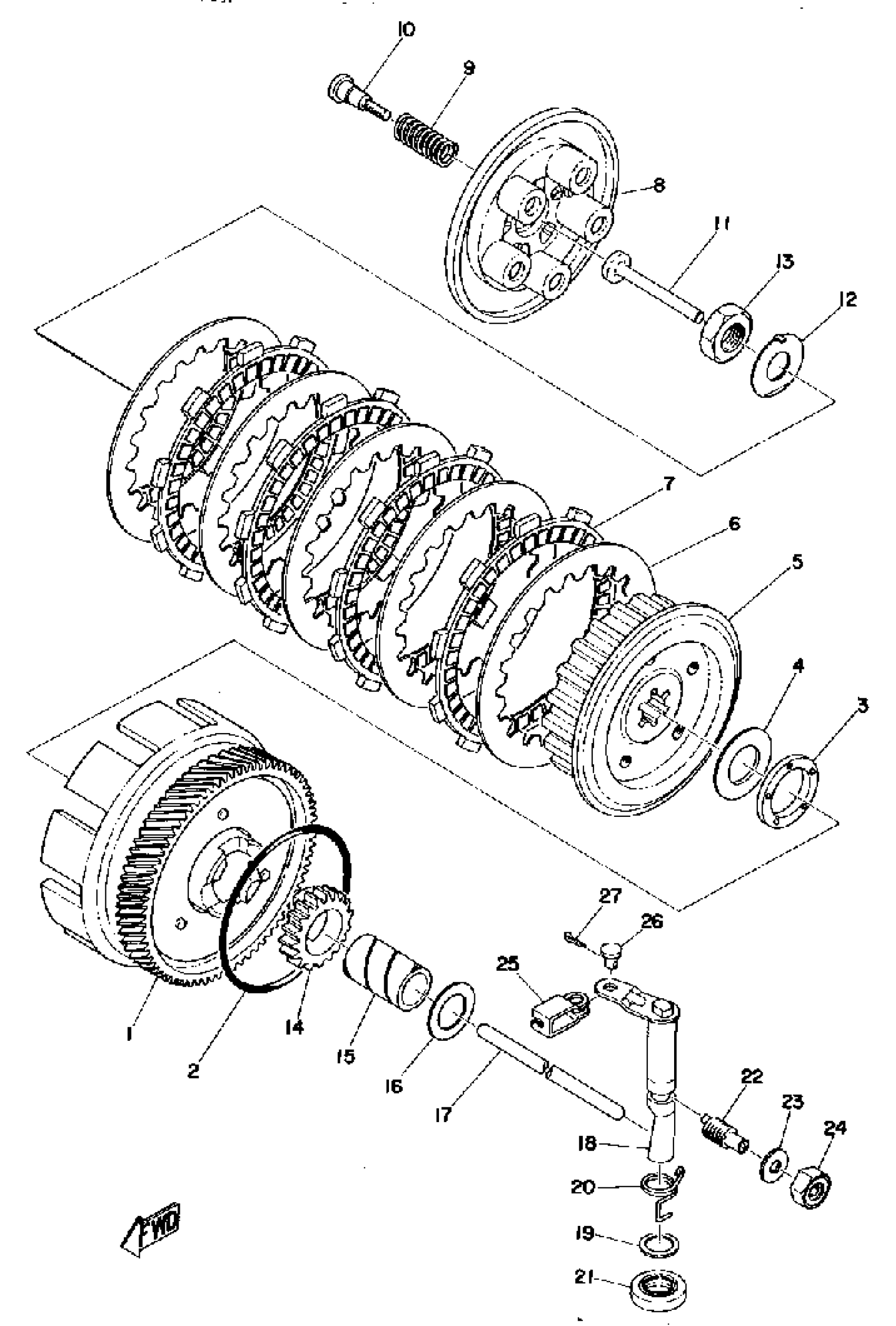

Find the part on the Clutch diagram for your 1974 Yamaha MX100 (MX100A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha MX100 (MX100A) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRI DRVN GEAR

(403-16150-00-00)

1
Out of stock

1

CLUTCH ASSEMBLY

(403-16301-01-00)

1
Out of stock

2

RING, FRICTION

132-16369-00-00

1

$8.78

In stock

3

. BEARING, FLAT #41

93341-22302-00

1
Out of stock

4

PLATE, THRUST 1

(276-16154-00-00)

1
Out of stock

5

. BOSS, CLUTCH

132-16371-02-00

1
Out of stock

6

PLATE, CLUTCH 1

336-16324-10-00

1

$17.51

In stock

7

PLATE,FRICTION

401-16321-09-00

1
Out of stock

8

PLATE, PRESSURE

132-16351-00-00

1

$50.51

In stock

9

1

$6.17

In stock

10

SCREW, SPECL SHAPE

(90149-05147-00)

1
Out of stock

11

ROD,PUSH (1)

137-16356-00-00

1

$28.05

In stock

12

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

—
Out of stock

13

NUT, HEXAGON 1371637700

90170-12060-00

1

$8.29

In stock

14

GEAR, KICK PINION

(254-15631-00-00)

1
Out of stock

15

SPACER (517)

90560-17146-00

—

$21.02

In stock

16

PLATE, THRUST

122-16164-00-00

—

$7.08

In stock

17

ROD, PUSH 2

(403-16357-00-00)

1
Out of stock

18

AXLE, PUSH LEVER

401-16382-02-00

1
Out of stock

19

WASHER PLATE 150251530000

90201-14217-00

—
Out of stock

20

SPRING, TORSION

90508-14132-00

1
Out of stock

21

OIL SEAL (14X25X5-2H7)

93104-14059-00

—
Out of stock

22

SCREW, ADJUSTING

364-16343-00-00

—
Out of stock

23

GASKET (3JD1)

90430-12207-00

—

$6.77

In stock

24

NUT, CLUTCH ADJUSTING

583-16344-00-00

—
Out of stock

25

JOINT

214-16389-00-00

—
Out of stock

26

PIN W/HOLE 214163790000

90240-06005-00

—

$10.66

In stock

27

. PIN, COTTER

91401-10015-00

1
Out of stock
