1974 Yamaha MX100 (MX100A) Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1974 Yamaha MX100 (MX100A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

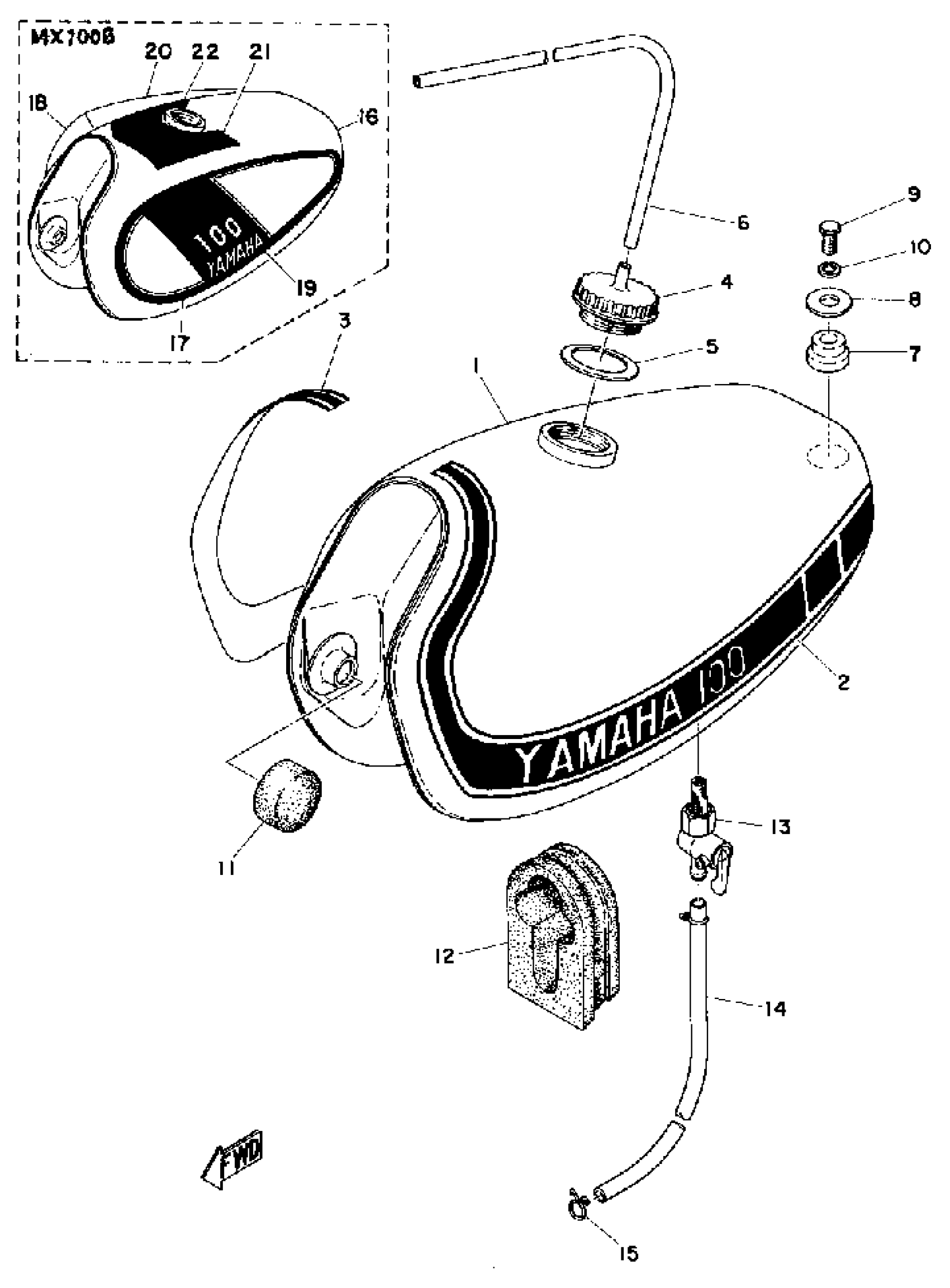

1974 Yamaha MX100 (MX100A) Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. GASKET

322-24532-00-00

1
Out of stock

1

FUEL TANK

(401-24110-00-04)

1
Out of stock

2

GRAPHIC, FUEL TNK 1

(427-24244-00-00)

1
Out of stock

3

GRAPHIC, FUEL TNK 2

(427-24245-00-00)

1
Out of stock

4

BODY, CAP

322-24611-02-00

1

$48.92

In stock

5

GASKET (322-24612-00)

90430-37052-00

1
Out of stock

6

HOSE (L1500)

90445-090F6-00

1

$26.35

In stock

7

GROMMET

(90480-25189-00)

1
Out of stock

8

WASHER

90209-08008-00

1
Out of stock

9

BOLT, HEXAGON

97013-08016-00

1

$1.32

In stock

10

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

11

DAMPER, LOCATING 1

3TB-24181-00-00

1

$12.29

In stock

12

DAMPER, LOCATING 3

(401-24183-00-00)

1
Out of stock

13

FUEL COCK ASSY

322-24500-02-00

1

$79.98

In stock

14

HOSE

90445-11149-00

1
Out of stock

15

CLIP

90467-100A1-00

—
Out of stock

16

FUEL TANK

(401-24110-00-07)

1
Out of stock

17

GRAPHIC, FUEL TNK 1

(427-24244-10-00)

1
Out of stock

18

GRAPHIC, FUEL TNK 2

(427-24245-10-00)

1
Out of stock

19

GRAPHIC, FUEL TNK 3

(427-24246-11-00)

1
Out of stock

20

GRAPHIC, FUEL TNK 4

(427-24247-11-00)

1
Out of stock

21

GRAPHIC, FUEL TNK 5

(427-24248-10-00)

1
Out of stock

22

GRAPHIC, FUEL TNK 6

(427-24249-10-00)

1
Out of stock

23

GRAPHIC SET

(427-24250-10-00)

1
Out of stock

24

STRAINER 1

(427-24251-10-00)

1
Out of stock
