1974 Yamaha MX100 (MX100A) Shifter 2 Diagram

← All diagrams

Find the part on the Shifter 2 diagram for your 1974 Yamaha MX100 (MX100A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

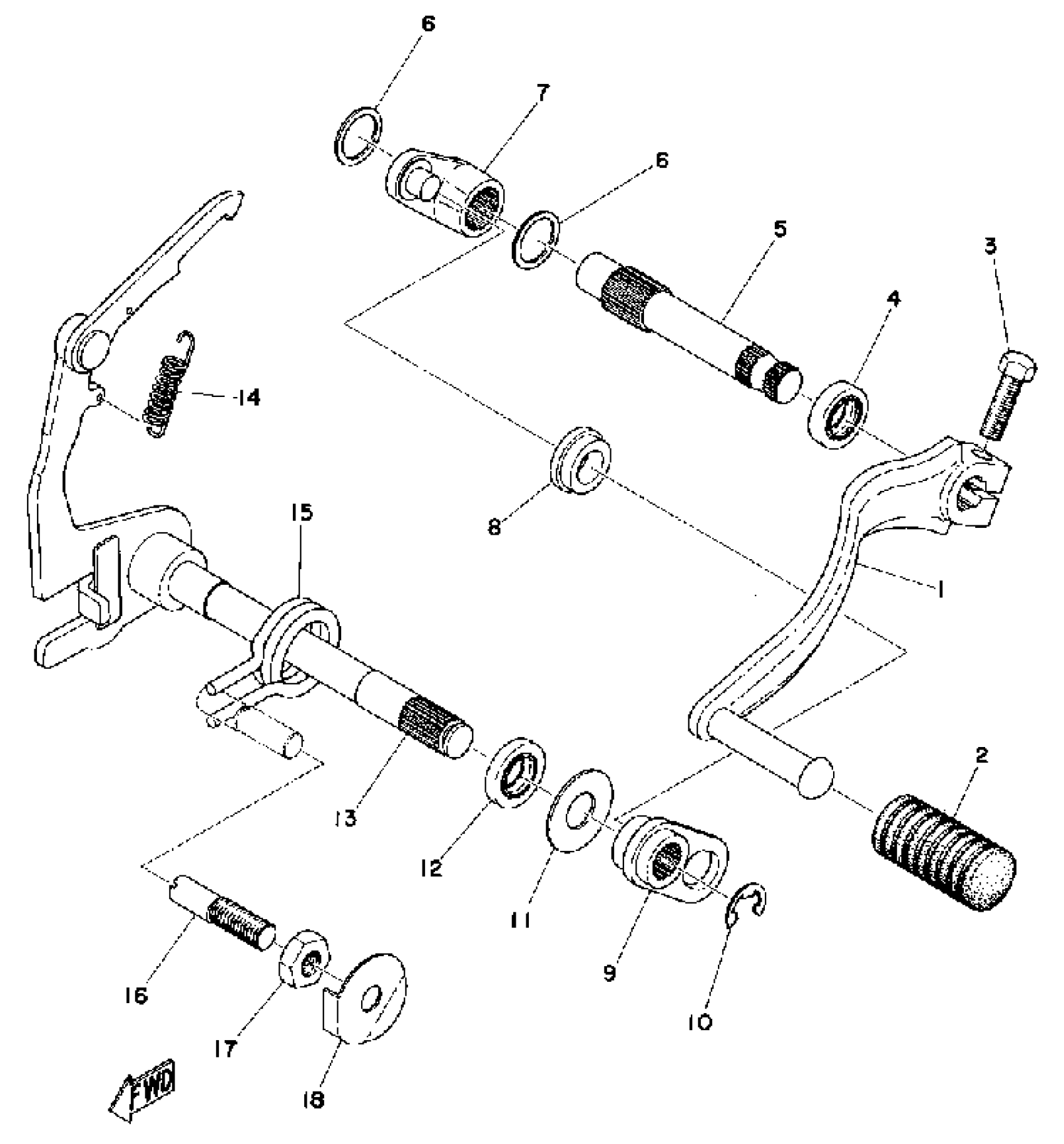

1974 Yamaha MX100 (MX100A) Shifter 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, SHIFT

1X0-18111-00-00

1
Out of stock

1

SHIFT SHAFT ASY 2

401-18102-02-00

1
Out of stock

2

COVER, CHANGE PEDAL

132-18113-01-00

1
Out of stock

3

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

4

OIL SEAL (12X19X5-401)

93109-12012-00

1

$8.92

In stock

5

SHAFT,SHIFT 2

401-18155-02-00

1
Out of stock

6

SHIM

401-18334-00-00

1

$4.92

In stock

7

LEVER, SHIFT 3

401-18151-00-00

1
Out of stock

8

ROLLER, CHANGE LEVER

401-18178-00-00

1

$17.98

In stock

9

LEVER, CHANGE 4

401-18152-01-00

—

$23.78

In stock

10

CIRCLIP(2R6)

99001-08600-00

1
Out of stock

11

WASHER, PLATE (353)

90201-12575-00

1
Out of stock

12

OIL SEAL

93101-12173-00

1
Out of stock

13

SHIFT SHAFT ASSEMBLY

558-18101-00-00

1
Out of stock

14

—

$6.68

In stock

15

SPRING TORSION 132181240000

90508-32207-00

—
Out of stock

16

SCREW, ADJUSTING (367)

90149-08094-00

—

$4.91

In stock

17

NUT (583)

90170-08193-00

—
Out of stock

18

WASHER LOCK 248181390000

90215-08014-00

—

$5.38

In stock
