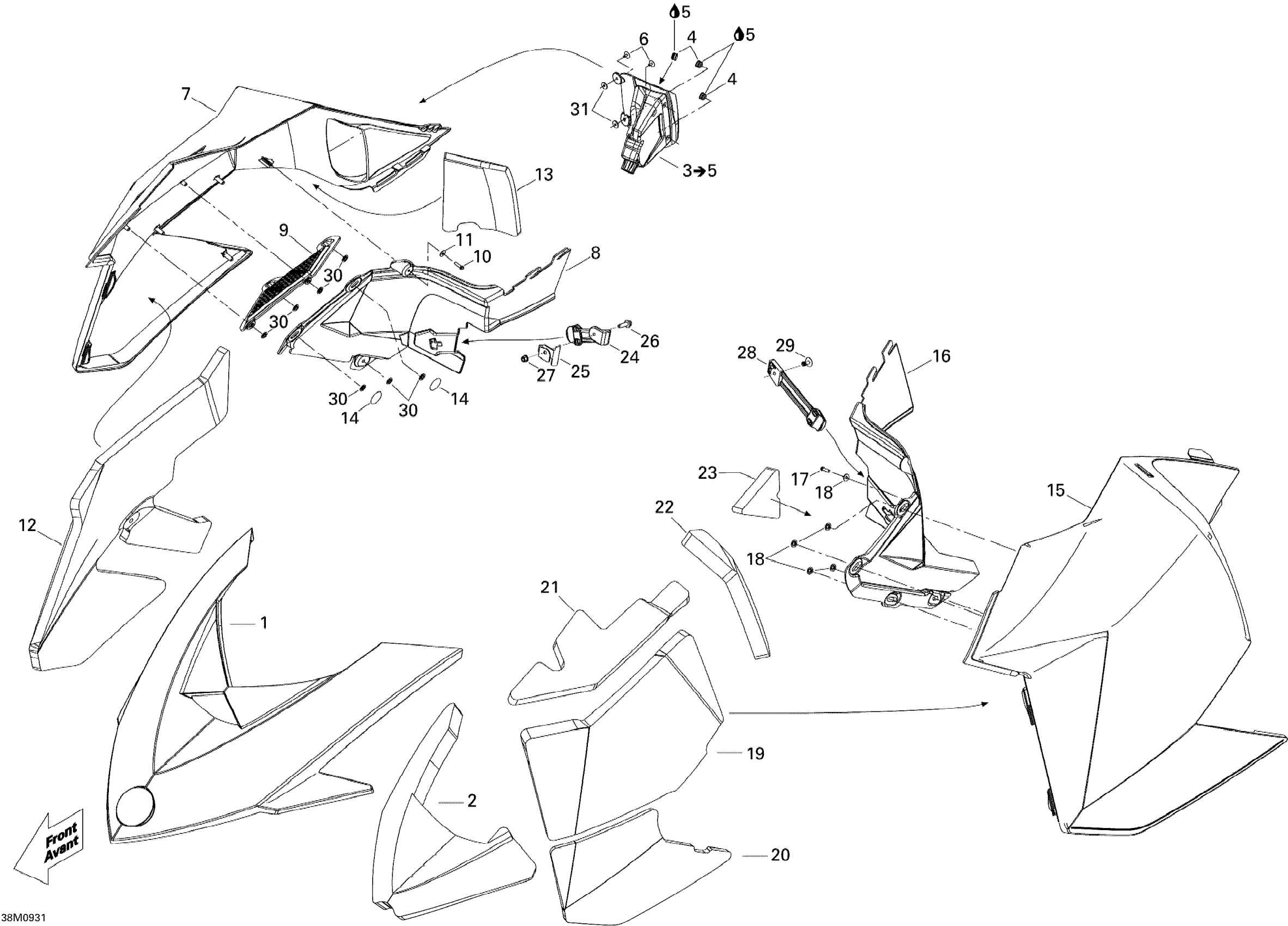

Ski-Doo MX Z X 600RS, 2009 Hood Diagram

#

Description
Price

1

Yellow Hood

517304529

$138.78

2

Hood Foam

517304913

$20.12

3

Black, RH Console | Includes 400 to 400b

517304322

$32.81

4

Black, Cap

275500241

$3.16

5

Loctite, Black Max, 3 ml

413408300

$23.85

6

Pop Rivet 5/32"

293150170

$2.93

7

Deep Black, RH Panel

517304029

$200.72

8

Deep Black RH Moulding Panel

517303671

$26.09

9

Grille

517303622

$28.33

10

Hex. Flange Screw K40 X 16

241141660

$1.43

11

Flat Washer 4 mm, Stainless

234042600

$1.06

12

RH Center Foam

517304883

$39.52

13

RH Panel Rear Foam

517304884

$14.90

14

Adhesive Patch

518325560

$4.21

15

Deep Black, LH Panel

517304030

$200.72

16

Deep Black, LH Moulding Panel

517303673

$26.09

17

Hex. Flange Screw K40 X 16

241141660

$1.43

18

Flat Washer 4 mm, Stainless

234042600

$1.06

19

LH Panel Center Foam

517304887

$25.34

20

LH Panel Lower Foam

517304888

$20.12

21

LH Panel Upper Foam

517304889

$17.88

22

LH Panel Rear Foam

517304890

$13.54

23

Foam

517304891

$17.88

24

RH Panel Latch

517303612

$9.21

25

Latch Support

517304221

$6.30

26

Hex.Flange Screw M5 X 20

207652044

$1.79

27

Hex. Flange Elastic Nut M5

233251414

$1.91

28

LH Panel Latch

517303808

$9.61

29

Pop Rivet 3/16”

293150108

$1.19

30

Push Nut

732610072

$1.97

31

Flat Washer

391303100

Unavailable
