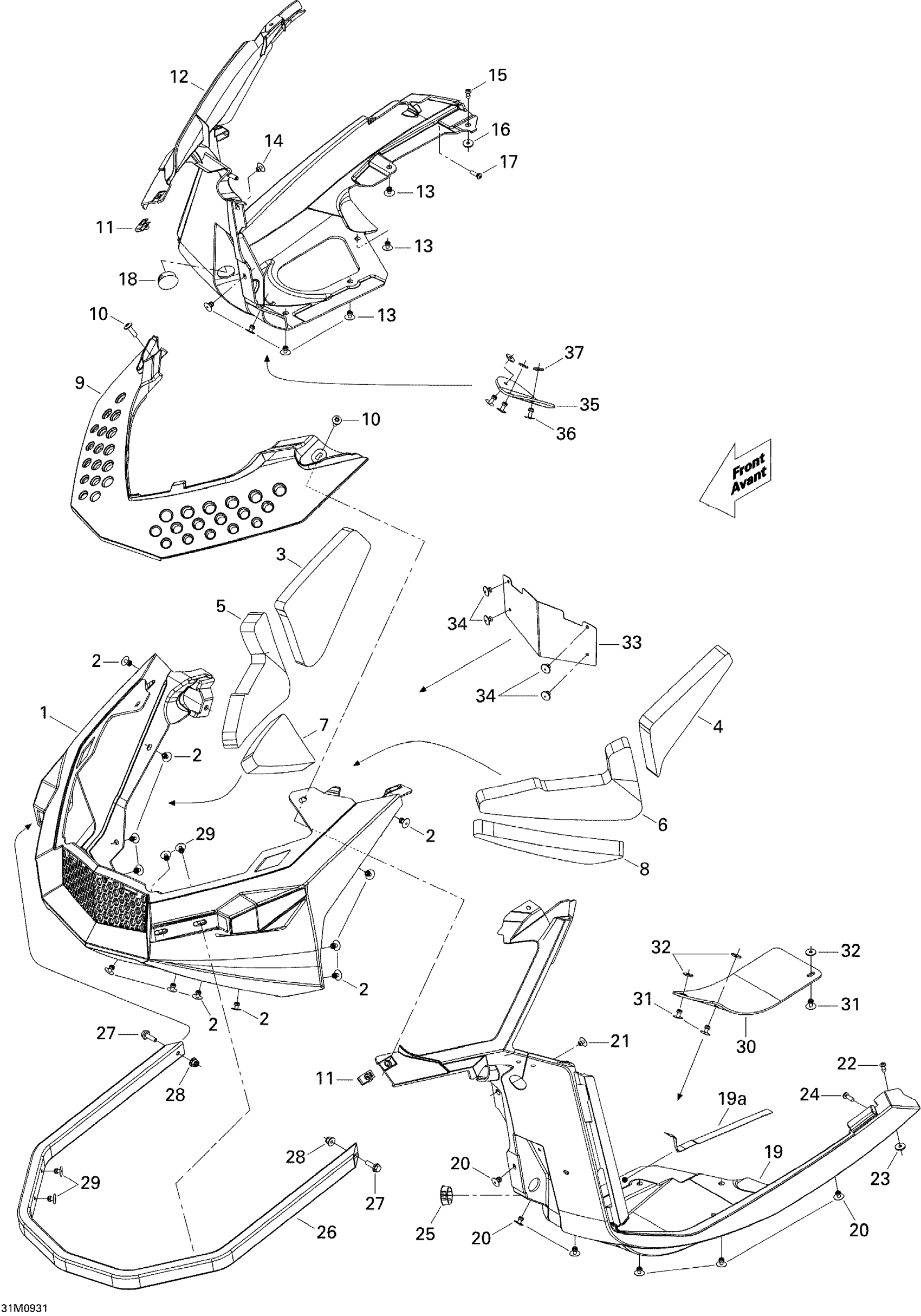

Ski-Doo MX Z X 600RS, 2009 Bottom Pan Diagram

#

Description
Price

1

Front Bottom Pan, Yellow 2000

502007052

$106.12

2

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

3

RH Foam Upper

502007210

$13.85

4

LH Foam Upper

502007211

$15.03

5

RH Middle Foam

502007212

$18.43

6

LH Middle Foam

502007213

$18.43

7

RH Lower Foam

502007214

$13.85

8

LH Lower Foam

502007215

$13.85

9

Deep Black Bottom Pan Cap

502007068

$65.35

10

Torx Screw M6 X 20

250000722

$1.34

11

Panel Nut M6 X 1.0

250100198

$1.73

12

Black, RH Bottom Pan

502006831

$72.28

13

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

14

Pop Rivet 3/16"

293150103

$0.54

15

Pop Rivet 3/16"

390402300

$0.75

16

Washer

517124300

$0.16

17

Torx Screw K50 X 16

250000720

$1.39

18

Black, Nylon Cap

414916600

$4.32

19

Deep Black LH Bottom Pan

502006832

$52.28

19a

Gasket, Neoprene 2000Mm Long

219704476

$12.64

20

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

21

Pop Rivet 3/16"

293150103

$0.54

22

Pop Rivet 3/16"

390402300

$0.75

23

Washer

517124300

$0.16

24

Torx Screw K50 X 16

250000720

$1.39

25

Black, Nylon Cap

414916600

$4.32

26

Black Front Bumper

502007116

$76.89

27

Hex. Flange Screw M6 X 20

207662044

$1.66

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

29

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

30

GUARD PLATE - Call your local BRP dealership

502006888

Unavailable

31

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

32

Washer

517124300

$0.16

33

PAN BOTTOM PLATE - Call your local BRP dealership

502006933

Unavailable

34

Pop Rivet 3/16"

293150103

$0.54

35

Snow Deflector

502006935

$50.74

36

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

37

Washer

517124300

$0.16
