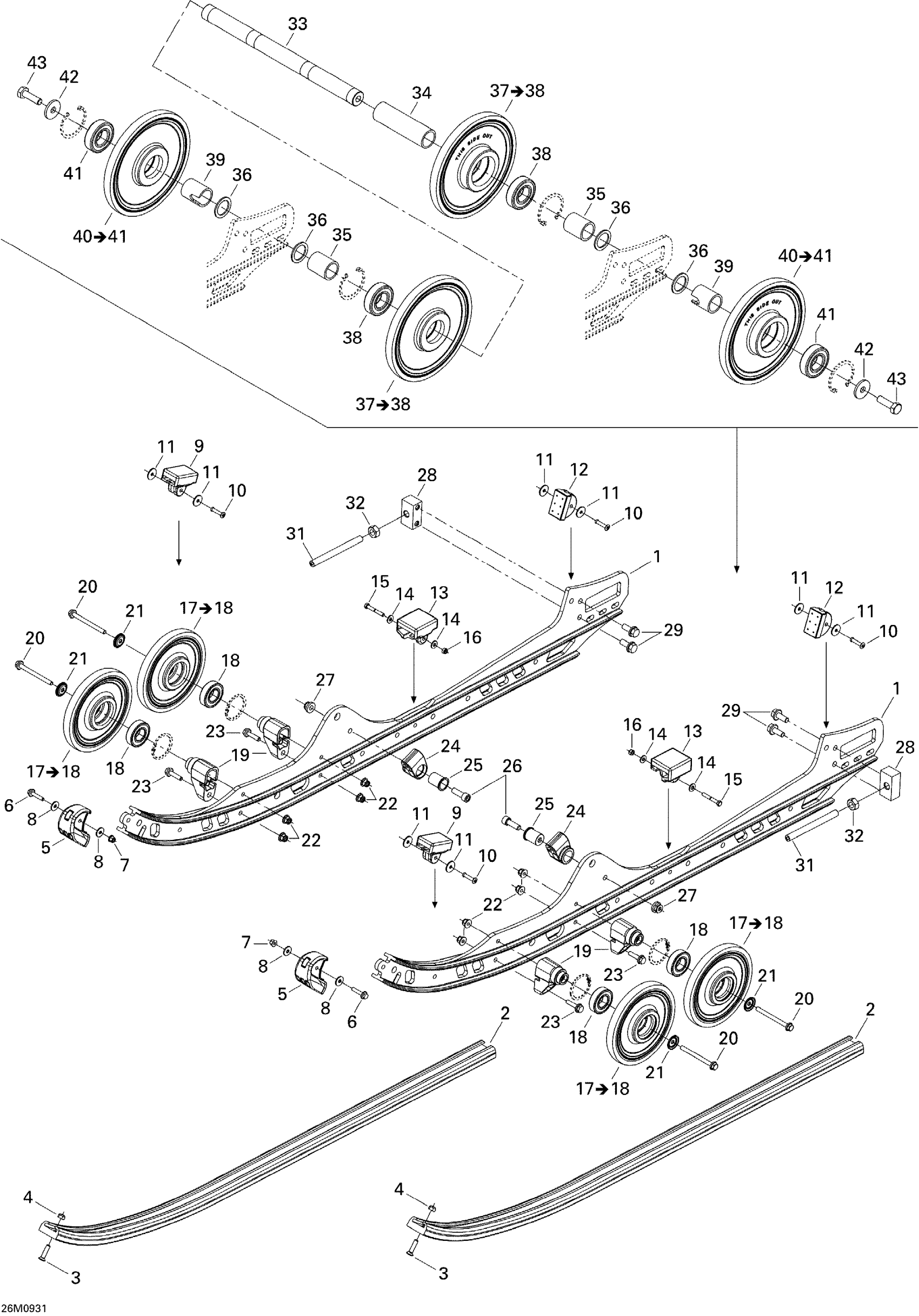

Ski-Doo MX Z X 600RS, 2009 08- Rear Suspension Diagram

RUNNER - Call your local BRP dealership

503192066

Unavailable

Slider Shoe

503190573

$29.49

Phillips Screw M6 X 25

208562531

$2.11

Elastic Stop Nut M6

232561414

$0.55

Runner Protector

503191137

$11.99

Hex. Flange Screw M5 X 25

207652544

$0.50

Hex. Flange Elastic Nut M5

233251414

$1.04

Washer | DS 650 X

391301600

$0.48

Rubber Stopper

503190576

$12.99

Pop Rivet 3/16"

293150142

$2.29

Washer

503191273

$1.35

Rubber Stopper

503191291

$19.99

RUBBER STOPPER - Call your local BRP dealership

503192099

Unavailable

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

Hex. Screw M5 X 35

207053544

$1.15

Elastic Stop Nut M5

232551414

$0.87

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

$37.99

Ball Bearing | Package-STD

503190396

$14.30

Casted Support

503193894

$16.49

Hex. Flange Screw M6 X 70

207667044

$0.85

Wheel Cup M6

503191820

$4.99

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Screw M6 X 25

207662544

$0.64

Spring Support Kit

861805547

$10.49

Spring Support Kit

861805547

$10.49

Socket Head Screw M8 X 25

205082544

$1.15

Hex. Flange Elastic Nut M8

233281414

$1.47

TENSIONER - Call your local BRP dealership

503191984

Unavailable

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

TENSIONER SPACER - Call your local BRP dealership

503168500

Unavailable

Adjustment Screw

504152602

$12.49

Hex. Nut M10 X 1.5

232006414

$1.37

Rear Axle

503167900

$139.99

Center Spacer

503156000

$12.01

Inner Spacer

503182900

$12.58

Washer

503180400

$3.49

Wheel 180 | Includes 600 to 600a

503191491

$51.99

Ball Bearing

293350115

$12.11

Outer Spacer

503189809

$18.89

Wheel 180 | Includes 600 to 600a

503191491

$51.99

Ball Bearing

293350115

$12.11

Washer

503183300

$5.82

Hex. Screw With Nylon

250000019

$1.69
