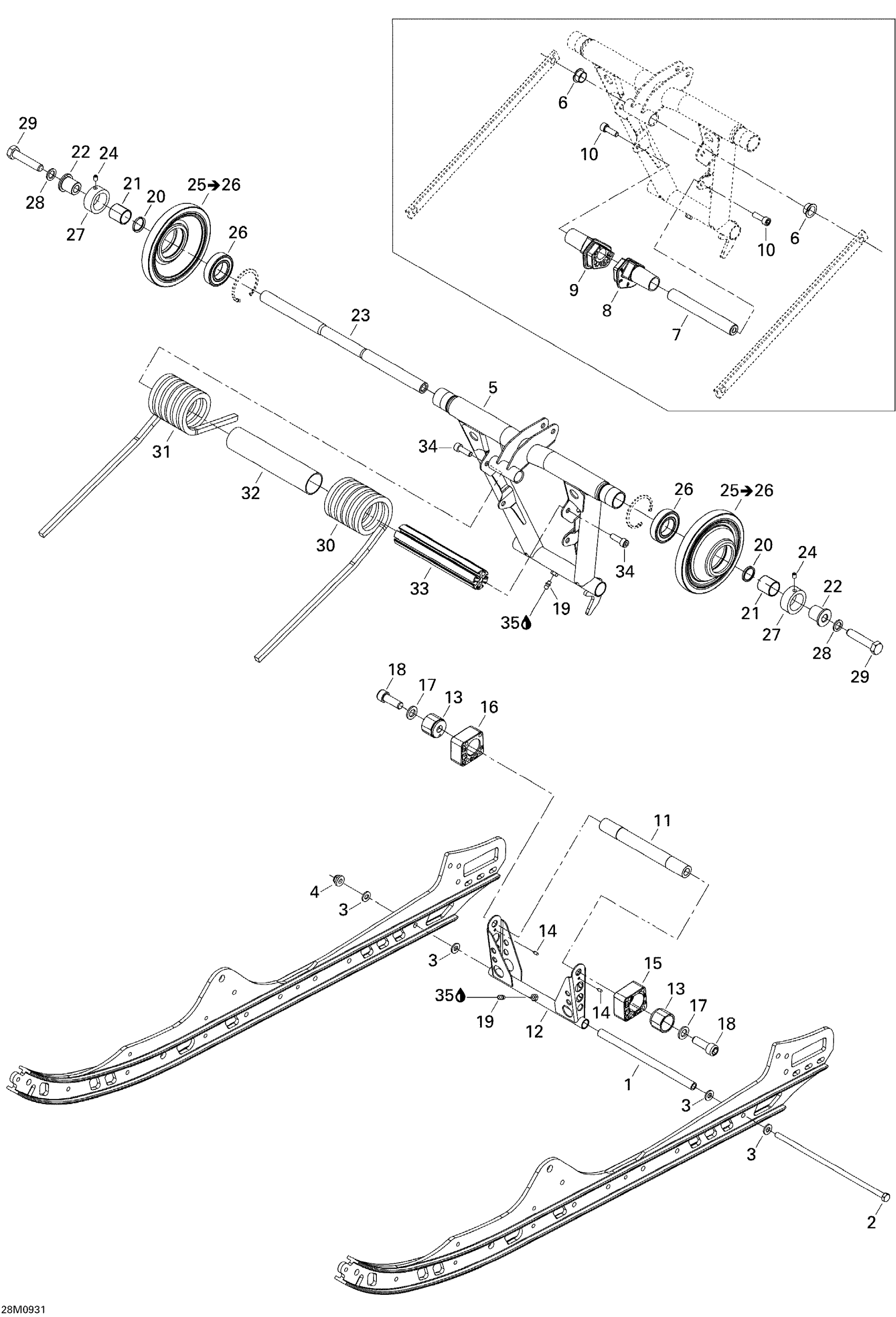

Ski-Doo MX Z X 600RS, 2009 08- Rear Arm Diagram

#

Description
Price

1

Pivot Arm Axle

503189156

$21.99

2

Bolt M8 X 248mm

503192440

$30.49

3

Washer

503189157

$3.28

4

Hex. Flange Elastic Nut M8

233281414

$1.47

5

REAR ARM - Call your local BRP dealership

503192087

Unavailable

6

Swivel Bushing

503191555

$7.83

7

Spring Cam Axe

503191178

$28.99

8

LH Spring Cam

503191191

$15.79

9

RH Spring Cam

503191190

$15.29

10

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.90

11

Lower Shaft

503192095

$45.99

12

Pivot Arm

503191302

$124.99

13

BLOCK GUIDE - Call your local BRP dealership

503192041

Unavailable

14

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

15

LH Block, 4 Positions

503191563

Unavailable

16

RH Block, 4 Positions

503191562

Unavailable

17

Washer | 7415/7416. 7417/7418.

503189148

$2.85

18

Socket Head Screw Scotch Grip Din.912

205523587

$2.11

19

Grease Fitting

408200700

$3.49

22

Bushing

503191775

$17.39

23

Upper Shaft

503191776

$45.99

24

Socket Set Screw M6 X 8

206260844

$1.48

25

Black Wheel Ass'y, 144 mm | Includes 3070 to 3070b

503191777

$37.99

26

Ball Bearing

503191778

$12.49

27

Retaining Ring

503191782

$17.99

28

Washer

503189276

$3.28

29

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

30

LH Spring, Square

503191615

$62.49

31

RH Spring, Square

503191614

$62.49

32

Plastic Bushing

503191345

$7.83

33

Spring Axle

503191344

$36.99

34

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.90

35

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
