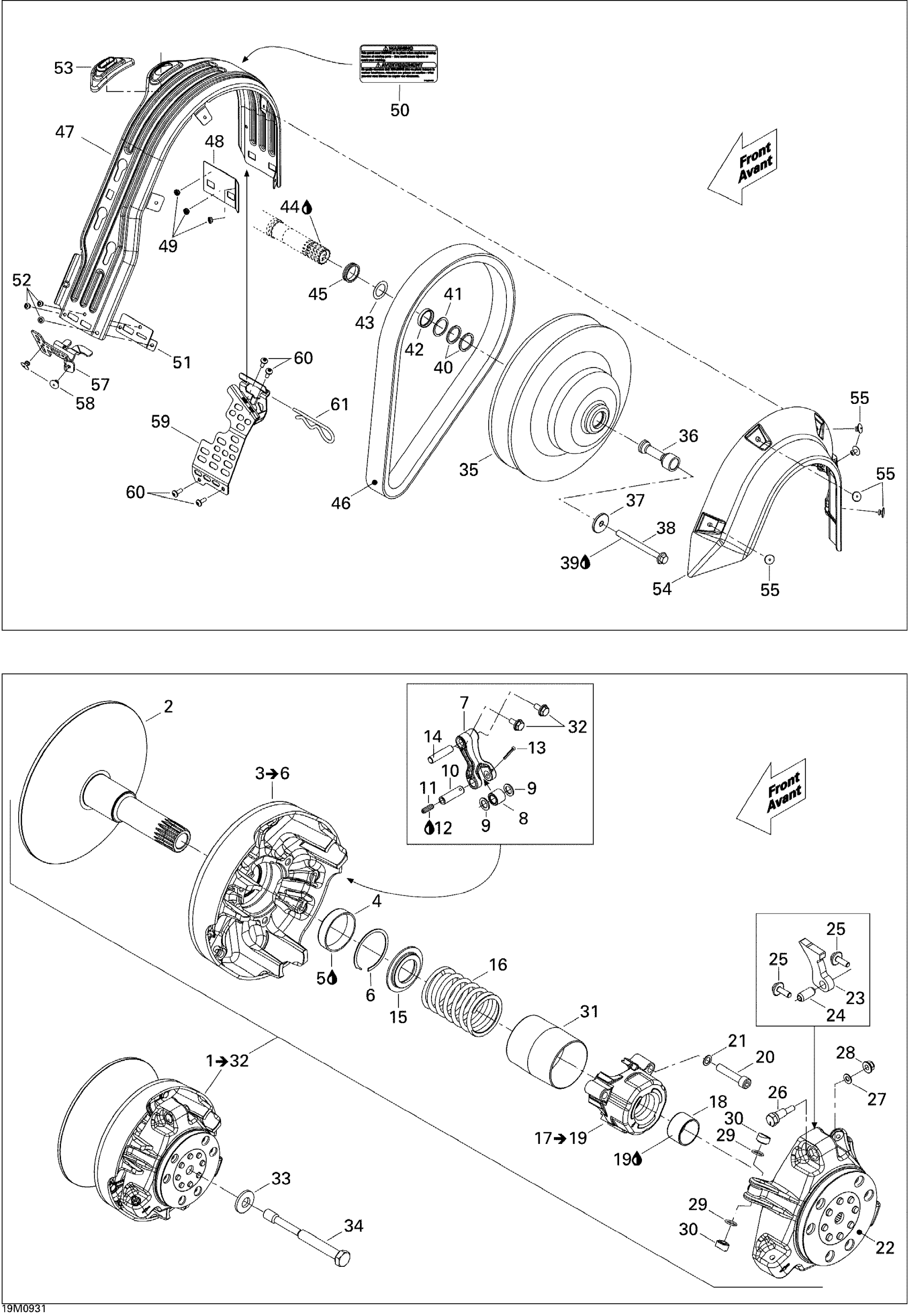

Ski-Doo MX Z X 600RS, 2009 05- Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

FIXED FLANGE ASS'Y - Call your local BRP dealership

417223012

Unavailable

3

Sliding Flange Ass'y

417222971

$579.99

4

Bushing

417222758

$22.49

5

Adhesive LOCTITE 680 - Call your local BRP dealership This part replaces 293800118.

219702967

Unavailable

6

Circlip

293370037

$3.19

7

Lever | Includes 10f to 10g

417222671

$49.99

8

Roller

417222947

$21.99

9

Stopper Washer

417004302

$15.90

10

Threaded Pin, M6 | High Altitude

417222595

$23.49

11

SOCKET SET SCREW M6 X 12 - Call your local BRP dealership

250000407

Unavailable

12

Loctite 243, 10 ml

293800060

$21.49

13

Cotter Pin

250400060

$2.00

14

Lever Axle

417223164

$4.49

15

Spring Seat

417222312

$9.59

16

SPRING, GREY/GREY - Call your local BRP dealership

417222958

Unavailable

17

Spring Cover Ass'y | Includes 10r to 10t

417007500

$45.99

18

Bushing

417009204

$17.49

19

Loctite 609, 10 ml

413703100

$26.99

20

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

21

Lock Washer 8 mm

250200009

$2.11

22

Governor Cup Ass'y

417222622

Unavailable

23

Ramp 438 | Package X-T3, High Altitude

417223049

$36.99

24

Spring Pin M10 X 22

250400050

$2.99

25

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.09

26

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

27

Washer

417005600

$4.09

28

Hex. Flange Nut M6

233061414

$1.68

29

O-Ring

732401030

$0.98

30

Slider Shoe This part replaces 420460045.

417223021

$5.90

31

Guard

417009205

$21.99

32

Serrated Hex. Flange Bolt M6

250000416

$4.23

33

Spring Washer 14 mm

250200006

$6.99

34

Drive Pulley Bolt

417120000

$65.49

35

DRIVEN PULLEY ASS'Y - Call your local BRP dealership

417127162

Unavailable

36

BUSHING - Call your local BRP dealership

417127149

Unavailable

37

Washer

503183100

$3.17

38

Hex. Flange Screw M8 X 90

207689044

$8.11

39

Loctite 243, 10 ml

293800060

$21.49

40

Spacer

417300252

$5.49

41

Spacer

417300265

$2.29

42

Spacer

504149100

$12.99

43

Shim

504112000

$8.59

44

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

45

SPACER - Call your local BRP dealership

417126302

Unavailable

46

Drive Belt

417300534

$219.99

47

Belt Guard

417300357

$91.99

48

PLATE - Call your local BRP dealership

417300372

Unavailable

49

Henrob Rivet

293150091

$0.77

50

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

51

Reinforcement

417300380

$7.29

52

Avex Rivet

390909200

$0.30

53

Guide

417300381

$11.99

54

Side Protector

417300356

$14.76

55

Pop Rivet 3/16"

293150103

$0.55

57

FRONT BELT GUARD BRACKET - Call your local BRP dealership

417300360

$14.49

58

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

59

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$31.99

60

Torx Screw M5 X 14

250000742

$1.47

61

Hair Pin

114045200

$11.11
