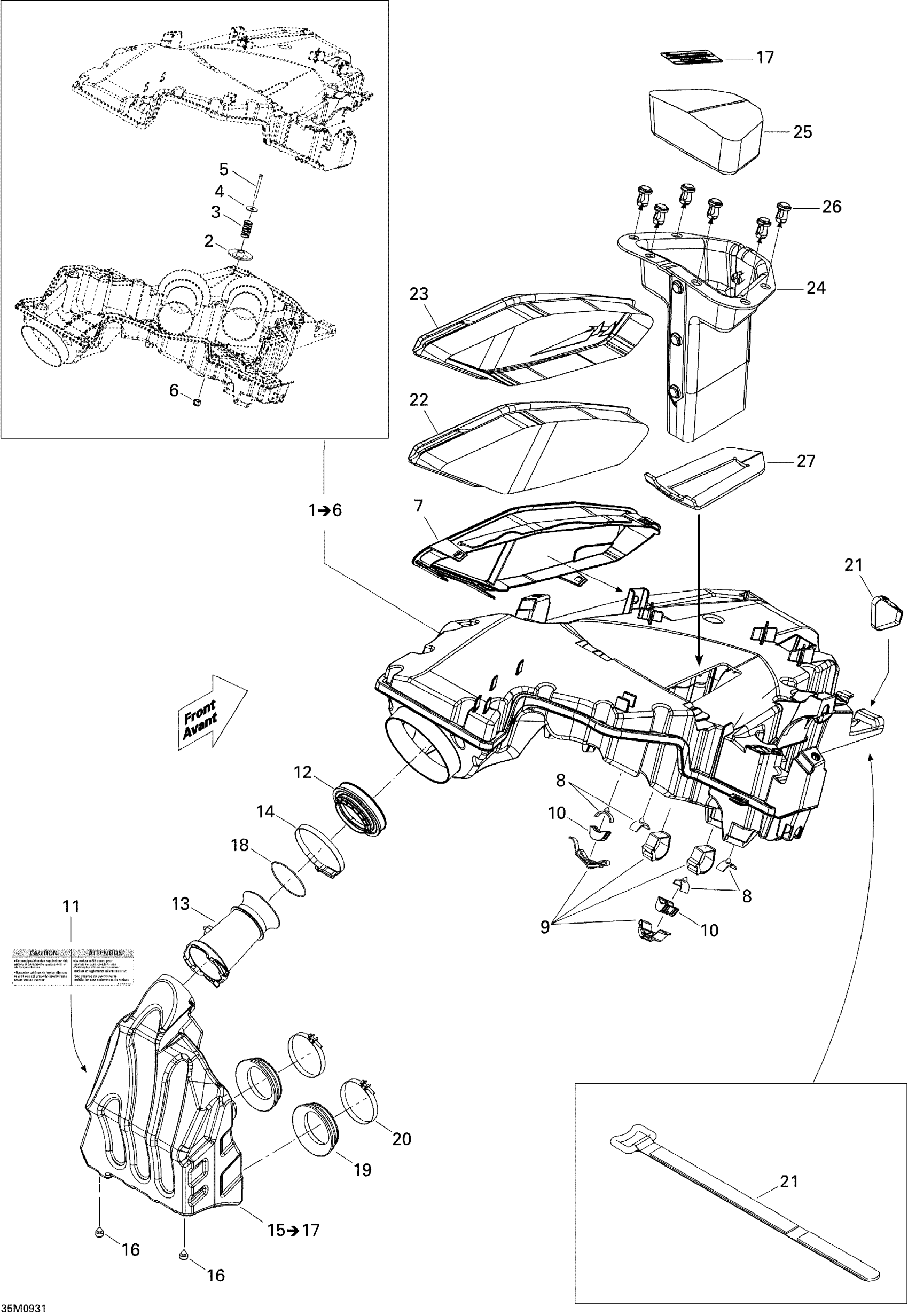

Ski-Doo MX Z X 600RS, 2009 02- Air Intake System Diagram

#

Description
Price

1

SECONDARY CHAMBER - Call your local BRP dealership | Includes 1 to 7

508000623

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Spring

508000576

$7.79

4

Flat Washer

224060201

$1.26

5

Socket Head Screw M4 X 40 | X

205444086

$1.69

6

Elastic Stop Nut M4

232541414

$0.58

7

Air Filter

508000626

$39.99

8

Stopper

508000537

$7.79

9

Velcro Strip

508000820

$8.59

10

Bumper

508000572

$7.51

11

WARNING DECAL, HOT PARTS - Call your local BRP dealership

516002965

Unavailable

12

Boot

508000567

$18.49

13

Flute

508000662

$15.99

14

Norma Clamp

514052924

$14.22

15

PRIMARY CHAMBER ASS'Y - Call your local BRP dealership

508000535

Unavailable

16

Rubber Bumper

293830005

$8.09

17

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership

516003371

Unavailable

18

O'RING - Call your local BRP dealership

293300140

Unavailable

19

INTAKE ADAPTER - Call your local BRP dealership

508000721

Unavailable

20

Gemi Clamp

508000346

$10.33

21

Velcro Strip

508000599

$13.99

22

Foam Filter

415129377

$38.99

23

Filter Cover

415129376

$75.99

24

AIR DUCT ASS'Y - Call your local BRP dealership

508000633

Unavailable

25

AIR INTAKE FOAM - Call your local BRP dealership

508000634

Unavailable

26

Tuflok Plastic Rivet

293150230

$1.47

27

FOAM - Call your local BRP dealership

508000637

Unavailable
