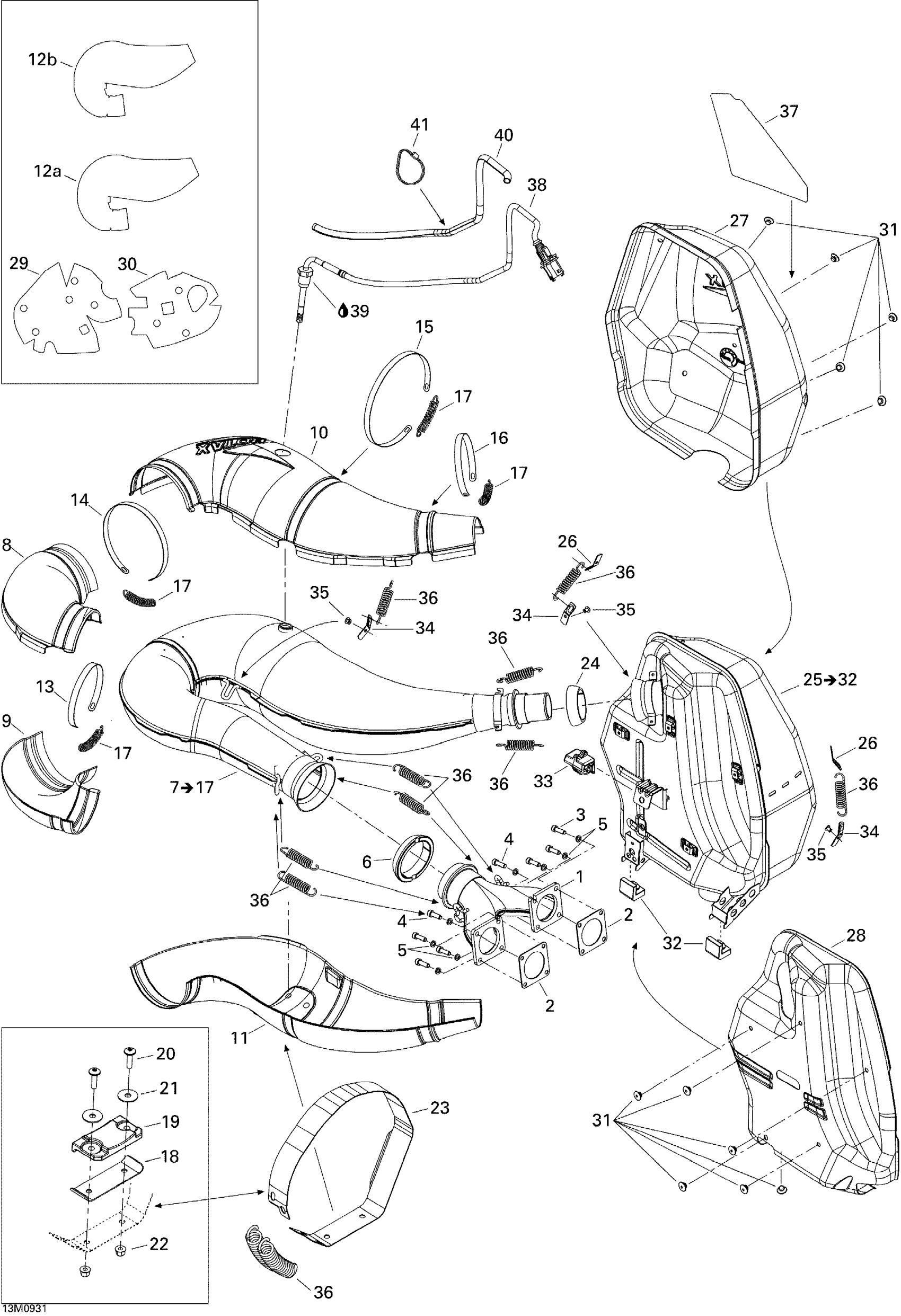

Ski-Doo MX Z X 600RS, 2009 01- Exhaust System Diagram

#

Description
Price

1

Exhaust Manifold This part replaces 420673420.

420673421

$289.99

2

Gasket

420850552

$8.85

3

Socket Head Screw Scotch Grip M6 X 20

250001077

$2.79

4

HEX. SCREW M6 X 20, SCOTCH GRIP - Call your local BRP dealership

250000337

Unavailable

5

Washer

514053953

$0.77

6

Exhaust Gasket

514053487

$26.49

7

PIPE_TUNED ASSY - Call your local BRP dealership | Includes 7 to 17

514054868

Unavailable

8

Front Upper Half Enveloppe

514054992

$40.99

9

Front Lower Half Enveloppe

514054993

$40.99

10

REAR UPPER HALF ENVELOPPE - Call your local BRP dealership

514055067

Unavailable

11

Rear Lower Half Enveloppe | Includes 200d to 200e

514054990

$56.99

12a

Insulating Wool

514054487

$20.99

12b

INSULATING WOOL - Call your local BRP dealership

514054553

Unavailable

13

Retaining Strap

514054408

$13.10

14

Retaining Strap

514054409

$13.10

15

Retaining Strap

514054410

$13.10

16

Retaining Strap

514053499

$11.47

17

Spring

514053643

$6.35

18

Reinforcement Plate

514054638

$23.99

19

Bumper

514054275

$16.34

20

Torx Screw M5 X 20

250000724

$1.69

21

Flat Washer

224060201

$1.26

22

Hex. Flange Elastic Nut M5

233251414

$1.04

23

RETAINING STRAP - Call your local BRP dealership

514054637

Unavailable

24

Exhaust Gasket

514053812

$25.99

25

Muffler Ass'y | Includes 25 to 32

514054515

Unavailable

26

Spring Bracket

514054155

Unavailable

27

RH Deflector

514054984

$58.99

28

LH DEFLECTOR - Call your local BRP dealership | 800R ETEC

514054202

Unavailable

29

RH INSULATING WOOL - Call your local BRP dealership

514054298

Unavailable

30

LH Insulating Wool

514054299

$20.99

31

Pop Rivet 3/16”

390910000

$0.57

32

Lower Stopper

514054274

$20.49

33

Upper Stopper

514054606

$19.99

34

Spring Bracket

514054522

$8.45

35

Pop Rivet 3/16"

390402200

$0.35

36

Spring

415107100

$6.35

37

Reflective Sheet

514054488

$14.99

38

Temperature Sensor

514054641

$219.99

39

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

40

Tubing 6 Mm 3000Mm Long

219704425

$13.75

41

Tie-Rap 180 mm

414115200

$0.11
