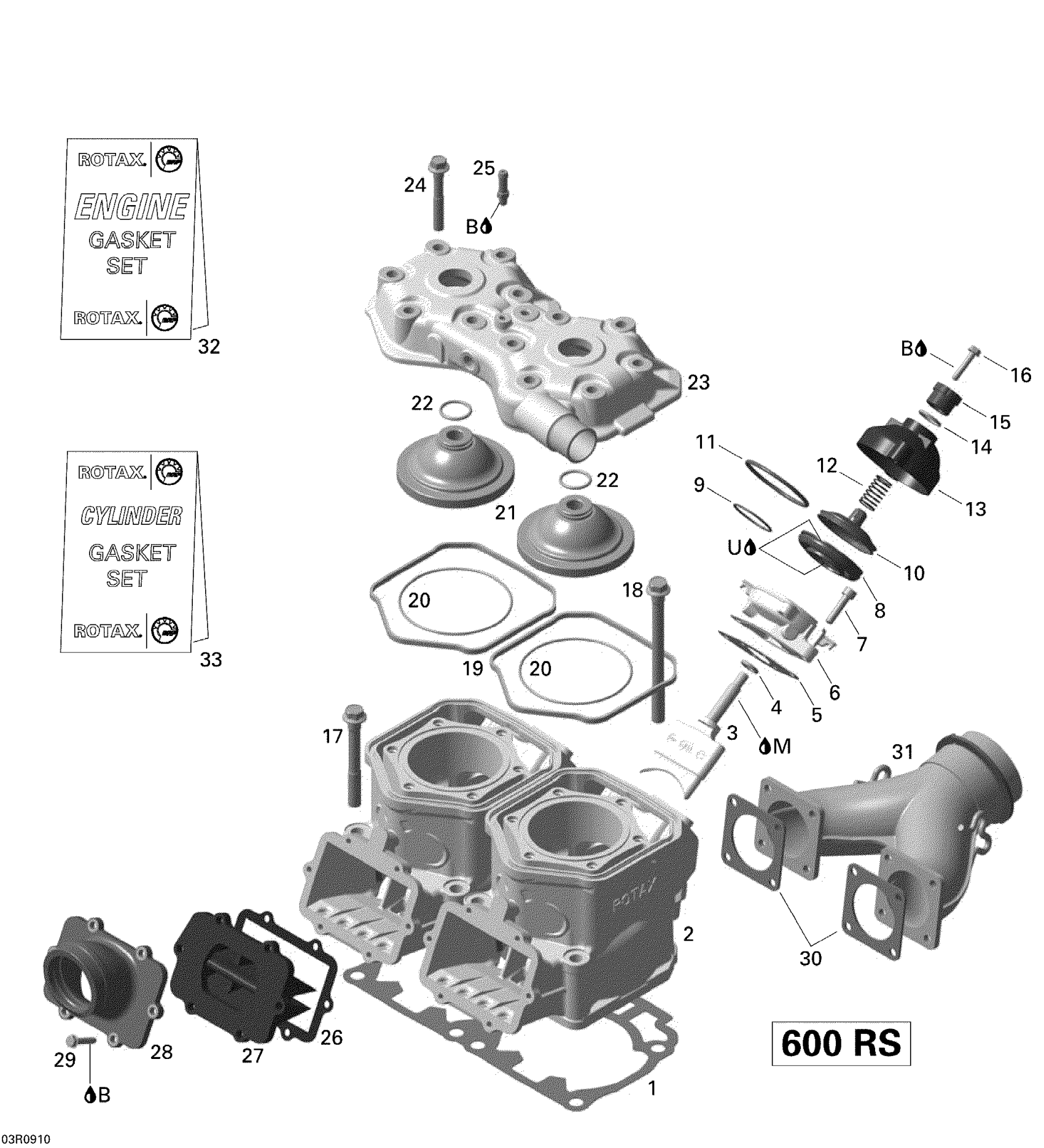

Ski-Doo MX Z X 600RS, 2009 01- Cylinder, Exhaust Manifold And Reed Valve Diagram

#

Description
Price

1

Gasket 0.6 mm

420431161

$23.49

1

Gasket 0.5 mm

420431160

$17.53

1

Gasket 0.7 mm

420431162

$23.49

1

Double Gasket 0.8 mm

420431163

$23.49

2

CYLINDER - Call your local BRP dealership

420413350

Unavailable

3

Exhaust Valve

420854650

$67.99

4

Gasket

420931542

$7.37

5

O-Ring

420430110

$4.44

6

Valve Housing

420854455

$74.49

7

Socket Head Screw M6 X 25

205062544

$1.15

8

Bellows

420260729

$38.99

9

Hose Spring This part replaces 420838253.

420838255

$7.41

10

Exhaust Valve This part replaces 290253257.

420854449

$35.99

11

Hose Spring This part replaces 420239048.

420939281

$7.41

12

Spring This part replaces 420239944.

420239954

$7.51

13

Valve Cover This part replaces 420911558.

420911559

$29.49

14

O-Ring

420430220

$8.26

15

Adjuster Screw

420241221

$14.22

16

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

$2.11

17

Hex. Collar Screw

420640524

$13.16

18

Hex. Collar Screw

420640534

$14.28

19

Rubber Ring

420931590

$6.19

20

O-Ring This part replaces 420850540.

293300026

$3.39

21

COMBUSTION CHAMBER INSERT - Call your local BRP dealership

420623358

Unavailable

22

O-Ring

420430373

$3.17

23

Cylinder Head Cover

420623545

$329.99

24

Hex. Screw M8 X 56.5

420941627

$8.57

25

Hose Nipple

420924724

$14.83

26

Gasket

420630815

$14.28

27

REED VALVE ASS'Y - Call your local BRP dealership

420924791

Unavailable

28

Intake Socket

420667500

$121.99

29

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

$2.11

30

Gasket

420850552

$8.85

31

Exhaust Manifold This part replaces 420673420.

420673421

$289.99

32

Gasket Set, Engine

420889931

$253.99

33

Gasket Set, Cylinder

420889936

$174.99

B

Loctite 243, 10 ml

293800060

$21.49

M

Molykote G-N, 50 g

420297433

$26.99

U

Sealing Compound Loctite 5366 310Ml

420297907

$54.99
