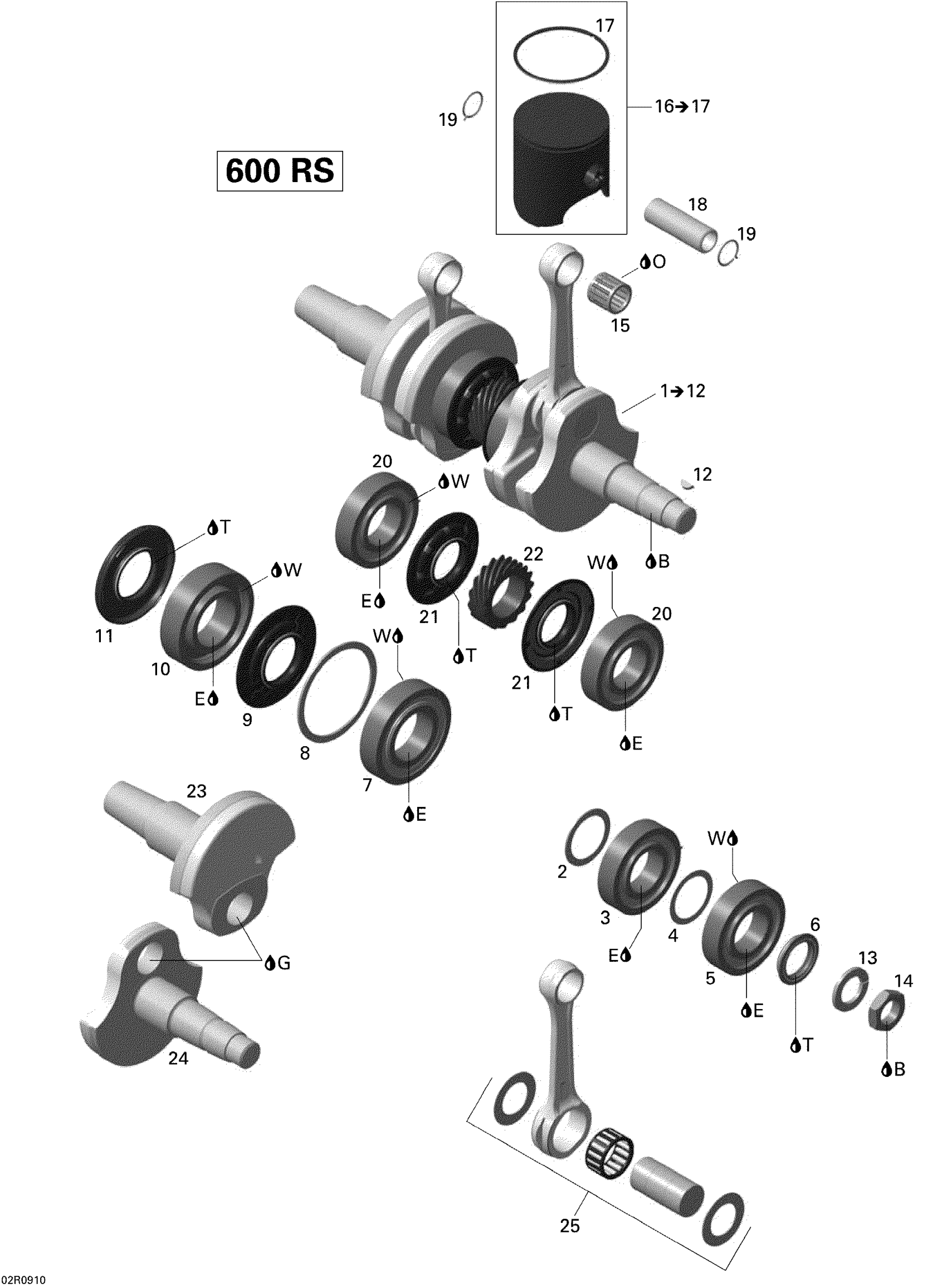

Ski-Doo MX Z X 600RS, 2009 01- Crankshaft And Pistons Diagram

#

Description
Price

1

CRANKSHAFT ASS'Y - Call your local BRP dealership | Includes 1 to 12

420891633

Unavailable

2

Shim

420827767

$16.86

3

Ball Bearing 6207 | With drive pin

420832575

$52.99

4

ADJUSTMENT WASHER - Call your local BRP dealership

420427502

Unavailable

5

Ball Bearing 6207 | With drive pin

420832575

$52.99

6

Oil Seal

420931795

$17.63

7

Ball Bearing 6208 | With drive pin

420832600

$79.49

8

Washer

420926190

$11.63

9

Oil Seal

420931910

$37.99

10

Ball Bearing This part replaces 420832603.

420832671

$104.99

11

Oil Seal | Included in gasket kit

420931284

$23.49

12

Woodruff Key

420246015

$3.17

13

Lock Washer, 22 mm

420945759

$1.90

14

Hex. Nut, M22 X 1.5

420842239

$17.53

15

Needle Bearing

420832445

$27.49

16

Piston Ass'y, 71.87 mm

420893303

$228.99

17

Semi-Trapez Ring

420815295

$63.99

18

Piston Pin

420916412

$30.99

19

Piston Circlip

420845106

$3.93

20

Ball Bearing 6207 | With drive pin

420832575

$52.99

21

Oil Seal

420931455

$35.99

22

CENTRAL GEAR - Call your local BRP dealership

420834355

Unavailable

23

CRANKSHAFT, PTO SIDE - Call your local BRP dealership

420818708

Unavailable

24

CRANKSHAFT, MAG SIDE - Call your local BRP dealership

420818739

Unavailable

25

Rod Repair Kit, PTO Side

420890958

$313.99

25

Rod Repair Kit, MAG Side

420890959

$313.99

B

Loctite 243, 10 ml

293800060

$21.49

E

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

G

Sealant Loctite 648

219703000

$45.99

O

Not Available As Spare Part - Friction Washer

Unavailable

T

Petamo Grease, GHY133N, 400 g

420899271

$67.99

W

Isoflex Grease, TOPAS NB52, 50 g

293550021

$56.99
