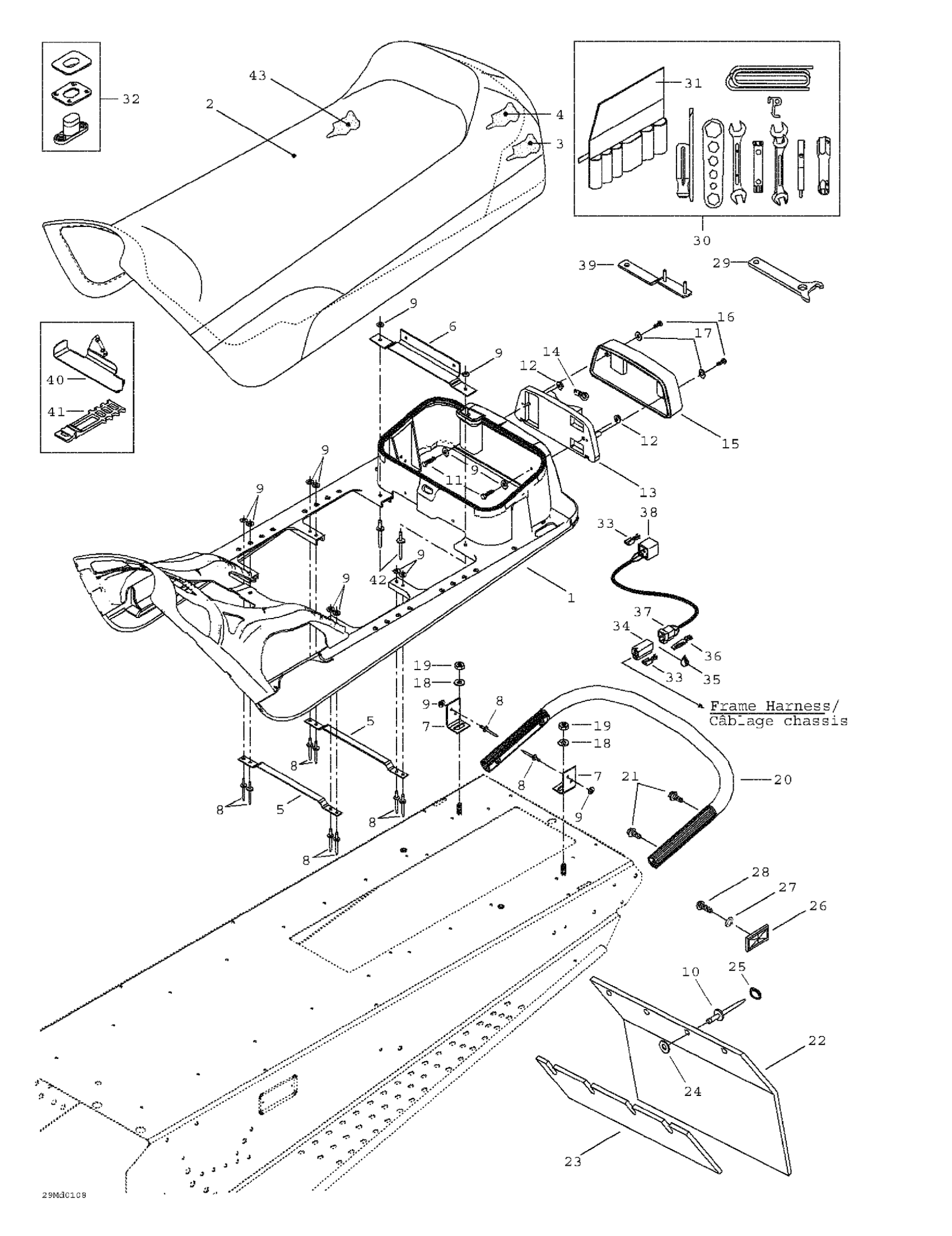

Ski-Doo MX Z X 440 LC, 2001 09- Seat And Accessories Diagram

#

Description
Price

1

Seat Base

510003633

Unavailable

2

Seat Cover

510003905

Unavailable

3

Seat Foam

510003940

Unavailable

4

Seat Foam

510003941

Unavailable

5

Front Reinforcement

510003630

Unavailable

6

Center Reinforcement

510003631

Unavailable

7

Reinforcement

510003632

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

WASHER - Call your local BRP dealership | MX Z X 600RS

517297900

Unavailable

10

Pop Rivet 3/16"

293150100

$1.09

11

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

12

Hex. Flange Elastic Nut M5

233251414

$1.04

13

LIGHT HOUSING - Call your local BRP dealership

510004061

Unavailable

14

Bulb

520000758

$9.10

15

Lens

414513700

$28.99

16

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

17

Washer - Call your local BRP dealership

414516400

Unavailable

18

Flat Washer 8 mm

234082410

$1.47

19

Hex. Elastic Stop Nut M8

232581414

$0.56

20

REAR BUMPER - Call your local BRP dealership

518322438

Unavailable

21

Hex. Flange Screw M8 X 20

207682044

$1.15

22

Snow Guard | ADRENALINE & TRAIL

572103803

Unavailable

23

REINFORCEMENT - Call your local BRP dealership

572108200

Unavailable

24

Flat Washer

517225900

$0.18

25

Cap

415073300

Unavailable

26

REFLECTOR, RED - Call your local BRP dealership

414510100

Unavailable

REFLECTOR, AMBER - Call your local BRP dealership

414510200

Unavailable

27

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership | Outlander T3

234451418

Unavailable

28

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

29

Adjustment Wrench

529000035

$2.09

30

Tool Kit | Includes 12 to 13

529035596

$27.99

31

Tool Bag

520000047

Unavailable

32

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable

33

Female Terminal

561503100

$2.41

34

Female Housing

409204300

Unavailable

35

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

36

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

37

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

38

Female Terminal Housing, 3 Circuits

515175250

Unavailable

39

Adjustment Wrench | LT

520000126

$1.49

40

Tool Kit Support

518321999

Unavailable

41

LATCH - Call your local BRP dealership

570069700

Unavailable

42

Not Available As Spare Part - Friction Washer

Unavailable

43

Seat Foam

510003933

Unavailable
