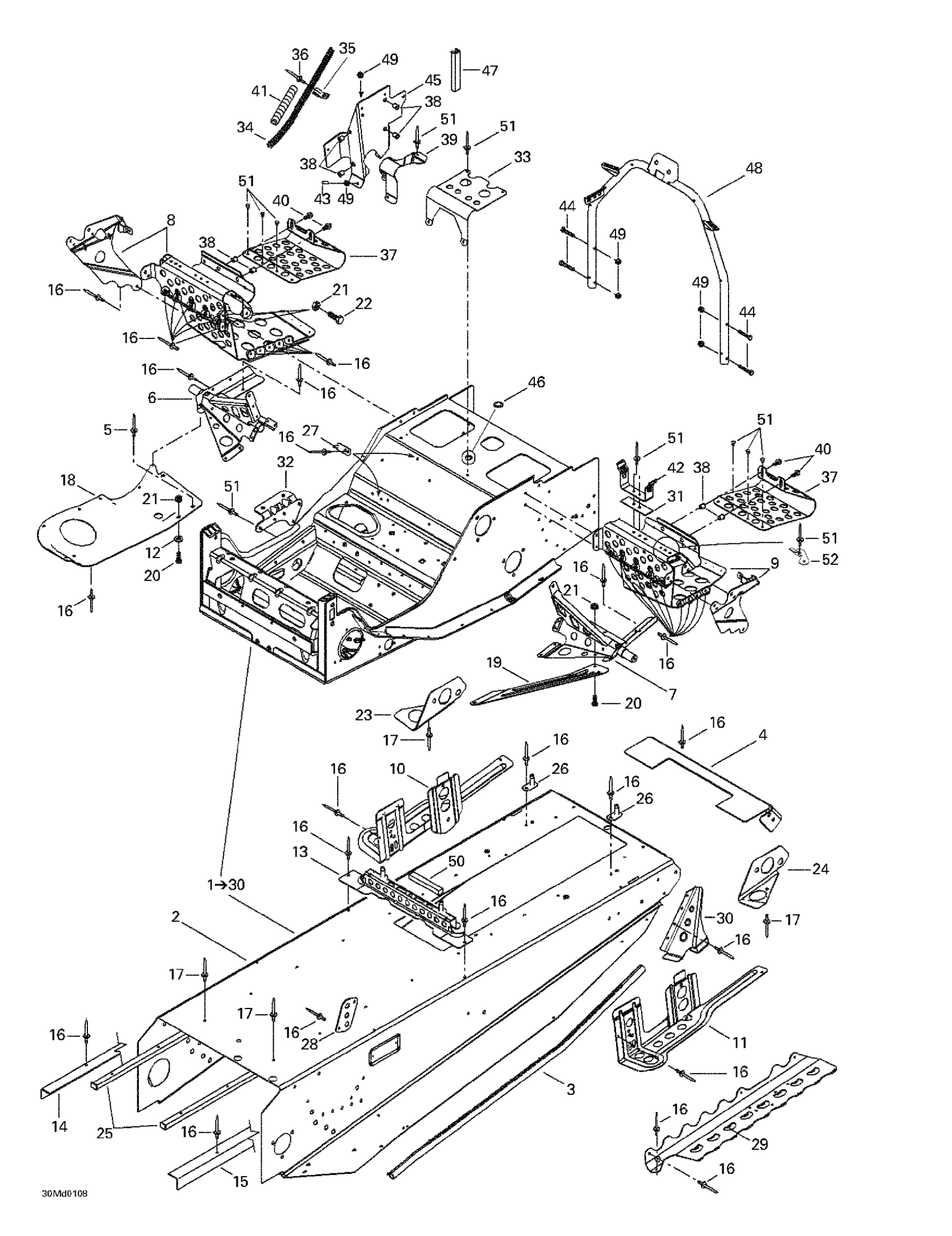

Ski-Doo MX Z X 440 LC, 2001 09- Frame And Accessories Diagram

#

Description
Price

1

Frame Ass'y | Includes 1 - 30. (RadiatorIncluded)

518322489

Unavailable

2

Tunnel

518322500

Unavailable

3

Footrest Reinforcement R.H

518322519

Unavailable

Footrest Reinforcement L.H

518322520

Unavailable

4

Rear Cap

518321620

Unavailable

5

Pop Rivet 3/16"

390402300

$0.75

6

RH Footrest Support

518322037

Unavailable

7

LH Footrest Support

518322040

Unavailable

8

RH Footrest Ass'y

518322058

Unavailable

9

LH Footrest Ass'y

518322062

Unavailable

10

RH Slide Bracket (SE, Europe) | Legend 600. Legend 800.

518322504

Unavailable

11

LH Slide Bracket (SE, Europe) | Legend 600. Legend 800.

518322508

Unavailable

12

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

13

Fuel Tank Bracket

518322512

Unavailable

14

RH Frame Reinforcement

518322517

Unavailable

15

LH Frame Reinforcement

518322518

Unavailable

16

Pop Rivet 3/16"

390402200

$0.35

17

Pop Rivet 3/16"

390402400

$0.35

18

RH Bottom Pan Plate | 600

518319760

Unavailable

19

LH REINFORCEMENT PLATE - Call your local BRP dealership

518322119

Unavailable

20

Hex. Screw M5 X 20

207152044

$0.90

21

Hex. Flange Elastic Nut M5

233251414

$1.04

22

Forming Screw M5 x 16

250000676

$1.01

23

RH Rear Reinforcement

518321472

Unavailable

24

LH Rear Reinforcement

518321473

Unavailable

25

Frame Protector

518322560

Unavailable

26

Guide

518319730

Unavailable

27

Double Bracket

518322391

Unavailable

28

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

29

RH Tunnel Liner

518322515

Unavailable

LH Tunnel Liner

518322516

Unavailable

30

Rear Footrest R.H

518322507

Unavailable

Rear Footrest L.H

518322511

Unavailable

31

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

32

Muffler Support | Formula DLX 500 F.

518206300

Unavailable

33

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

34

ROPE GUIDE - Call your local BRP dealership

518321569

Unavailable

35

Open Clamp

518321570

$7.69

36

Pop Rivet 3/16"

390406500

$0.88

37

Toe Hold

518321602

Unavailable

38

Insert

293450275

$12.99

39

Hose Support

518319762

Unavailable

40

Hex. Flange Screw M6 X 16

207661644

$0.74

41

Was 409901800 Tubing (13 mm)

219704400

$14.49

42

Belt Guard Bracket

518202100

$17.49

43

Short Cap

293000025

Unavailable

44

Hex. Flange Screw M6 X 35

207663544

$0.90

45

Electronic Module Support

518322054

Unavailable

46

CAP - Call your local BRP dealership

414859400

Unavailable

47

Was 271000110 Protection Trim

219704353

$15.99

48

Handle Support

518321957

Unavailable

49

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

50

Neoprene Seal (1PAC=3M)

219704364

$27.49

51

Pop Rivet 3/16"

390402200

$0.35

52

TOOL KIT BRACKET - Call your local BRP dealership

518322031

Unavailable
