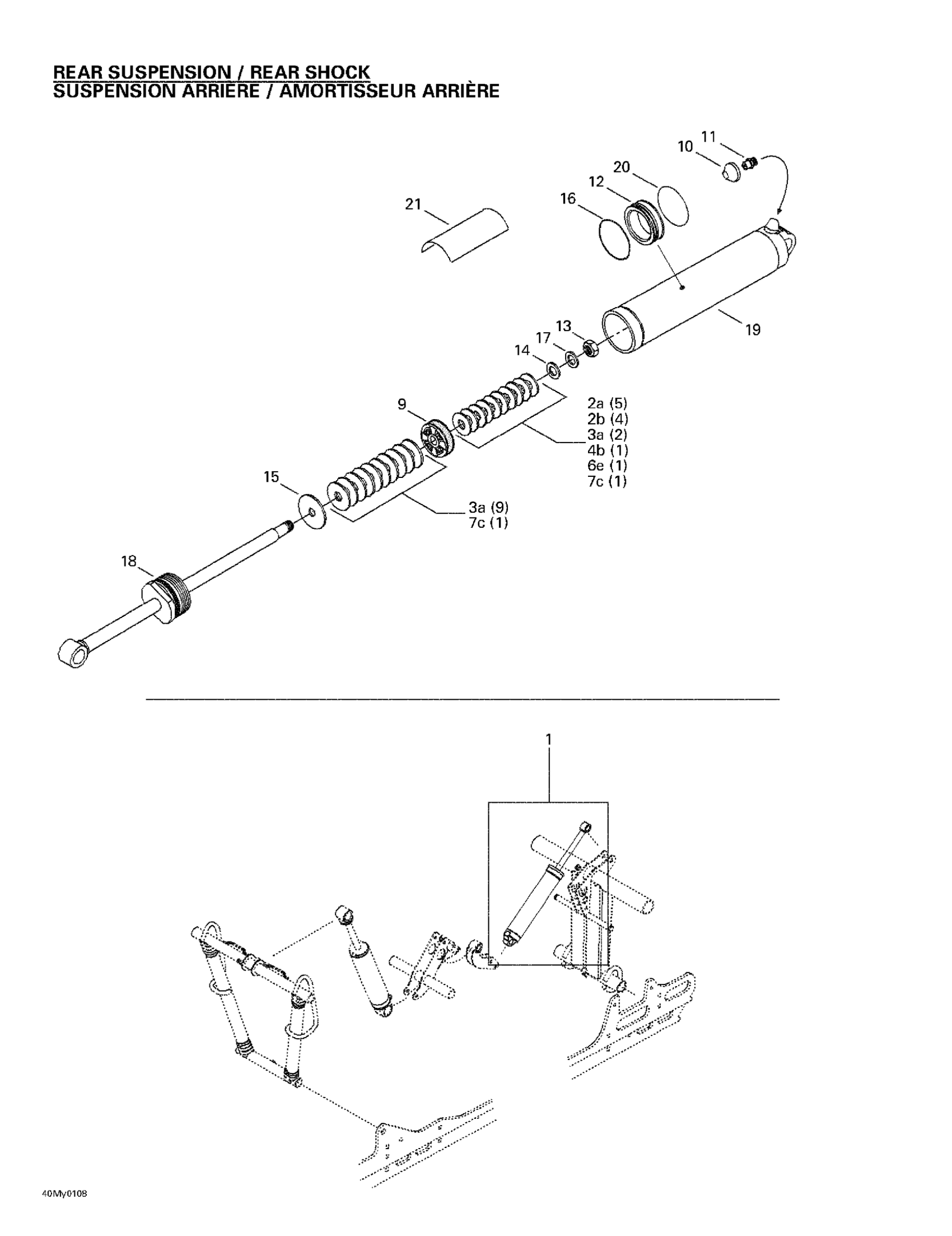

Ski-Doo MX Z X 440 LC, 2001 08- Rear Take Apart Shocks 2 Diagram
#
1
Rear Shock (EUROPE) | Europe.
503189280
Unavailable
2A
Leaf Valve Ø40 X 0.254 (C46)
503189041
Unavailable
2B
Leaf Valve Ø40 X 0.203 (C46)
503189040
Unavailable
2C
Leaf Valve Ø40 X 0.152 (C46)
503189039
Unavailable
3A
Leaf Valve Ø36 X 0.254 (C46)
503189038
Unavailable
3B
Leaf Valve Ø36 X 0.203 (C46)
503189037
Unavailable
3C
Leaf Valve Ø36 X 0.152 (C46)
503189036
Unavailable
4A
Leaf Valve Ø30 X 0.305 (C46)
503189035
Unavailable
4B
Leaf Valve Ø30 X 0.254 (C46)
503189034
Unavailable
4C
Leaf Valve Ø30 X 0.203 (C46)
503189033
Unavailable
4D
Leaf Valve Ø30 X 0.152 (C46)
503189032
Unavailable
4E
Leaf Valve Ø30 X 0.114 (C46)
503189031
Unavailable
5A
Leaf Valve Ø28 X 0.305 (C46)
503189030
Unavailable
5B
Leaf Valve Ø28 X 0.254 (C46)
503189029
Unavailable
5C
Leaf Valve Ø28 X 0.203 (C46)
503189028
Unavailable
5D
Leaf Valve Ø28 X 0.152 (C46)
503189027
Unavailable
5E
Leaf Valve Ø28 X 0.114 (C46)
503189026
Unavailable
6A
Leaf Valve Ø26 X 0.305 (C46)
503189025
Unavailable
6B
Leaf Valve Ø26 X 0.254 (C46)
503189024
Unavailable
6C
Leaf Valve Ø26 X 0.203 (C46)
503189023
Unavailable
6D
Leaf Valve Ø26 X 0.152 (C46)
503189022
Unavailable
6E
Leaf Valve Ø26 X 0.114 (C46)
503189021
Unavailable
7A
Leaf Valve Ø24 X 0.305 (C46)
503189020
Unavailable
7B
Leaf Valve Ø24 X 0.254 (C46)
503189019
Unavailable
7C
Leaf Valve Ø24 X 0.203 (C46)
503189018
Unavailable
7D
Leaf Valve Ø24 X 0.152 (C46)
503189017
Unavailable
7E
Leaf Valve Ø24 X 0.114 (C46)
503189016
Unavailable
8A
Leaf Valve Ø22 X 0.305 (C46)
503189015
Unavailable
8B
Leaf Valve Ø22 X 0.254 (C46)
503189014
Unavailable
8C
Leaf Valve Ø22 X 0.203 (C46)
503189013
Unavailable
8D
Leaf Valve Ø22 X 0.152 (C46)
503189012
Unavailable
8E
Leaf Valve Ø22 X 0.114 (C46)
503189011
Unavailable
9
Piston (C46)
503189004
Unavailable
Piston, Ø1.2 (C46)
503189003
Unavailable
Piston, Ø1.7 (C46)
503189002
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
10
Air Valve Cap | MX Z X 440.
503189307
Unavailable
11
AIR VALVE - Call your local BRP dealership
414888314
Unavailable
12
FLOTTING PISTON - Call your local BRP dealership
503189008
Unavailable
13
Not Available As Spare Part - Friction Washer
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
15
Not Available As Spare Part - Friction Washer
Unavailable
16
O-RING - Call your local BRP dealership
503189007
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
18
Not Available As Spare Part - Friction Washer
Unavailable
19
Not Available As Spare Part - Friction Washer
Unavailable
20
PISTON RING - Call your local BRP dealership
503189006
Unavailable
21
Shock Decal
516000183
Unavailable
