2001 Ski-Doo MX Z X 440 LC Driven Pulley Diagram

← All diagrams

Find the part on the Driven Pulley diagram for your 2001 Ski-Doo MX Z X 440 LC, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

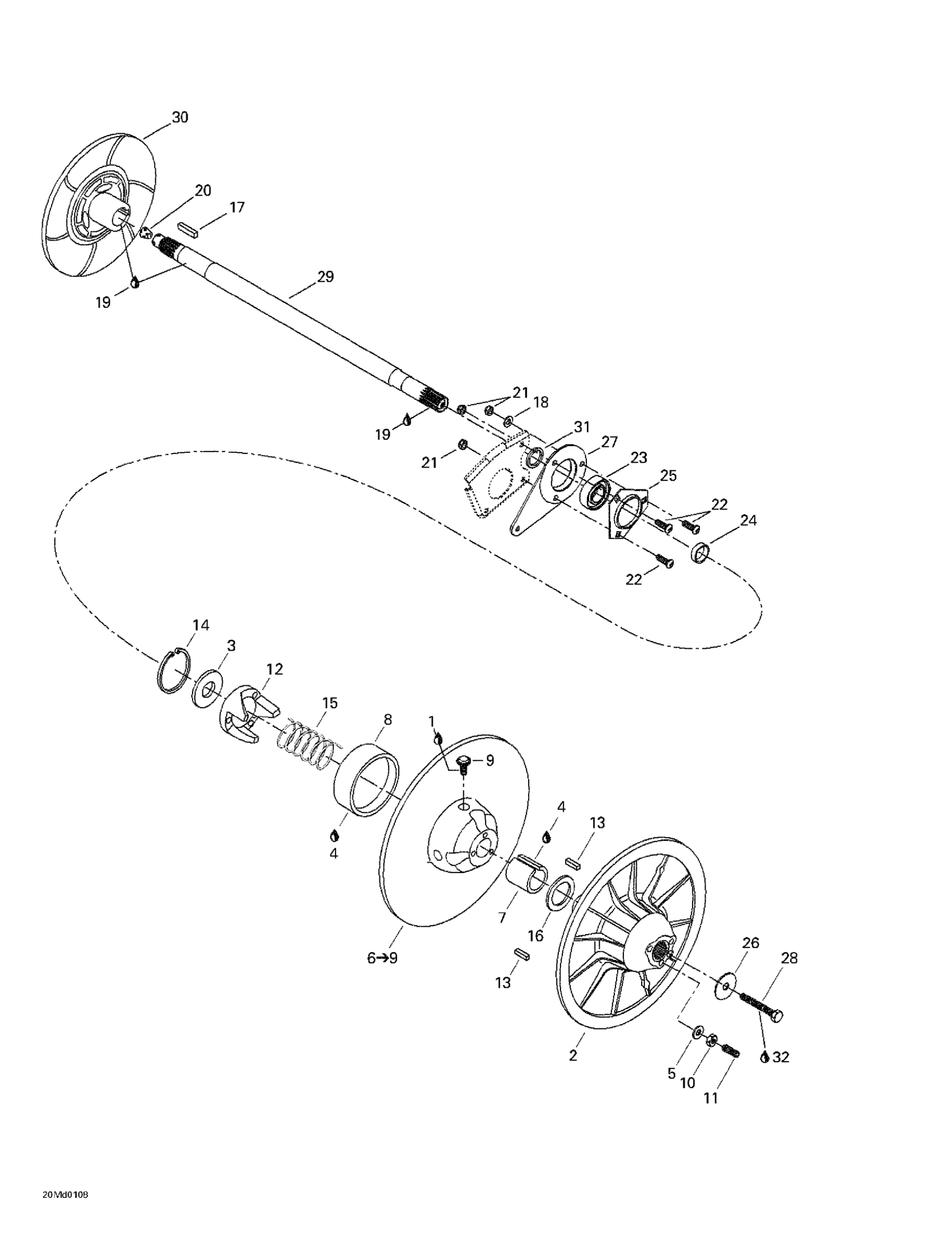

2001 Ski-Doo MX Z X 440 LC Driven Pulley Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Loctite 271, 10 ml

293800005

1

$20.77

In stock

2

Fixed Flange Ass'y

417126478

—
Out of stock

3

Washer

504141800

—
Out of stock

4

Loctite 609, 10 ml

413703100

1

$24.58

In stock

5

WASHER - Call your local BRP dealership

420245370

—
Out of stock

6

Sliding Flange Ass'y | Includes 6 - 9.

417126512

—
Out of stock

7

—

$20.74

In stock

8

Cushion

417126514

—
Out of stock

9

Roller

415114400

—
Out of stock

10

Hex. Nut M6

232061414

3
Out of stock

11

Socket Set Screw M6 X 30

206263044

—
Out of stock

12

Cam 44 Deg

417126391

—
Out of stock

13

Key

414820800

—
Out of stock

14

CIRCLIP - Call your local BRP dealership

371903100

—
Out of stock

15

RELEASE SPRING, BEIGE - Call your local BRP dealership | Beige

414558900

—
Out of stock

16

Thrust Washer

504141900

—
Out of stock

17

KEY - Call your local BRP dealership

507021300

—
Out of stock

18

Flat Washer 8 mm

234081410

1
Out of stock

19

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

—
Out of stock

20

—

$2.28

In stock

21

Hex. Elastic Stop Nut M8

232581414

3
Out of stock

23

1

$54.58

In stock

24

SPACER - Call your local BRP dealership

417126302

—
Out of stock

25

FLANGE - Call your local BRP dealership

501025000

—
Out of stock

26

Strength Washer

517302322

1
Out of stock

27

Spacer (Casting)

080044200

1
Out of stock

28

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

—
Out of stock

29

Countershaft

504151955

—
Out of stock

30

Brake Disk | X & Renegade X

507032301

—
Out of stock

31

Spacer

504149100

1
Out of stock

32

Loctite 243, 10 ml

293800060

1
Out of stock
