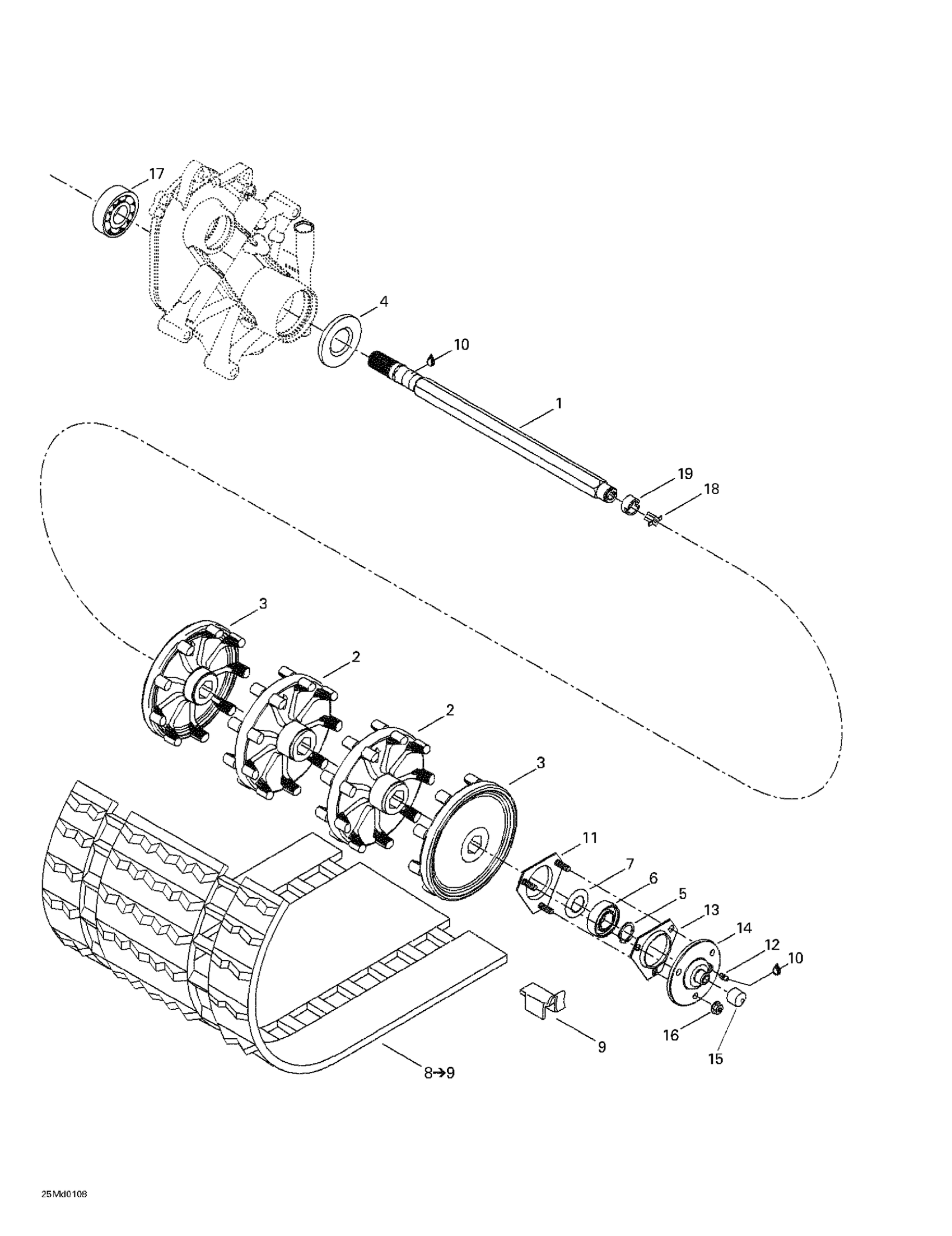

Ski-Doo MX Z X 440 LC, 2001 Drive Axle And Track Diagram

#

Description
Price

1

DRIVE AXLE - Call your local BRP dealership

504151792

Unavailable

2

9-Tooth Sprocket

504151803

Unavailable

3

9-Tooth Half Sprocket

504151834

Unavailable

4

Oil Seal Ass'y

504151918

Unavailable

5

CIRCLIP - Call your local BRP dealership

371910200

Unavailable

6

Ball Bearing

293350060

Unavailable

7

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

8

Chenille 15X121 *Track 15X121X1.25 Rip S | Includes 8 to 10 This part replaces 504152558.

C9968H

$760.00

9

Track Guide | Track Width 16''

415129528

$3.12

10

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

11

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

12

Grease Fitting

408200700

Unavailable

13

FLANGE - Call your local BRP dealership

501025000

Unavailable

14

Flange, Speedo Drive Insert

504151836

Unavailable

15

Cap

504151825

Unavailable

16

Hex. Flange Elastic Nut M8

233281414

Unavailable

17

Ball Bearing

504152005

Unavailable

18

SPEEDO DRIVE INSERT - Call your local BRP dealership

572010100

Unavailable

19

Adaptor

572097500

Unavailable
