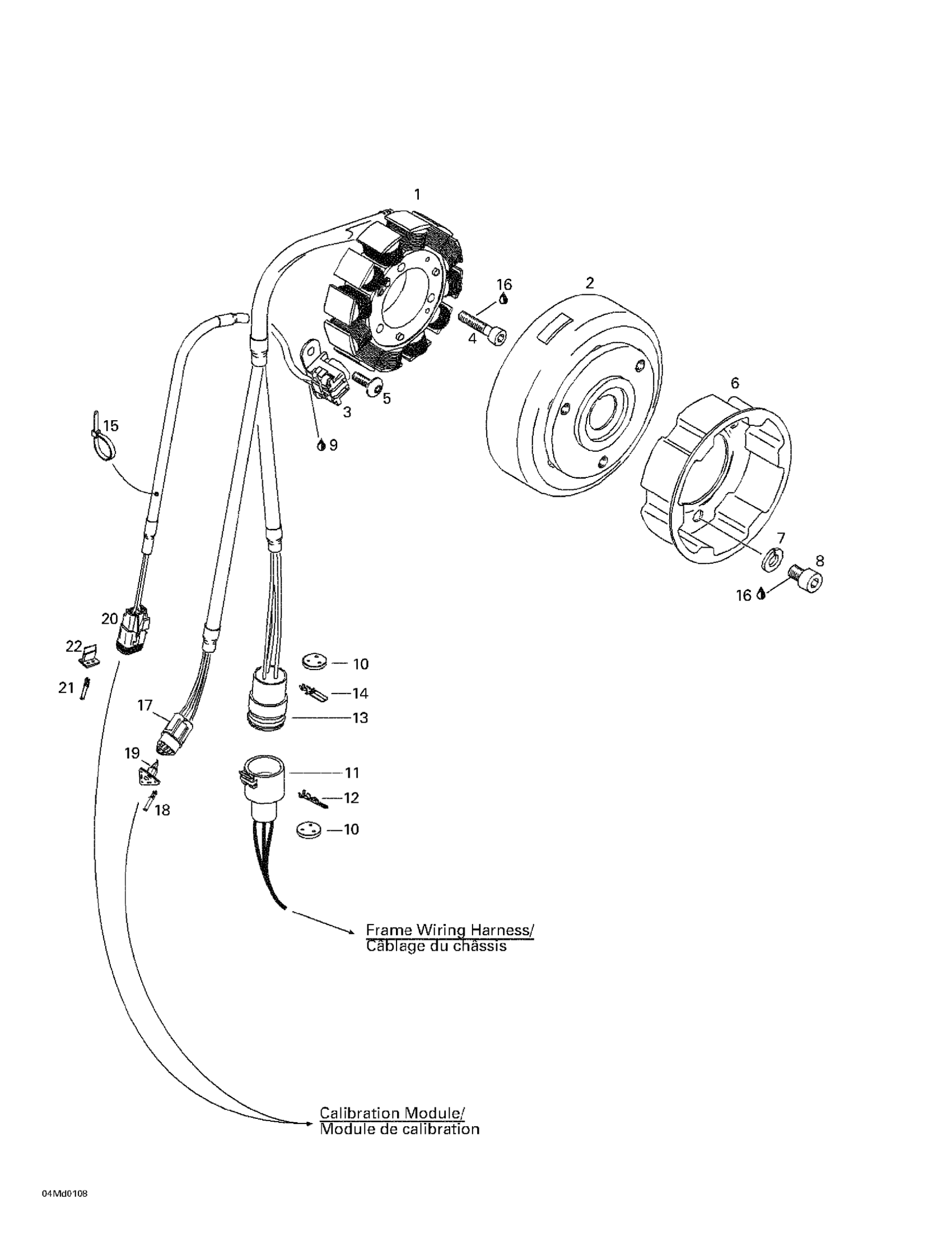

Ski-Doo MX Z X 440 LC, 2001 03- Magneto 12V 290W Diagram

#

Description
Price

1

Startor Plate Ass'y

410922931

Unavailable

2

Flywheel

410922926

Unavailable

3

Pickup Ass'y

410922925

Unavailable

4

SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.

420840887

Unavailable

5

Torx Screw M6 X 16

420640324

$2.11

6

Starting Pulley

420852590

$29.49

7

Washer-Lock Din.128

420945832

$1.15

8

Socket Head Screw M8 X 12

420841520

$1.69

9

Not Available As Spare Part - Friction Washer

Unavailable

10

SEAL - Call your local BRP dealership

409208500

Unavailable

11

MALE HOUSING - Call your local BRP dealership

409207900

Unavailable

12

MALE TERMINAL - Call your local BRP dealership

409011100

Unavailable

13

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409208200

Unavailable

14

FEMALE TERMINAL - Call your local BRP dealership

409011900

Unavailable

15

Tie Wrap 94 mm | 4X4

293750001

$1.03

16

Loctite 243, 10 ml

293800060

$21.49

17

Not Available As Spare Part - Friction Washer

Unavailable

18

FEMALE TERMINAL - Call your local BRP dealership

409015100

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Female Connector, 2 Circuits

409207300

$9.85

21

Female Terminal

278000632

$2.09

22

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable
